* Recommend suitable equipment according to customer requirement
* Tailor-made factory layout design. electriciy
- Product Details
- {{item.text}}
Quick Details
-
Ejector Force(kN):
-
25 kN
-
Theoretical Shot Volume(cm³):
-
64 cm³
-
Injection Rate (g/s):
-
40 g/s
-
Injection Weight (g):
-
47 g
-
Screw Speed (rpm):
-
1 - 200 rpm
-
Screw diameter (mm):
-
27 mm
-
Screw L/D Ratio:
-
20.7
-
Distance between Tie Bars:
-
260X240mm
-
Weight (KG):
-
1800 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
240 mm
-
Model Number:
-
HTY40
-
Brand Name:
-
TURN
-
Power (kW):
-
7 kW
-
Injection pressure:
-
207.5MPa
-
shot volume:
-
52cm3
-
Max pump pressure:
-
16Mpa
-
Max.screw speed:
-
200
-
Automatic:
-
Yes
-
Clamping Force (kN):
-
400 kN
-
Marketing Type:
-
Hot Product 2019
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
240mm
-
Distance between Tie Bars(Height)(mm):
-
260mm
-
Ejector Stroke(mm):
-
60 mm
-
Ejector Force(kN):
-
25 kN
-
Theoretical Shot Volume(cm³):
-
64 cm³
-
Injection Rate (g/s):
-
40 g/s
-
Injection Weight (g):
-
47 g
-
Screw Speed (rpm):
-
1 - 200 rpm
-
Screw diameter (mm):
-
27 mm
-
Screw L/D Ratio:
-
20.7
-
Distance between Tie Bars:
-
260X240mm
-
Weight (KG):
-
1800 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
240 mm
-
Model Number:
-
HTY40
-
Brand Name:
-
TURN
-
Power (kW):
-
7 kW
-
Injection pressure:
-
207.5MPa
-
shot volume:
-
52cm3
-
Max pump pressure:
-
16Mpa
-
Max.screw speed:
-
200
-
Automatic:
-
Yes
-
Clamping Force (kN):
-
400 kN
-
Marketing Type:
-
Hot Product 2019
Application
Product Parameters
|
|
INJECTION UNIT
|
Screw diameter
|
Injection weight(PS)
|
Clamping force
|
Open stroke
|
Space between tie-bars (WxH)
|
Mold height
|
Machine weight
|
|
|
|
mm
|
g
|
KN
|
mm
|
mm
|
mm
|
T
|
|
HTY30
|
A
|
19
|
20.6
|
320
|
155
|
255x220
|
80-260
|
1.1
|
|
|
B
|
23
|
27
|
|
|
|
|
|
|
|
C
|
25
|
34
|
|
|
|
|
|
|
HTY40
|
A
|
25
|
43
|
420
|
245
|
260x260
|
100-300
|
1.65
|
|
|
B
|
27
|
50
|
|
|
|
|
|
|
|
C
|
30
|
62
|
|
|
|
|
|
|
HTY50
|
A
|
25
|
51
|
520
|
270
|
300x300
|
100-340
|
2.2
|
|
|
B
|
28
|
64
|
|
|
|
|
|
|
|
C
|
32
|
84
|
|
|
|
|
|
|
HTY70
|
A
|
32
|
102
|
720
|
300
|
330x330
|
130-360
|
2.8
|
|
|
B
|
34
|
116
|
|
|
|
|
|
|
|
C
|
36
|
130
|
|
|
|
|
|
|
HTY90
|
A
|
32
|
105
|
920
|
330
|
370x370
|
150-400
|
3.4
|
|
|
B
|
35
|
126
|
|
|
|
|
|
|
|
C
|
38
|
149
|
|
|
|
|
|
|
HTY120
|
A
|
35
|
175
|
1200
|
350
|
410x410
|
150-450
|
3.6
|
|
|
B
|
38
|
206
|
|
|
|
|
|
|
|
C
|
42
|
252
|
|
|
|
|
|
|
HTY150
|
A
|
38
|
206
|
1500
|
400
|
430x430
|
160-480
|
4
|
|
|
B
|
42
|
252
|
|
|
|
|
|
|
|
C
|
45
|
289
|
|
|
|
|
|
|
HTY170
|
A
|
42
|
283
|
1700
|
435
|
480x480
|
180-535
|
6
|
|
|
B
|
45
|
325
|
|
|
|
|
|
|
|
C
|
50
|
402
|
|
|
|
|
|
Product Description

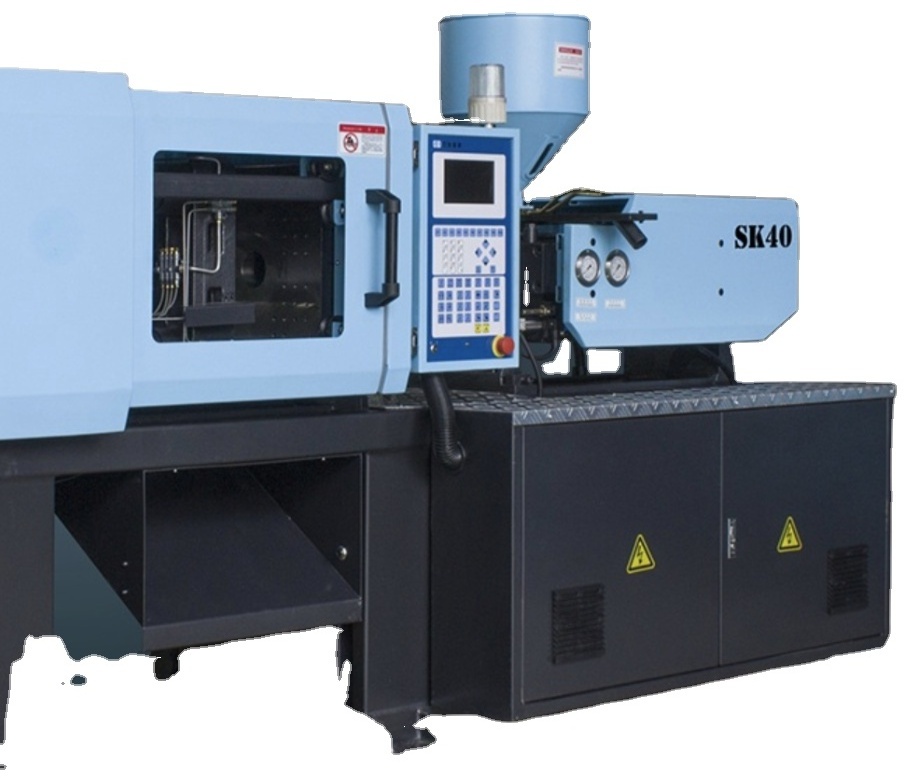

Features of Our Servo Injection Molding Machine
* Double cylinder balanced injection system; * Multi-stage pressure &speed injection;
* Back pressure adjustment device; * Low-pressure mould protection;
* Single hydraulic core pulling and inserting; * Multiple hydraulic ejector knock-out;
* Mechanical, electrical safety device; * Auto lubrication system;
* Hydraulic pressure full proportional control; * Computer control system;
* Molding data memory system; * Automatic mould adjust function;
* Energy-saving with servo motor;
* Back pressure adjustment device; * Low-pressure mould protection;
* Single hydraulic core pulling and inserting; * Multiple hydraulic ejector knock-out;
* Mechanical, electrical safety device; * Auto lubrication system;
* Hydraulic pressure full proportional control; * Computer control system;
* Molding data memory system; * Automatic mould adjust function;
* Energy-saving with servo motor;
Save The Cooling Water
No constant flow pump and speed set motor overflow heating.When the temperature of hydraulic oil is lower, the cooling wateris reduced greatly
Low Noise
The noise is below 78db. Servo motor has almost no noise when no movement of machine.
High Precision High Response
The pressure sensor and rotary encoder with high precision and high sensitvity achieve pressureflow closed-oop control allows the repeatprecision error to be less than 19%. lt only takes 0.05 second to reach the largest output power.
Our service
B. Sales
* Operation training courses at Turnfactory by well-trained technician
C. After-sales
* Engineer visit different countries regularly
* Sufficient spare parts in stock for fast response
