Professional CNC Router Wood Pcb Engraving Machine CNC 3018 MAX Cutting Machine With 500W Spindle

Professional CNC Router Wood Pcb Engraving Machine CNC 3018 MAX Cutting Machine With 500W Spindle

FOB Reference Price: Get Latest Price

≥1 Sets

US $107

≥20 Sets

US $97

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Spindle Motor Power(kW):: 775 spindle motor

Place of Origin:: Guangdong, China

Brand Name:: TWOTREES

Voltage:: 24V (110V -240V)

Dimension(L*W*H):: 420*355*280mm

Power (kW):: 3.2

Weight (KG):: 7.5

Product name:: CNC Wood Working Machine

controlling software:: GRBL control CNC TTC3018s

lead screw:: T8 screw

bed dimension:: 300x180x40mm

Power supply:: 24V(11V-240V)

Support system:: windows xp/win7/win8/ win10/linux

Applicable caring materials:: Wood+plastic+aluminum plate-brass+acrylic

Feature:: Coupling,double nuts for tolerance,no connecting parts

After-sales Service Provided:: Online support

Drill bits:: Diameter: 3.175mm, tip:0.1 mm, length:30mm

Quick Details

Working Table Size(mm):: 300X180

Machine Type:: CNC Router

Range of Spindle Speed(r.p.m):: 1 - 8000

Spindle Motor Power(kW):: 775 spindle motor

Place of Origin:: Guangdong, China

Brand Name:: TWOTREES

Voltage:: 24V (110V -240V)

Dimension(L*W*H):: 420*355*280mm

Power (kW):: 3.2

Weight (KG):: 7.5

Product name:: CNC Wood Working Machine

controlling software:: GRBL control CNC TTC3018s

lead screw:: T8 screw

bed dimension:: 300x180x40mm

Power supply:: 24V(11V-240V)

Support system:: windows xp/win7/win8/ win10/linux

Applicable caring materials:: Wood+plastic+aluminum plate-brass+acrylic

Feature:: Coupling,double nuts for tolerance,no connecting parts

After-sales Service Provided:: Online support

Drill bits:: Diameter: 3.175mm, tip:0.1 mm, length:30mm

Product Description

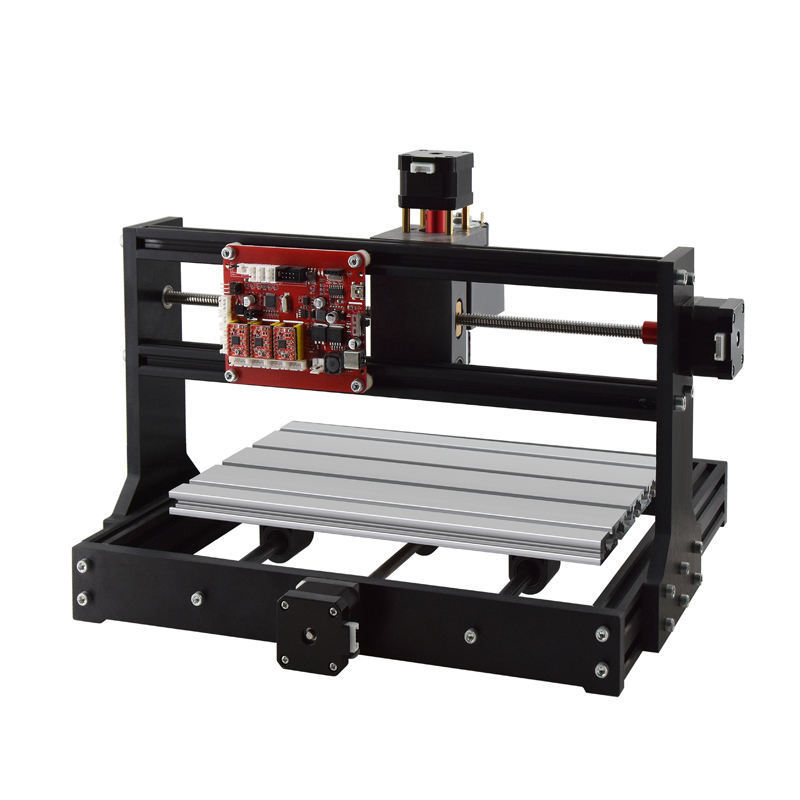

Twotrees CNC 3018-PRO Router Kit GRBL Control 3 Axis Plastic Acrylic PCB PVC Wood Carving Milling Engraving Machine, XYZ Working Area 300x180x45mm

CNC 3018 Pro	New Control Board -- Integrated Driver Chip + Fixed Heat Sink + External Fan + Sturdy Casing to extend the life of the control board, Self-contained short circuit protection, Not easy to damage. With an integrated mainboard and custom software, communication between the software and hardware is seamless by design.
Versatile	Capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, the Twotrees 3018-PRO can be used on a wide range of projects and materials.
Easy to Install	This CNC router kit comes with paper instruction, just follow the 8 steps to install.
Spindle	75 spindle motor (12-36V) 24V:10000r / min.
Supported System	Windows XP / Win 7 / Win 8 / Win 10
multi-purpose	Replaceable Drill bits, engraved metal; Replacing the laser head
