Quick Details
-
Description:
-
Safety beam sensor
-
Network:
-
GSM
-
Power supply:
-
12V to 24V DC
-
Beams:
-
one beam
-
Detection Distance:
-
20m
-
Dimension:
-
100*40*35mm
-
Response speed:
-
50-700m/sec
-
Wavelength:
-
940nm
-
Working Temperature:
-
-20~70℃
-
PCB Adjustable angle:
-
±90°
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Aiba
-
Model Number:
-
ABO-50
-
Description:
-
Safety beam sensor
-
Network:
-
GSM
-
Power supply:
-
12V to 24V DC
-
Beams:
-
one beam
-
Detection Distance:
-
20m
-
Dimension:
-
100*40*35mm
-
Response speed:
-
50-700m/sec
-
Wavelength:
-
940nm
-
Working Temperature:
-
-20~70℃
-
PCB Adjustable angle:
-
±90°
|

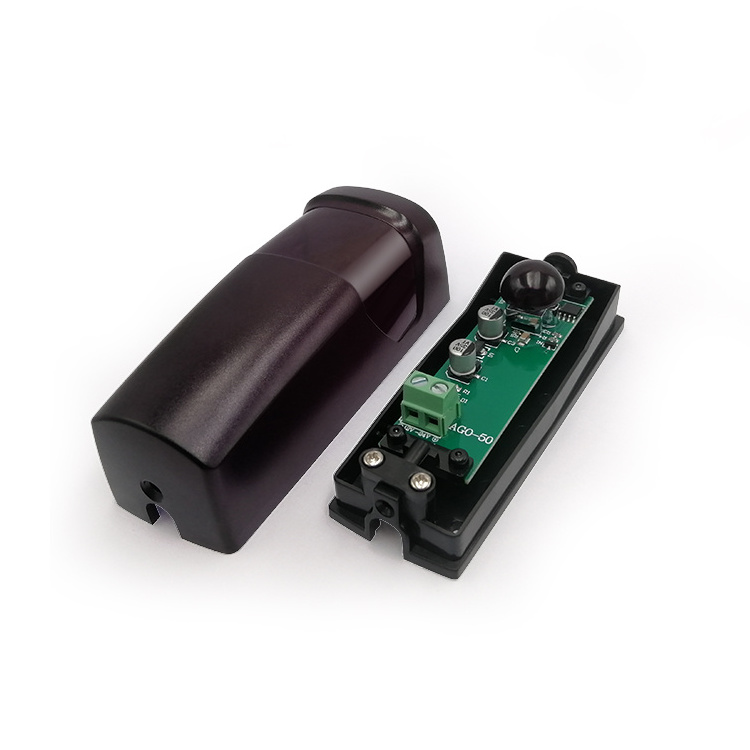

Specification for
Single Infrared Beam Sensor
|
|
|
|
Model Number
|
ABO-50
|
|
|
Working voltage
|
DC 12v-24v
|
|
|
Network
|
GSM
|
|
|
Detection Distance
|
20meter
|
|
|
Use
|
Home Security/Access Control System
|
|
|
Response speed
|
50-700m/sec
|
|
|
Dimension
|
100*40*35mm(L*W*H)
|
|
|
Transmitting frequency
|
1.92Khz
|
|
|
Working temperature
|
-20~70℃
|
|
|
Wavelength
|
940nm
|
|
|
Angle
|
PCB board can be rotated 360 degree
|
|
|
Waterproof grade
|
IP55
|
|
Product Description
Packing & Delivery
Standard packing :each one in a plastic bag or white box; 500 pieces in a carton, carton size is 40*29*24CM
