Threadless Pressure Plugs Pipe Plugs

Details of the Cooling circuit Plugs

1.Description of Cooling Circuit Plugs :

1). Features

Enables free layout of cooling water circulation routes.
Can be fixed on any place inside a cooling hole.

2). Specifications

*Although the usable temperature range for a fluoric rubber O-ring is -15°C~150°C, we recommend that the cooling circuit plug be used in a temperature below 80°C since its O-ring is deformed upon installation.

3). Cooling circuit plugs with black rubber can bear the temperature 80°C to 110°C

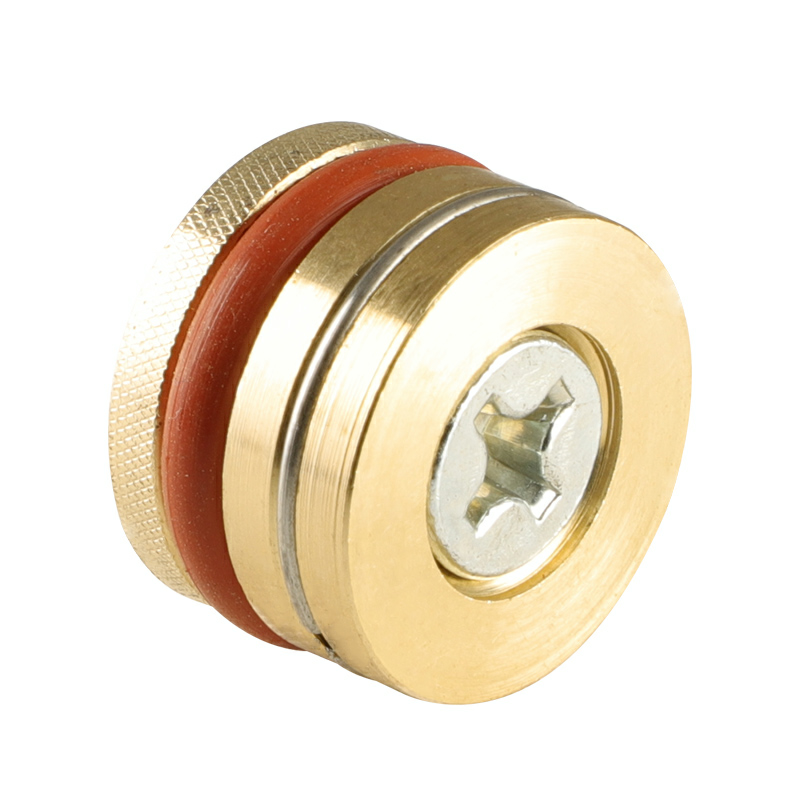

Cooling circuit plugs with red slica gel can bear the temperature 120 °C to 160 °C

Cooling circuit plugs with green fluoro rubber can bear the temperature 160 °C to 220 °C

4). Theory:

According to sloping method,the O-Ring and springs will enlarge to fit the cooling circuit plugs.

5). Pressure capacity:

8mm cooling circuit plugs for over 16kg/cm2

10mm cooling circuit plugs for over 17kg/cm2

12mm cooling circuit plugs for over 19kg/cm2

6). Specialty:

1 No tapping,no rust.

2 Can be adjusted for tightness

3 Can be placed at any water path and moved accordingly.

4 Can be cooling down or heating up by water or oil.

5 Under normal operating temperature:-5~+135°C.

6 Special operating temperature:-10~+280°C .

7). How to Use

As shown in the figure, insert a rod, etc. to stop the plug at the desired place, and fix it using a screw driver.
Fastening the screw makes the O-ring expand and deform, fixing the plug firmly inside the cooling hole.

The cooling circuit can be freely designed as shown below.

2.More pictures about our product:

3. Delivery:

Delivery time is usually 3-7days for products, specific time is according to quantity

We ship using express such as DHL, UPS, FEDEX etc. or according to customer's requirement. Our Shipping target is to dispatch the day following receipt of cleared payment.

Please allow 7 days to receive your order.
