Quick Details
-
Type:
-
Automatic transfer switch
-
Certificates:
-
IEC, CCC, CE
-
Feature:
-
Double complex Contact,Zero Arc,distinct on and off position
-
Pole:
-
3P,4P
-
Motor voltage:
-
110V/220V, 110V~257V
-
Max current:
-
16A~3200A
-
Operation type:
-
Auto&Manual, or Manual
-
Quality guarantee:
-
3Years
-
Change over time:
-
Less than 800A 1S/0.5S,800A-3200A 1.2S/2.4S
-
COC:
-
China, Automatic change-over switch
-
Whether the smart:
-
No
-
Certification:
-
CE
-
Max. Voltage:
-
690V
-
Max. Current:
-
3200A
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xianglang/OEM
-
Model Number:
-
XLQ2
-
Type:
-
Automatic transfer switch
-
Certificates:
-
IEC, CCC, CE
-
Feature:
-
Double complex Contact,Zero Arc,distinct on and off position
-
Pole:
-
3P,4P
-
Motor voltage:
-
110V/220V, 110V~257V
-
Max current:
-
16A~3200A
-
Operation type:
-
Auto&Manual, or Manual
-
Quality guarantee:
-
3Years
-
Change over time:
-
Less than 800A 1S/0.5S,800A-3200A 1.2S/2.4S
-
COC:
-
China, Automatic change-over switch
-
Whether the smart:
-
No
-
Certification:
-
CE
-
Max. Voltage:
-
690V
-
Max. Current:
-
3200A
IEC, CCC, CE 3P 4P up to 3200A 3 phase dual power Automatic Transfer Switch
1. IEC, CCC, CE 3P 4P up to 3200A 3 phase dual power Automatic Transfer Switch Application
|
(1)XQ5 series Automatic transfer switch mainly used for distribution or electromotor network, which under voltage 380V, rated voltage AC220V, Rated current 16A-3200A.
(2)Main power and standby power or mutual standby power change over system or city power and generator group overload switch-over. At the same time, it can operated under un-frequency on and off circuit act as disconnector.
(3)Widely used at the field of important power supply site, which transport, distribution power supply system and automatization system. For fire protection,hospital,bank,building, etc, where doesn't allow power off. |

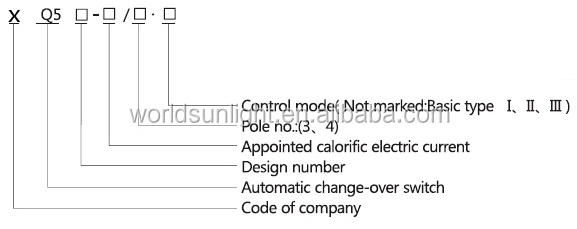

2. IEC, CCC, CE 3P 4P up to 3200A 3 phase dual power Automatic Transfer Switch Type&meaning
|
3. IEC, CCC, CE 3P 4P up to 3200A 3 phase dual power Automatic Transfer Switch main technical parameters
XQ5 100A-1600A

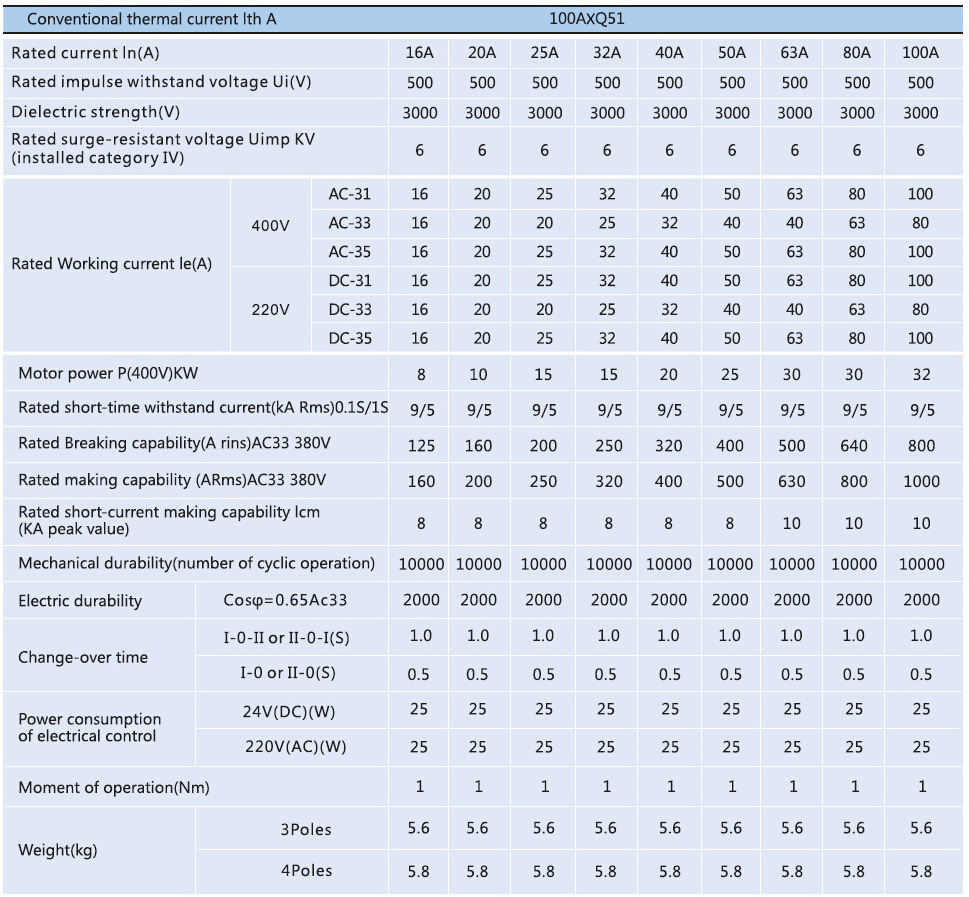

XQ5 100A-1600A Series automatic change-over switch electrical properties and mechanical properties
|
|
XQ5 800A-3200A Basic type Series automatic change-over switch electrical properties and mechanical properties
|
4. IEC, CCC, CE 3P 4P up to 3200A 3 phase dual power Automatic Transfer Switch Performance and Characteristic
| 1, Double complex contact, horizontal and vertical type frame basically, it have come to "Zero" arc(no arc chute); |
| 2, Reliable machine interlock and elecric interlock, the executive union parts adopt independency overload disconnect switch, it makes more reliable and safety. |
| 3, "zero" techinique, can force to set"zero" under emergency situation(break off two ways power supply at the same time).Meet the requirement of the fire protection linkage. |
| 4, Operate overload disconnect switch change over adopt singless electromotor drive, switch over smooth and reliable, no noise, little wallop |
| 5, Operate machine drive motor use only under the executive overload disconnect switch change over instanecus current across, outstanding energy saying. |
|
6, Perform overload disconnect switch with mechanism interlock device. It ensure the common use, standby power working reliable and not interference. |
|
7, Distinct on and off position indicator, padlock function et.c safe realize the isolator between electric power and overload |
| 8, High security, high automatization, high retiablility, use life more than 8000times |
5. IEC, CCC, CE 3P 4P up to 3200A 3 phase dual power Automatic Transfer Switch Pictures
click the pictures to view more details
6. IEC, CCC, CE 3P 4P up to 3200A 3 phase dual power Automatic Transfer Switch Connection Chart
7. IEC, CCC, CE 3P 4P up to 3200A 3 phase dual power Automatic Transfer Switch Control and Operation
8. IEC, CCC, CE 3P 4P up to 3200A 3 phase dual power Automatic Transfer Switch Factory pictures and testing
9. IEC, CCC, CE 3P 4P up to 3200A 3 phase dual power Automatic Transfer Switch Packing
10. IEC, CCC, CE 3P 4P up to 3200A 3 phase dual power Automatic Transfer Switch Shipping
11. IEC, CCC, CE 3P 4P up to 3200A 3 phase dual power Automatic Transfer Switch After sale services
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided to you upon
receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit to our company and technology communication.
