- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OTS
-
Model Number:
-
XB-OTS-507A
-
Product name:
-

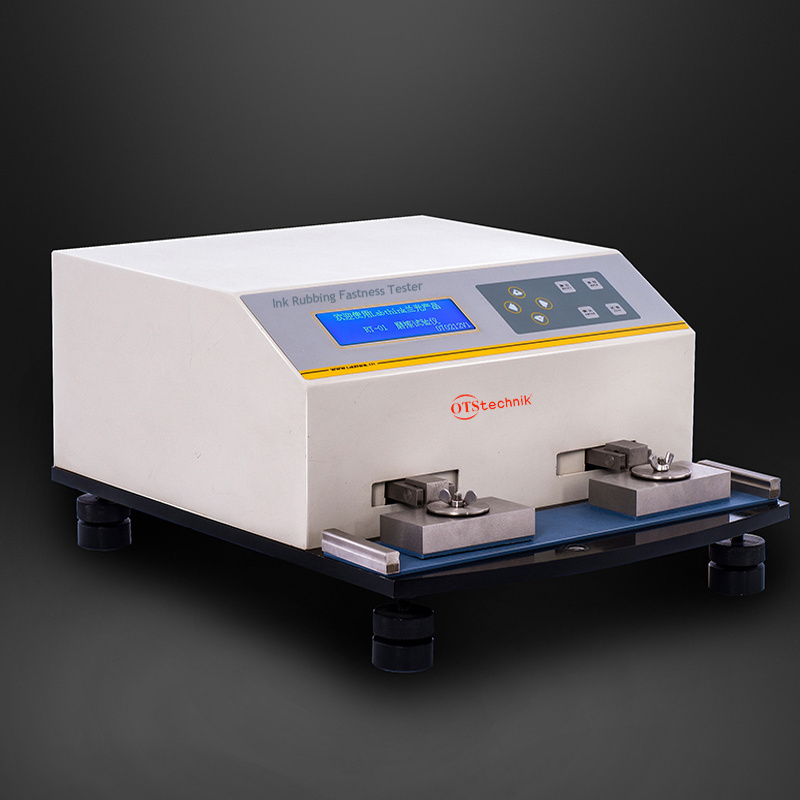

Ink Rubbing Fastness Tester
-
Operation mode:
-
LCD display
-
Test piece area:
-
Size 80x220mm
-
Number of stations:
-
Double station
-
Friction speed:
-
four adjustable speeds (21/42/85/106) r/min
-
Friction load:
-
2LB, 4LB
Quick Details
-
Warranty:
-
14 Month
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OTS
-
Model Number:
-
XB-OTS-507A
-
Product name:
-
Ink Rubbing Fastness Tester
-
Operation mode:
-
LCD display
-
Test piece area:
-
Size 80x220mm
-
Number of stations:
-
Double station
-
Friction speed:
-
four adjustable speeds (21/42/85/106) r/min
-
Friction load:
-
2LB, 4LB
Product Description
Product Description
Ink printing decolorization test machine is used to test the abrasion resistance of the ink layer of printed matter. Wrap the dry or wet standard friction paper on the friction hammer, rub the surface of the sample reciprocally with the specified pressure, friction stroke and speed, to determine the pollution level of the friction paper, and the degree of fluff or wear on the surface of the sample.
Design Criteria:
ASTM D5264-98 TAPPI T830
Specification
|
The friction block reciprocates in an arc
|
the stroke is about 55mm (displacement of the center of the friction body)
|
|
Operation mode
|
LCD display
|
|
Test piece area
|
Size 80x220mm
|
|
Test piece area
|
Double station
|
|
Friction speed
|
four adjustable speeds (21/42/85/106) r/min
|
|
Friction speed
|
2LB, 4LB
|
|
Friction stroke
|
55mm (displacement of friction body center)
|
|
Number of times setting
|
Number of times setting
|
|
Number of times setting
|
40W
|
|
Machine size
|
400x310x300mm WxDxH
|
|
Machine weight
|
50kg
|
|
Voltage
|
AC 220V 50/60HZ 1A
|
More Reliable
：
Global safety design, use our chambers safely and with peace of mind for many years to come.
We deliver chambers that conform to international safety standards.Our chambers conform to ISO risk assessment as well as global safety design electrical safety standards such as CE marking and EMC directive.
Packing & Delivery
Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
