Quick Details
-
Working Voltage:
-
220V/380V/110V/12V/24V
-
Flow Rate:
-
50L/min, 60L/min, 80L/min, 120L/min, 150-200L/min
-
Warranty:
-
1 year
-
Certificate:
-
OIML, CE, ATEX, SIRA, COC, SONCAP, SASO, NRCS, CMC
-
Product Name:
-

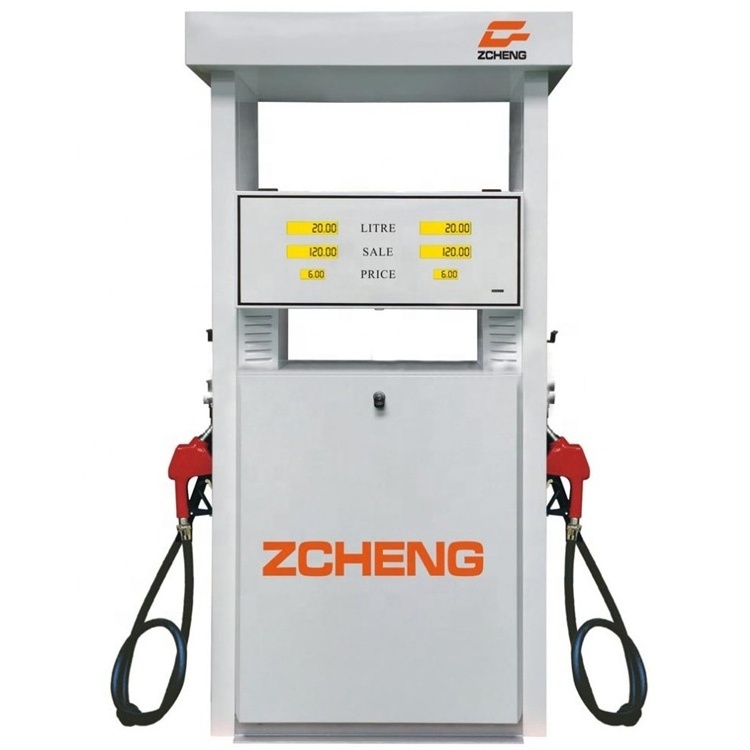

Fuel Dispenser
-
Medium:
-
Petrol, Gasoline, Kerosene, Diesel, Lpg, Adblue
-
Pump:
-
Vane Pump, Gear Pump, Submersible Pump, Suction Pump
-
Flow Meter:
-
Benett, Tokheim, Tatsuno, Gilbarco, Wayne
-
Voltage For Motor:
-
220V/380V/110V/12V/24V
-
Nozzle:
-
OPW, ZVA, TATSUNO, HUSKY, HEALY, Automatic Shut-Off
-
Pos System/Protocol:
-
Tatsuno, Gaskit, IFSF, ITL Integrated, Zcheng
-
Display:
-
LCD(664), LCD(885), Mechanical
-
Hose Number:
-
1,2,3,4,6,8
-
Color:
-
Optional
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZCHENG
-
Model Number:
-
GRAND SERIES
-
Working Voltage:
-
220V/380V/110V/12V/24V
-
Flow Rate:
-
50L/min, 60L/min, 80L/min, 120L/min, 150-200L/min
-
Warranty:
-
1 year
-
Certificate:
-
OIML, CE, ATEX, SIRA, COC, SONCAP, SASO, NRCS, CMC
-
Product Name:
-
Fuel Dispenser
-
Medium:
-
Petrol, Gasoline, Kerosene, Diesel, Lpg, Adblue
-
Pump:
-
Vane Pump, Gear Pump, Submersible Pump, Suction Pump
-
Flow Meter:
-
Benett, Tokheim, Tatsuno, Gilbarco, Wayne
-
Voltage For Motor:
-
220V/380V/110V/12V/24V
-
Nozzle:
-
OPW, ZVA, TATSUNO, HUSKY, HEALY, Automatic Shut-Off
-
Pos System/Protocol:
-
Tatsuno, Gaskit, IFSF, ITL Integrated, Zcheng
-
Display:
-
LCD(664), LCD(885), Mechanical
-
Hose Number:
-
1,2,3,4,6,8
-
Color:
-
Optional
♦ Model of ZCHENG Fuel Dispenser
| model | product | motor | pump | flow meter | nozzle | remark |
| ZC-11111 | 1 | 1 | 1 | 1 | 1 | |
| ZC-11112 | 1 | 1 | 1 | 1 | 2 | alternative |
| ZC-11122 | 1 | 1 | 1 | 2 | 2 | |
| ZC-22222 | 2 | 2 | 2 | 2 | 2 | |
| ZC-22224 | 2 | 2 | 2 | 2 | 4 | alternative |
| ZC-22244 | 2 | 2 | 2 | 4 | 4 | |
| ZC-33336 | 3 | 3 | 3 | 3 | 6 | alternative |
| ZC-33366 | 3 | 3 | 3 | 6 | 6 | |
| ZC-44448 | 4 | 4 | 4 | 4 | 8 | alternative |
| ZC-44488 | 4 | 4 | 4 | 8 | 8 |
Product means different fuel such as petrol, diesel and kerosene.
Alternative means nozzles of same product can't work at the same time.
|
Technical parameter |
|
|
Ambient temperature |
-25°C~ +55°C |
|
Humidity |
≤90% |
|
Flow rate |
5~60L/min or 5~90L/min |
|
nozzle |
Auto shut-off |
|
Suction distance |
6m(Vertical), 50m(horizontal) |
|
Accuracy |
±0.30% |
|
Repeating tolerance |
≤0.15% |
|
Hose |
3m(low hang), 4.5m(high hang) |
|
Inlet pressure |
≥54kPa |
|
Outlet pressure |
≤0.3MPa |
|
Voltage |
110V/220V/380V (50/60Hz) |
|
Power |
1HP(0.75kw) |
|
Noise |
≤80dB(A class) |
|
Unit price range |
0.01~999.99 |
|
single volume range |
0.01~999999.99 |
|
accumulative volume range |
0.01~9999999999.99 |
|
Explosion-proof signal |
ExdmbIIAT3 |
