Quick Details
-
Oiled or Non-oiled:
-
Non-oiled
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Shanghai, China
-
Thickness:
-
0.205 - 0.635 inch
-
Grade:
-
J55\K55\H40\N80\L80\P110\Q125
-
API 5CT Oil Tube:
-
Oil Casing Tube
-
Seamless Carbon Steel:
-
Oil Tube
-
seamless carbon steel pipe:
-
oil field
-
Material:
-
J55\K55\H40\N80\L80\P110\Q125
-
Connection::
-
Casing LTC, STC, BTC, VAM. Tubing NUE, EUE
-
Length:
-
R1, R2, R3
-
End:
-
Beveled, Square cut
-
Type:
-
Seamless Steel Pipe
Quick Details
-
Section Shape:
-
Round
-
Surface Treatment:
-
oil casing
-
Tolerance:
-
±10%
-
Oiled or Non-oiled:
-
Non-oiled
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Shanghai, China
-
Thickness:
-
0.205 - 0.635 inch
-
Grade:
-
J55\K55\H40\N80\L80\P110\Q125
-
API 5CT Oil Tube:
-
Oil Casing Tube
-
Seamless Carbon Steel:
-
Oil Tube
-
seamless carbon steel pipe:
-
oil field
-
Material:
-
J55\K55\H40\N80\L80\P110\Q125
-
Connection::
-
Casing LTC, STC, BTC, VAM. Tubing NUE, EUE
-
Length:
-
R1, R2, R3
-
End:
-
Beveled, Square cut
-
Type:
-
Seamless Steel Pipe

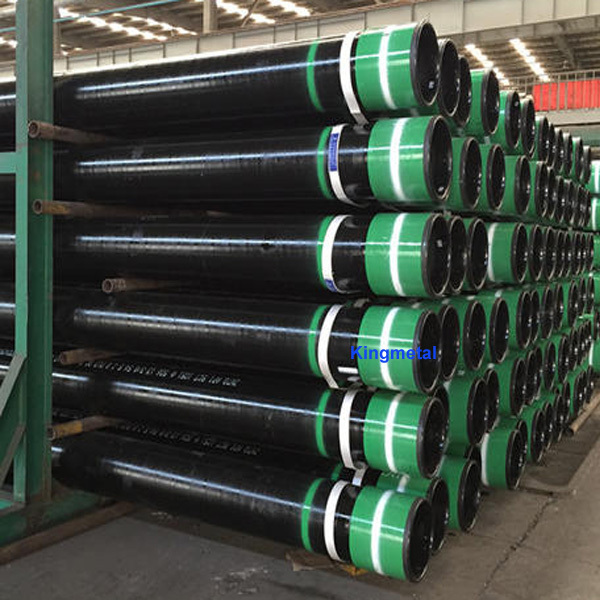

API 5CT H40/J55/K55/N80/L80/P110/Q125 Casing Pipe with LTC\ STC\BTC\VAM\NUE\EUE ...
1. Quality Standard SY/T 6194: Petroleum and natural gas industries Steel pipes for use as casing or tubing for wells API 5CT: CASING AND TUBING BS EN ISO 11960: Petroleum and natural gas industries Steel pipes for use as casing or tubing for wells NF M87-207: Petroleum and natural gas industries Steel pipes for use as casing or tubing for wells JIS G3439: SEAMLESS STEEL OIL WELL CASING, TUBING AND DRILL PIPE IS 4270: Steel tubes for well spainend casing pipes ,,,
2. Steel Grade: H40, J55, K55, N80, M65, L80, L8013CR, C90, C95, T95, P110, Q125, V150
3. Process: ERW and Seamless .
4. Size Outer Diameter: Casing OD 4 1/2"- 20" (114.3mm-508mm) Tubing OD 2 3/8" - 4 1/2" (60.3mm-114.30mm) Wall Thickness: 0.205"- 0.635" 0.205"- 0.635" Length: R1(4.88mtr-7.62mtr), R2(7.62mtr-10.36mtr), R3(10.36mtr or longer)
5. Connection: Casing LTC, STC, BTC, VAM. Tubing NUE, EUE
6. End: Beveled, Square cut. And pipe protection cap specially for casing and tubing.
7. Surface: Corrosion proofing water based paint
|
API 5CT Oil Casing Pipe |
|
||||||
|
Outer Diameter |
weight |
Grade |
Thread |
Length |
|
||
|
in |
mm |
kg/m |
lb/ft |
|
|||
|
4 1/2" |
114.3 |
14.14-22.47 |
9.50-15.10 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
|
|
|||||||
|
5" |
127 |
17.11-35.86 |
11.50-24.10 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
|
|
|||||||
|
5 1/2" |
139.7 |
20.83-34.23 |
14.00-23.00 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
|
|
|||||||
|
6 5/8" |
168.28 |
29.76-35.72 |
20.00-24.00 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
|
|
|||||||
|
7" |
177.8 |
25.30-56.55 |
17.00-38.00 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
|
|
|||||||
|
7 5/8" |
193.68 |
35.72-63.69 |
24.00-42.80 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
|
|
|||||||
|
8 5/8" |
219.08 |
35.72-72.92 |
24.00-49.00 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
|
|
|||||||
|
9 5/8" |
244.48 |
48.07-86.91 |
32.30-58.40 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
|
|
|||||||
|
10 3/4" |
273.05 |
48.73-97.77 |
32.75-65.70 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
|
|
|||||||
|
11 3/4" |
298.45 |
62.50-89.29 |
42.00-60.00 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
|
|
|||||||
|
13 3/8" |
339.72 |
71.43-107.15 |
48.00-72.00 |
J55/N80/P110/K55 |
LTC/STC/BTC |
R1/R2/R3 |
|
| Product | Welding ,Seamless Oil Casing Tube |
| Grade | H40, J55, K55, N80, M65, L80, L8013CR, C90, C95, T95, P110, Q125, V150 |
| Surface Finish | Corrosion proofing water based paint |
| Technique | Hot rolled / cold rolled |
| Certification | ISO |
| Standard | SY/T 6194 |
| Outer Diameter | Casing OD 4 1/2" - 20" (114.3mm-508mm) |
| Tubing OD | 2 3/8" - 4 1/2" (60.3mm-114.30mm) |
| Wall Thickness | 0.205" - 0.635" |
| Supply Ability | 3500mt Per Month |
| Minimum Order Quantity | 2t |
| Type | welded |
| Length | R1(4.88mtr-7.62mtr), R2(7.62mtr-10.36mtr), R3(10.36mtr or longer) |
| Application | Foodstuff, gas, metallurgy, biology, electron, chemical, petroleum, boiler, nuclear energy Medical equipment, fertilizer, etc. |
| Origin | CHINA |
| Port | Tianjin Port |
| HS Code | 7219900000 |
| Shippment Terms | FOB CIF CFR |
| Acid and Corrosion Resistance | High-strength steel |
| Packaging Detail | Standard Export Seaworthy Packag |
| Delivery Detail | 0~30days after order |
| Samples | Free(postage payed by the buyer) |
| Payment Terms | T/T L/C |
| NOTE | Please feel free to contact us, we will do our best to providing best value products and services of the highest quality to you |
