Quick Details
-
Voltage:
-
380V 50HZ
-
Power:
-
155KW
-
Dimension(L*W*H):
-
25000m*25000mm*6000mm;
-
Weight:
-
18T
-
Name:
-
pulp tableware plate food packages machine line
-
Raw material:
-
pulp board/reed pulp/wood pulp etc
-
Material consumption:
-
85kg/h
-
Water consumption:
-
260kg/h
-
Robot arm:
-
6-axis robot/4-axis robot
-
Machine type:
-
Automatic Paper Food Container Machine
-
Recycle pump:
-
ISW model horizontal centrifugal pump
-
Forming machine:
-
Forming Unit/Drying &Hot-press unit/Edge Cutting Unit
-
Pneumatic angle seat valve:
-
DN80*1set/DN40*4sets/DN25*6sets/DN15*4set
Quick Details
-
Production Capacity:
-
150 pcs/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONGRUN
-
Voltage:
-
380V 50HZ
-
Power:
-
155KW
-
Dimension(L*W*H):
-
25000m*25000mm*6000mm;
-
Weight:
-
18T
-
Name:
-
pulp tableware plate food packages machine line
-
Raw material:
-
pulp board/reed pulp/wood pulp etc
-
Material consumption:
-
85kg/h
-
Water consumption:
-
260kg/h
-
Robot arm:
-
6-axis robot/4-axis robot
-
Machine type:
-
Automatic Paper Food Container Machine
-
Recycle pump:
-
ISW model horizontal centrifugal pump
-
Forming machine:
-
Forming Unit/Drying &Hot-press unit/Edge Cutting Unit
-
Pneumatic angle seat valve:
-
DN80*1set/DN40*4sets/DN25*6sets/DN15*4set

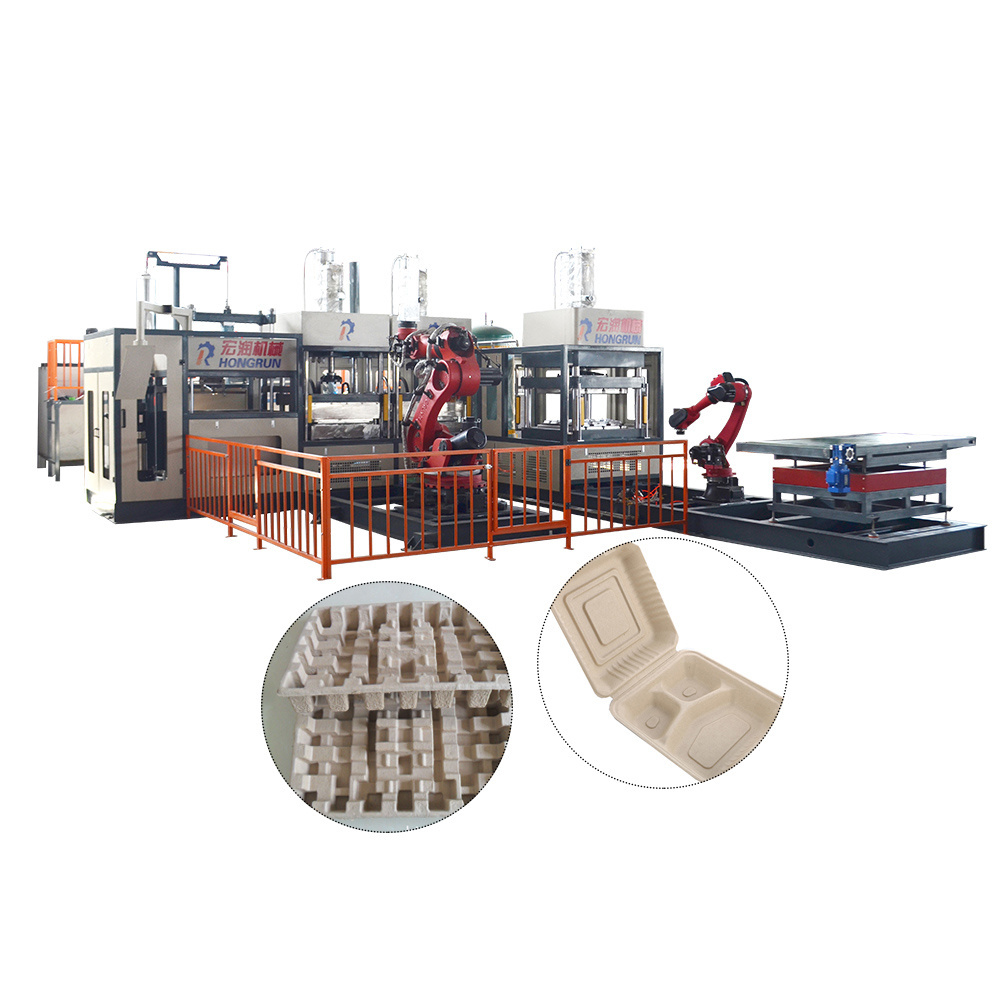

• Fully automatic design, integrating the four processes of forming, drying, shaping and edge cuttingMain features: environmental protection, fully automactic with robot arms which can save labors and save cost. with high efficiency. You investiment will be back within 20 working days.
ELECTRIC SYSTEM Electric cabinet
• Totally three electric cabinets, separately control pulping system, forming system, and drying& collection system;
• Including frequency converter, temperature controller, control button, contactor and relay etc. electrical components. Operation unit
• Including one operation box which fixed in forming machine chassis, control the whole system by knobs
and buttons by PLC program. • Including air switch control button, contactor and relay etc. electrical components.
• If customer have customized requirement, this operation box can also use touch screen technology.
