Quick Details
-
Brand Name:
-
SLDW
-
Dimension(L*W*H):
-
750x850x1665CM
-
Weight:
-
353
-
Product name:
-
Pressure Vessel Cryogenic Liquid Dewar Bottle
-
Safety valve takeoff pressure (MPa):
-
3.45
-
Bursting pressure of bursting disc (MPa):
-
5.7
-
Effective volume (L):
-
356
-
Evaporation rate (liquid nitrogen):
-
≤ 3.3%
-
Inner material:
-
Stainless Steel
-
Outer material:
-
Stainless Steel
-
Oxygen (Kg):
-
300
-
Nitrogen (Kg):
-
260
-
Argon (Kg):
-
447
Quick Details
-
Capacity:
-
375L
-
Max Working Pressure(MPa):
-
3.17 MPa
-
Place of Origin:
-
Gansu, China
-
Brand Name:
-
SLDW
-
Dimension(L*W*H):
-
750x850x1665CM
-
Weight:
-
353
-
Product name:
-
Pressure Vessel Cryogenic Liquid Dewar Bottle
-
Safety valve takeoff pressure (MPa):
-
3.45
-
Bursting pressure of bursting disc (MPa):
-
5.7
-
Effective volume (L):
-
356
-
Evaporation rate (liquid nitrogen):
-
≤ 3.3%
-
Inner material:
-
Stainless Steel
-
Outer material:
-
Stainless Steel
-
Oxygen (Kg):
-
300
-
Nitrogen (Kg):
-
260
-
Argon (Kg):
-
447
We have
30 years
of experience in one-stop solutions for gas storage and transportation, with many specifications and models. The prices of each model vary, and you can send us an inquiry for specific information！
Products Description
|
DPL 650- 375/410/450-3.17
|
|
|
|
|
||||
|
Size of product
|
|
DPL-375X
|
DPL-410X
|
DPL-450X
|
||||
|
External size (diameter X height) mm
|
|
750x850x1665
|
750x850x1900
|
750x850x1900
|
||||
|
Working Pressure (MPa)
|
|
3.17
|
3.17
|
3.17
|
||||
|
Safety valve starting pressure (MPa)
|
|
3.45
|
3.45
|
3.45
|
||||
|
Bllasting pressure (MPa)
|
|
5 7
|
5 7
|
5 7
|
||||
|
geometric volume (L)
|
|
375
|
410
|
450
|
||||
|
available capacity (L)
|
|
356
|
389
|
427
|
||||
|
Vegetable hair rate (liquid nitrogen)
|
|
≤3.3%
|
≤3.3%
|
≤3.3%
|
||||
|
Empty bottle dead weight (Kg)
|
|
|
---- |
416
|
||||
|
Filling quality |
oxygen (Kg)
|
300
|
404
|
442
|
||||
|
|
nitrogen
(Kg) |
260
|
284
|
311
|
||||
|
|
argon (Kg)
|
447
|
488
|
535
|
||||
|
|
Carbon dioxide (Kg)
|
377
|
412
|
452
|
||||
|
|
Nitrous oxide (kg)
|
353
|
385
|
423
|
||||

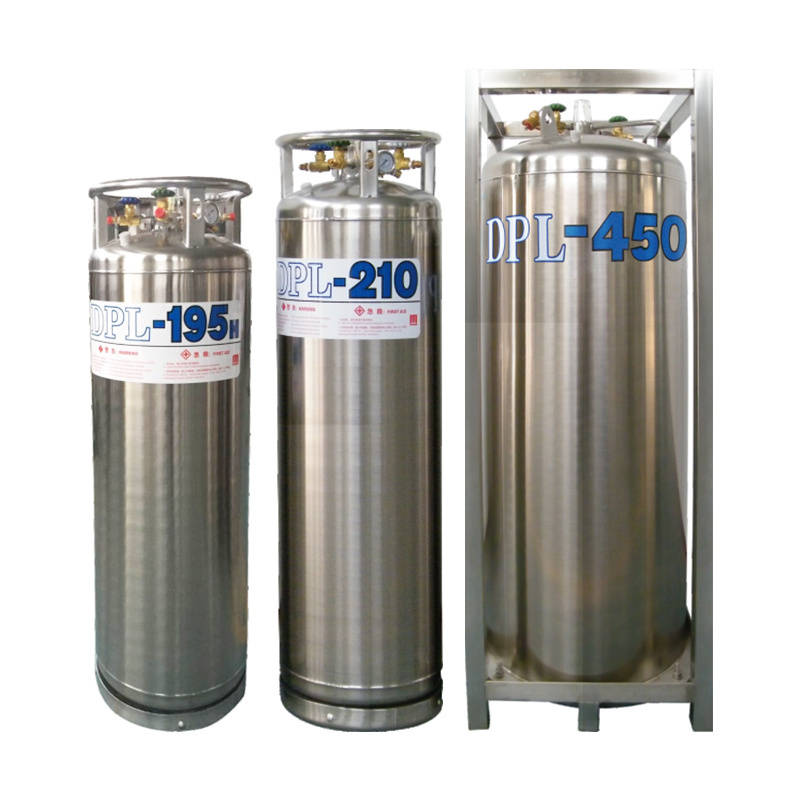

Dewar Flask
As a low-temperature insulated pressure vessel, gas cylinders are mainly used for storing and transporting liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, and liquefied natural gas, and can automatically and continuously provide gas. The gas cylinder is designed as a double-layer (vacuum) structure, with an inner liner used to store low-temperature liquids. Its outer wall is wrapped with multiple layers of insulation material, which has strong insulation performance. At the same time, the interlayer (the space between the two layers of containers) is pumped into a high vacuum, forming a good insulation system together.
