Quick Details
-
Reverse Speed(km/h):
-
12
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
top brand
-
Weight:
-
5201 kg
-
Dimension(L*W*H):
-
6880*2375*3150 mm
-
Rated power/speed:
-
75(2400r/min)
-
Tread:
-
1900mm
-
Total weight (standard):
-
7000kg
Quick Details
-
Forward Speed(km/h):
-
22
-
Engine Brand:
-
top brand
-
Working diameter:
-
450mm
-
Reverse Speed(km/h):
-
12
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
top brand
-
Weight:
-
5201 kg
-
Dimension(L*W*H):
-
6880*2375*3150 mm
-
Rated power/speed:
-
75(2400r/min)
-
Tread:
-
1900mm
-
Total weight (standard):
-
7000kg

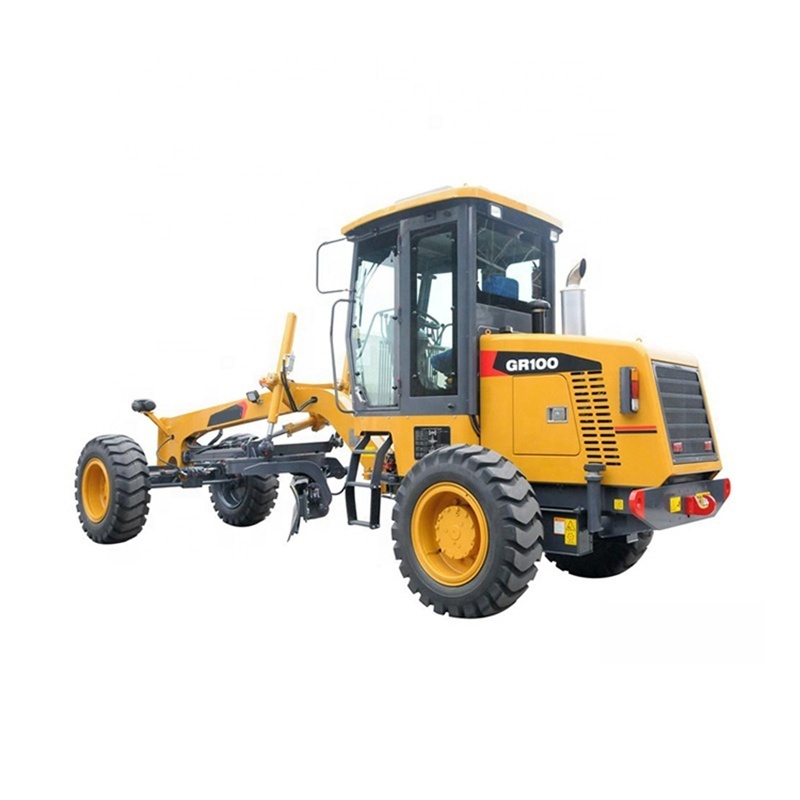

China new machinery GR100 100hp mini motor grader for sale
Contact way
Sales Manager
Aring Zhou
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Wechat: +86-15855426352
Web: www.newindu.com
Aring Zhou
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Wechat: +86-15855426352
Web: www.newindu.com
Products Description
motor grader GR100 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc.
motor grader GR100 is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
Advantages and Highlights:
1. motor grader GR100 adopts Dongfeng 4BTA3.9-C100-II (SO11847) turbocharged diesel engine with large output torque and power reserve coefficient and low fuel consumption.
2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation
characteristic with the engine.
3. The drive axle is a dedicated axle.
4. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential.
5. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and
reliable.
6. The sealed cab is used to configure the air conditioning system. Fully reflects the needs of ergonomics.
motor grader GR100 is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
Advantages and Highlights:
1. motor grader GR100 adopts Dongfeng 4BTA3.9-C100-II (SO11847) turbocharged diesel engine with large output torque and power reserve coefficient and low fuel consumption.
2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation
characteristic with the engine.
3. The drive axle is a dedicated axle.
4. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential.
5. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and
reliable.
6. The sealed cab is used to configure the air conditioning system. Fully reflects the needs of ergonomics.
Specifications
|
Item
|
GR100
|
|
Engine model
|
J-XZGR100-4BT3.9
|
|
Rated power/speed
|
75(2400r/min)
|
|
Overall dimension (standard)
|
6880X2375X3150
|
|
Total weight (standard)
|
7000kg
|
|
Tire specification
|
16/70-24
|
|
Ground clearance (front axle)
|
550mm
|
|
Tread
|
1900mm
|
|
Space of front and rear axles
|
4885 mm
|
|
Forward velocity
|
5,8,11,17,24,38km/h
|
|
Reverse speed
|
5,11,24km/h
|
|
Tractive effort f=0.75
|
39.2N
|
|
Maximum gradeability
|
20%
|
|
Tire inflation pressure
|
300kPa
|
|
Working system pressure
|
16MPa
|
