Quick Details
-
Type:
-
HSH-V lever hoist
-
Hooks:
-
Forged
-
Load Chain:
-
80 grade
-
Export Markets:
-
Global
-
Standard:
-
CE
-
Trade Mark:
-
Feiniao
-
HS CODE:
-
84251900
-
Quality:
-
Best
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hebei, China
-
Name:
-
HSH Series Lever Chain Pulley Block
-
Type:
-
HSH-V lever hoist
-
Hooks:
-
Forged
-
Load Chain:
-
80 grade
-
Export Markets:
-
Global
-
Standard:
-
CE
-
Trade Mark:
-
Feiniao
-
HS CODE:
-
84251900
-
Quality:
-
Best
HSH Series Lever Chain Pulley Block
Product Description
Introduction:
Lever hoist / lever block is a simple use, easy to carry the manual lifting tool.It can be upgraded, traction, drop, calibration etc. Lifting capacity is generally not more than 80 t . Lever hoist usually lifting capacity:0.25~9t, lifting height:1~6m.It can be classified wire rope and chain hoist. Lever chain hoist main used lifting capacity:0.25t,0.5t,0.75t,1.5t,3t,6t,9t.
Technical Parameter:
|
Model
|
HSH-V0.25 | HSH-V0.5 | HSH-V0.75 | HSH-V1 | HSH-V1.5 | HSH-V2 | HSH-V3 | HSH-V6 | HSH-V9 | |
| Standard Lift Height(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running Test Load | 0.375 | 0.75 | 1.125 | 1.5 | 2.25 | 3 | 4.5 | 9 | 13.5 | |
| Efforts required at capacity (N) | 217 | 303 | 140 | 185 | 234 | 251 | 363 | 370 | 375 | |
| No. of falls of load chain | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 | |
| Dia of load chain(mm) | 4 | 5 | 6 | 6.3 | 7.1 | 8 | 9 | 9 | 10 | |
| Headroom between two hooks(mm) | 205 | 260 | 295 | 295 | 335 | 385 | 450 | 542 | 645 | |
| Dimensions(mm) | A | 92 | 110 | 152 | 152 | 175 | 175 | 195 | 195 | 195 |
| B | 75 | 82 | 128 | 128 | 148 | 160 | 181 | 232 | 366 | |
| C | 205 | 260 | 295 | 295 | 335 | 385 | 450 | 542 | 645 | |
| D | 153 | 261 | 256 | 256 | 368 | 368 | 368 | 368 | 368 | |
| E | 17 | 23 | 26 | 26 | 30 | 33 | 34 | 47 | 64 | |
| Net weight(kg) | 1.85 | 3.5 | 7 | 7 | 11 | 15.5 | 20 | 28 | 43 | |

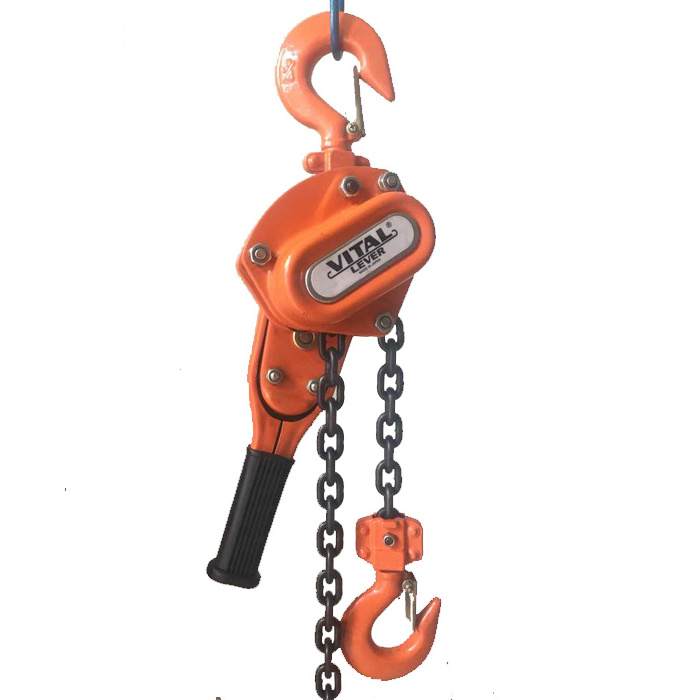

Product Show:
