Quick Details
-
Size:
-
9700*2500*3600mm
-
Place of Origin:
-
Henan, China
-
Axle specification/brand:
-
13T Zhengyang axle 3pcs
-
Tire specification/brand:
-
Triangle 12R22.5 tyres 12 pcs.
-
Hydraulic cylinder:
-
Domestic 196 oil cylinder
-
suspension:
-
Standard 5#
-
Plate spring:
-
13# Thick 10 pieces standard leaf springs 6 sets
-
Axle number:
-
3
-
tires:
-
12
-
Traction pin specification:
-
JOST 90# Traction Pin
-
Synchronous valve:
-
factory-fitted
-
Toolbox:
-
1.5/0.6/0.55 Iron Gate 2# Live Tool Kit
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
60ton
-
Brand Name:
-
JSXT
-
Size:
-
9700*2500*3600mm
-
Place of Origin:
-
Henan, China
-
Axle specification/brand:
-
13T Zhengyang axle 3pcs
-
Tire specification/brand:
-
Triangle 12R22.5 tyres 12 pcs.
-
Hydraulic cylinder:
-
Domestic 196 oil cylinder
-
suspension:
-
Standard 5#
-
Plate spring:
-
13# Thick 10 pieces standard leaf springs 6 sets
-
Axle number:
-
3
-
tires:
-
12
-
Traction pin specification:
-
JOST 90# Traction Pin
-
Synchronous valve:
-
factory-fitted
-
Toolbox:
-
1.5/0.6/0.55 Iron Gate 2# Live Tool Kit

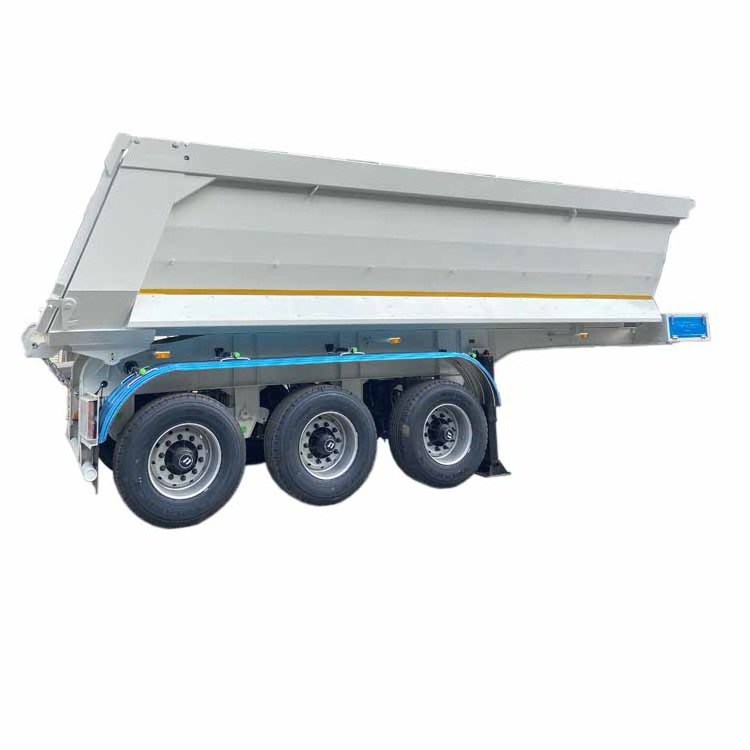

Tri-Axles 50 ton Self Dumping Truck Semi Trailer Hydraulic Rear Tipping Dump Dropside Trailer
Product Description
Self-dumping semi-trailer is suitable for the transport of bulk and scattered goods such as coal, ore, building materials, grain and so on. It has the advantages of improving transport efficiency and unloading convenience.
The compartment adopts side and rear tipping self-unloading mode, which can effectively load and unload the machine for transporting bulk and scattered goods.
Specification
|
Vehicle outline (box size)
|
|
High
|
500mm Q345B
|
|||
|
long
|
8800mm(Inner length 8000mm)
|
upper wing
|
16mm/140mm
|
|||
|
Width
|
2500mm(Inside width 2400mm)
|
lower wing
|
16mm/140mm
|
|||
|
high
|
3400mm(Box height 1600MM)
|
web
|
10mm
|
|||
|
Vehicle configuration specification
|
|
|
|
|||
|
Subframe
|
120/1205# square tube
|
Towing pin
|
JOST 90# Traction Pin
|
|||
|
Side Girder
|
80/140 5# square tube
|
Outrigger
|
YAHUA 28T external outriggers
|
|||
|
Side Plate
|
6# Q345B
|
Synchronous valve
|
a light or heavy valve
|
|||
|
Column
|
Bending parts
|
Leaf spring
|
13# Thick 10 pieces standard leaf springs 6 sets
|
|||
|
Base plate
|
5#Patterned plate
|
Tire
|
Triangle 12R22.5 tyres 12 pcs.
|
|||
|
Toolbox
|
1.5/0.6/0.55 Iron Gate 2# Live Tool Kit
|
Steel ring
|
Matching steel ring 12 pcs
|
|||
|
Spare tire rack
|
1
|
Axle
|
13T Zhengyang axle 3pcs
|
|||
|
Air storage cylinder
|
2 black iron -- 30 litres
|
Suspension
|
Standard 5#
|
|||
|
Oil cylinder
|
Domestic 196 oil cylinder
|
Braking System
|
T30/30 double air chamber 6 pcs
Fuhua |
|||
|
Lamps
|
LED light fixtures (3 on one side of the side lights and 2 on the tail lights)
|
Electrical System
|
24V 7-Hole Plug
|
|||
|
Color: according to customer needs
|
|
|
|
|||
|
Rated load capacity: 50T
|
|
|
|
|||
|
Curb weight:/12T
|
|
|
|
|||
