Quick Details
-
Accept customization:
-
yes
-
Accuracy:
-
extremely high
-
application:
-
extensive
-
Connection:
-
Directly ,Angular, Inflexible tube, Flexible tube
-
Material:
-
316LS.S , 316S.S , HZ, Monel, MO
-
Type:
-
Y-ML Thread-type
-
Pressure range:
-
-0.1 MPa~100MPa
-
Size:
-
Custom
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-

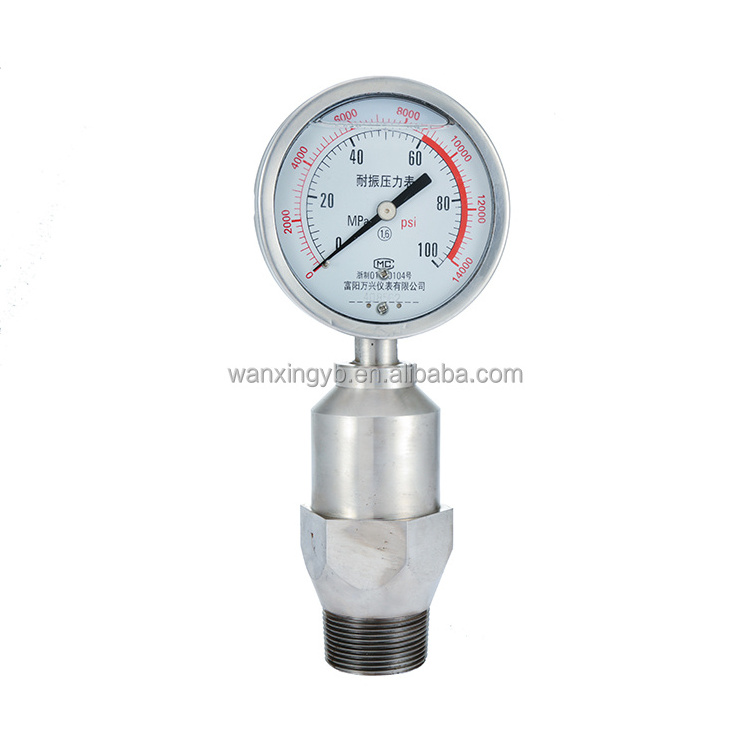

Diaphragm Pressure Gauge
-
warranty:
-
one year
-
Accept customization:
-
yes
-
Accuracy:
-
extremely high
-
application:
-
extensive
-
Connection:
-
Directly ,Angular, Inflexible tube, Flexible tube
-
Material:
-
316LS.S , 316S.S , HZ, Monel, MO
-
Type:
-
Y-ML Thread-type
-
Pressure range:
-
-0.1 MPa~100MPa
-
Size:
-
Custom
To customize the pressure gauge display please click here.
|
Name |
Diaphragm Pressure Gauge |
|
Type |
Y—ML Thread-type |
|
Precision Grade |
Same grade with its corresponding universal pressure gauge |
|
Measuring Range |
-0.1 MPa~100MPa |
|
T emperature Range |
-40~70℃ |
|
Material |
Mark :Anti—erosion characteristic 316L S.S/316 S.S :Fit for SuIfide and oxide HZ Alloy :Fit for dilute hydrochloric acid,dilute sulphuric acid and phosphoric acid Monel Alloy :Fit for acid,worse than HZ Mo :Fif for chloride gas.reductive acid.all inorganic acid and inorganic salt |
|
Diaphragm material |
316LS.S , 316S.S , HZ , Monel , MO |
|
Flange connector material |
carbon steel/316S.S |
|
Connecting form |
Directly, Angular,Inflexible tube,Flexible tube |
|
Isolator connecting form |
Thread/Flange |
Y-ML /Y-MF Thread-type Diaphragm Pressure Gauge is specially used in the process of Petrol,Chemical,food industries to measure the pressure of liquid medium with erosion,high viscosity,crystal,solidparticles,and high temperature.
All parameters can be customized according to your requirements.
Fuyang Wanxing Instrument Co.,Ltd.
is located in the southern suburtbs of Fuyang District, Hangzhou in China,
We are one of the national instrumentation production base.
Below products can be provided:
stainless steel pressure gauge,vacuum pressure gauge,
oil filled pressure gauge,digital pressure gauge,
electrical contact pressure gauge,industrial thermometer,
pressure transmitters and so on.
Due to our flexible assembly line,we support 1~15days of delivery.
Q : Wh at is your delivery period?
A: 3~6 0day. ( Some product are stocked in the warehouse )
Q : Where is your factory?
A: We are manufacturer ,and It is located in Hangzhou Zhejiang China.
Q : Do you have after-sell service?
A: Yes ,all our products are of one-year warranty free.
Q : Can you send sample for us?
A: Yes,for cooperation sincerity, we will provide samples for free, but the delivery charges should be at your account.
We can also manufacture according to your sample.
Remarks:
1.Our meters are accurate and we can provide operational instructions and videos for you.
2.Please advise us specs and quantity thus we can quote you the reasonable price.
