Quick Details
-
Brand Name:
-
sunway
-
Model Number:
-
LFP54173202
-
Place of Origin:
-
Anhui, China
-
Weight:
-
4150g
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
0.5C
-
Product name:
-
lithium battery cell
-
Type:
-
prismatic lifepo4 battery cell 3.2v
-
Keywords:
-
lfp battery cells
-
Standard Voltage:
-
3.2V
-
Nominal Capacity:
-
230Ah
-
Voltage Range:
-
2.0V-3.65V
-
Cycle life:
-
4000 Times
-
Dimension:
-
53*173*206
-
Operating Temperature:
-
Charge: 0°C - 55°C
Quick Details
-
Storage Type:
-
Dry storage at 25°C
-
Anode Material:
-
LFP
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, Golf Carts, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems
-
Brand Name:
-
sunway
-
Model Number:
-
LFP54173202
-
Place of Origin:
-
Anhui, China
-
Weight:
-
4150g
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
0.5C
-
Product name:
-
lithium battery cell
-
Type:
-
prismatic lifepo4 battery cell 3.2v
-
Keywords:
-
lfp battery cells
-
Standard Voltage:
-
3.2V
-
Nominal Capacity:
-
230Ah
-
Voltage Range:
-
2.0V-3.65V
-
Cycle life:
-
4000 Times
-
Dimension:
-
53*173*206
-
Operating Temperature:
-
Charge: 0°C - 55°C
Product Description

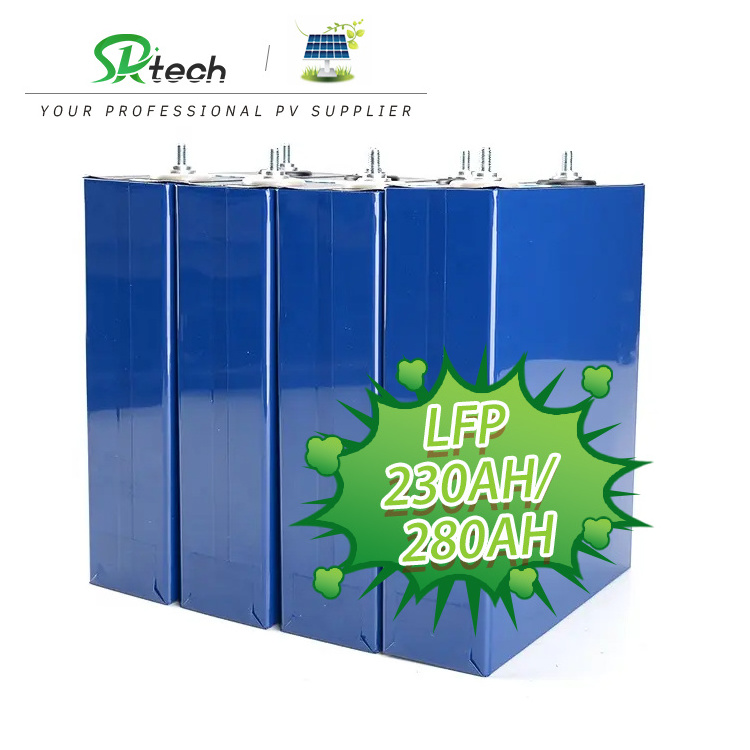

Prismatic Cells
Prismatic cells consist of large sheets of anodes, cathodes, and separators sandwiched, rolled up, and pressed to fit into a metallic or hard-plastic housing in cubic form. The electrodes can also be assembled by layer stacking. Lithium prismatic cells feature either single-row or two-row modules and the arresters are always on the same side regardless of the row.
Prismatic cells are either adhesive-bonded by welding, with busbars and support plates or traction / form-fit connected with screwing/] or latching as joining technology and hole-busbars as a bridge. Lastly, prismatic cells can be fixed by gluing. This requires a light and elastic joining medium to avoid air pockets.
Product Parameters
|
Type
|
LFP54173202
|
LFP71173204
|
|
|
Standard Voltage
|
3.2V RT@0.5C Discharge
|
3.2V RT@0.5C Discharge
|
|
|
Nominal Capacity
|
230Ah RT@0.5C Discharge
|
280Ah RT@0.5C Discharge
|
|
|
Voltage Range
|
2.0V-3.65V
|
2.0V-3.65V
|
|
|
Standard Charge
|
0.5C CC to 3.65V, 3.65V CV to 0.05C
|
|
|
|
Max Charge Current
|
230A
|
280A
|
|
|
Standard Discharge
|
0.5C CC to 2.5V
|
|
|
|
Max Discharge Current
|
230A
|
280A
|
|
|
TEM
|
Charge: 0°C - 55°C
Discharge : -20°C - 55°C
|
Discharge : -20C - 55
|
|
|
Weight
|
4150g
|
5350g
|
|
|
Dimension（mm）
|
53*173*206
|
71*173*206
|
|
|
Densitu
|
>=175Wh/kg >=380wh/L
|
>=165wh/kg >=350wh/L
|
|
|
Life Cycle
|
4000
|
4000
|
|
