Jindex Graphite Gasket Cutting Machine High Speed Circular Gasket Cutter

Jindex Graphite Gasket Cutting Machine High Speed Circular Gasket Cutter

FOB Reference Price: Get Latest Price

≥1 Sets

US $13000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 257*200*140CM

Year:: 2020

Power (kW):: 11 kW

Weight (KG):: 1000 KG

Raw material:: Waste Tyre

After-sales Service Provided:: Engineers

Name:: Waste Tire Plastic Pyrolysis Plant

Application:: Rubbers Recycling Industry

Function:: Tire Powder Recycling Machine

Product name:: Tire Recycling Processing Line

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Jindex

Voltage:: 220V 380V

Dimension(L*W*H):: 257*200*140CM

Year:: 2020

Power (kW):: 11 kW

Weight (KG):: 1000 KG

Raw material:: Waste Tyre

After-sales Service Provided:: Engineers

Name:: Waste Tire Plastic Pyrolysis Plant

Application:: Rubbers Recycling Industry

Function:: Tire Powder Recycling Machine

Product name:: Tire Recycling Processing Line

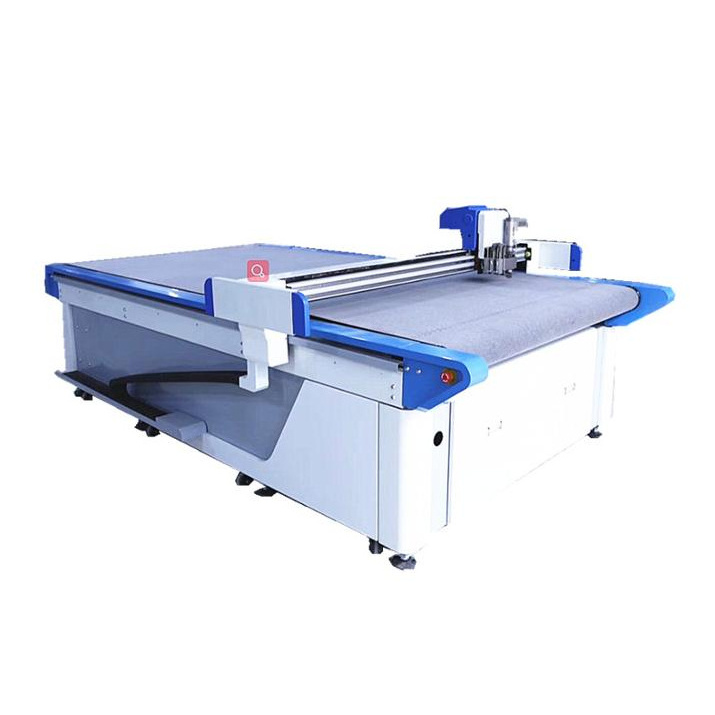

Jindex Graphite Gasket Cutting Machine High Speed Circular Gasket Cutter

Configuration A (4 axis, Round Knife+Notch)

Technical information/model	JD-ASF-1813A
Cutting Areaa	180*130CM
Cutting Speed	<1200mm/s
Cutting Precision	±0.1mm
Cutting Thickness	≤30mm or max 60mm
Overall Dimension	257200140CM
Material Fixed Method	Vacuum Suction
Format compatible	DXF、HPGL
Supply Voltage	AC 220V 380V ± 10%, 50HZ

Automatic circulation feeding

Configuration A： 4 axis,Oscillating knife +pen.

German Brand

high precision rack and gear drive & import PMI linearnguides and sliders .

One-piece high-strength

aluminum honeycomb panel 0.3mm Plane accuracy up to 0.3mm

1.Inkjet Function: Inkjet Cartridges automatically adjust the inkjet high based on the height of the material, and automatically clean the ink cartridges.

2.Infrared anti-collision device in line with international standards to ensure operators safety.

3. Conveyor table(Optional): To achieve unlimited length of material cutting , high efficiency.

4.A veriety of optional tools: Oscillating Knife , presser, half knife, V knife, round punch, milling cutter, round knife, inkjet , etc.

5. High-power Round Knife Oscillating Head: Upgrade 120W high-power motor, strong and powerful

6. High-speed Oscillating head:Efficient cutting speed to achieve high quality cutting effect.

7.High Precision Japanese MITSUBISHI motor.

8. Optional automatic partition adsorption, 8-48 adsorption adsorption. Can follow adsorption, and automatically correct the table to ensure accurate cutting.

We are manufacturer to make machine. We can make machine as your request.

So we strongly welcome all of you to get customization service.

To meet all our customers' requirements.

So you can tell us your detailed requirements .

Such as: cutting which material , need use which cutting tool, need how many axis and so on.

Please contact us free for more details!

Different optional has different price. Please contact us for detailed price.

Optional: D1 (small CCD), D2 (panoramic camera), D3 (round punch),
D4 (typesetting projection system), D5 (partition adsorption), D6 (higher 60MM)
Note: Adding D1 and D3 functions will reduce the effective cutting of the machine.
A/C/D can be configured with D6 (60MM heightening).

----------------------------------------------------------------------------------------------------------------------------------------------------
Different configuration ,different price. Please contact us for detailed price.

For this cutting machine can choose configuration .
There are 4 configuration . you can choose A or B or C or D .

Configuration A (4 axis, Oscillating knife + pen)

Configuration B (4 axis, Oscillating knife+ Pneumatic rotary presser（notch）+ pen)

Configuration C (6 axis, Oscillating knife + V cut（independent presser）+ half cut head + pen)

Configuration D (7 axis,Spindle + Oscillating knife + V cut（independent presser）+ half cut head + pen)

Jindex Intelligent Oscillating Cutting Machine AS Series-Cutting Tool Optional:

A variety of optional tools: Oscillatng knife,presser, half knife, V knife, foam knife, milling cutter, round Knife, etc.

We Will Pack Machine By Carton Or Wooden .

We Will Ship Machine By Sea After Receiving Payment 7-14 Working Days.

If You Need More Quickly, Also Can Ship By Air. But Will Cost More Expensive.

If Small Goods Or Documents , We Can Ship By DHL.

More Quantity Need Consultation .

Shen Zhen Jindex Stock Co., Ltd. a s high-technology company in professional R&D, manufacturer, sales and after service in CAD/CAM fields, that’s globally advanced and smart auto cutting machine manufacturer with full production lines for soft material and sales in 60 different countries oversea.

Jindex senior R&D and production people have nearly 20 years experience in the high-tech CAD/CAM industry. It has created a high-quality service team to serve nearly 10,000 customers at home and abroad after nearly ten years of development. Thanks to the praise of customers, we will work harder!worldwide.
