Quick Details
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
15
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
chencan
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1300*2500*800
-
Power (kW):
-
28
-
Weight (KG):
-
11000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
CC-SF1325-5S
-
C Axis:
-
±245°
-
A Axis:
-
±120°
-
Spindle:
-
Water Cooling Spindle
-
Control system:
-
Taiwan Syntec Control System
-
Transmission:
-
Ball Screw Transmission
-
Working table:
-
Vacuum Table + Tslot
-
Driving system:
-
Japan Yaskawa Servo System
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
15
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
chencan
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1300*2500*800
-
Power (kW):
-
28
-
Weight (KG):
-
11000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
CC-SF1325-5S
-
C Axis:
-
±245°
-
A Axis:
-
±120°
-
Spindle:
-
Water Cooling Spindle
-
Control system:
-
Taiwan Syntec Control System
-
Transmission:
-
Ball Screw Transmission
-
Working table:
-
Vacuum Table + Tslot
-
Driving system:
-
Japan Yaskawa Servo System
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
Product Description

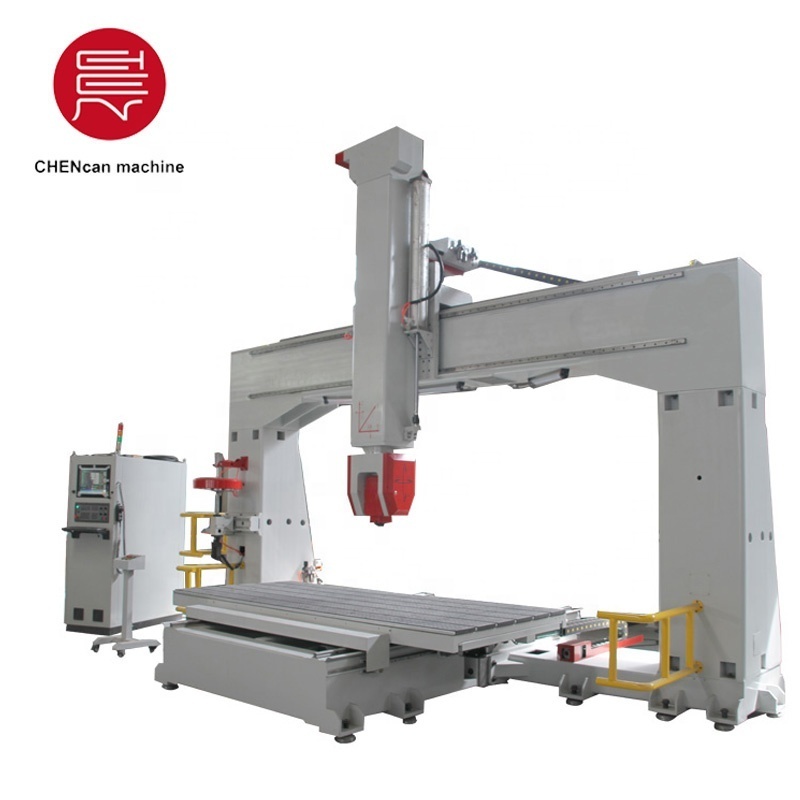

This 5 axis CNC mold machining center is used for engrave 3D wood/EPS foam mold, sculpture, valves, cam, and plate disc type, tank shells and other type of non-metallic parts of milling, drilling, boring, especially suitable for a variety of complex shape convex model, complex cavities, surfaces and also sculpture industry.
Parameters
|
Technical Parameters
|
|
|
|
Model
|
CC-SF1325-5S
|
|
|
X Y working area
|
1300x2500mm
|
|
|
Z working area
|
800mm
|
|
|
C Axis
|
±245°
|
|
|
A Axis
|
±120°
|
|
|
Spindle
|
Italy 15KW
|
|
|
Working mode
|
Japan YASKAWA servo motor
|
|
|
Operating system
|
Syntec 610MA-E5 5 axis control system
|
|
|
XYZ drive
|
Ball screw
|
|
|
Guide rail
|
Tiwan HIWIN
|
|
|
Gear reducer
|
LIMING
|
|
|
Power supply
|
380V, 3ph, 50Hz
|
|
|
Lubrication
|
Automatic oil lubrication
|
|
|
Balance system
|
Air cylinder
|
|
|
Software
|
UG, Powermill, Alphacam,etc
|
|
|
Customized sizes and upgrades for the components are available on request.
|
|
|
Detailed Images
Italy 15KW
SYNTEC 610MA-E5
Carousel tools changger
Japan yaskawa servo drive
Application
Automobile related: Unibody vehicle models, interior assemblies, luggage racks, sunroof rails, bumpers.
Aviation related: Parts molds/patterns, Propellers, Turbine Blades.
Rail transit industry: motor vehicle head cover, roof deflector, interior decoration, control console, overall toilet.
Wind power mold related: Blade Mold, Nacelle Cover Mold.
Foundry: Wooden mold, Lost-foam casting mold, Composite material mold, sand mold.
Boat Related - Maritime Related - plug mold, deck mold, hull mold, fiberglass mold trimming.
Composite Materials - GRC/GRP/FRP/ABS/EPS/Plastic/Clay/Epoxy and other composite material.
Sculpture / Scene Making Related - Theme park decorations, Movie props, Humanoid sculptures.
Furniture Manufacturers - Mortise and tenon, Solid wood curved surfaces, Handrail elbow, stair turning head, chair back
Bathroom industry: bathtub mold, basin mold, toilet mold and various gypsum products processing.
New energy industry: new energy battery box.
Modeling related - Any kind of 3D shapes, Real estate Models.
