- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AccTek
-
Single Pulse Energy:
-
120J
-
Pulse Width:
-
0.1-20MS
-
Wavelength:
-
1070nm
-
Focal Spot Diameter:
-
0.3-3mm, 0.1-20ms fiber optic
-
Dimensions:
-
1240*620*1060mm
-
Weight (KG):
-
285 KG
-
Core Components:
-
Hanwei/Au3tech laser head and controller, Raycus/Reci/Max/IPG/JPT laser generator, Industrial water chiller, auto wire feeding system
-
laser generatoer:
-
Raycus/Reci/Max/JPT/IPG
-
Laser head and controller:
-
Hanwei/Au3tech
-
Fiber length:
-
Standard 10M maximum support 15M
-
Way of working:
-
Continuous
-
Speed range:
-
0-120mm/s
-
Welding thinkness:
-
0.5-3mm
-
Welding gap requirements:
-
≤0.5mm
-
Cooling water:
-
Industrial water chiller
-
Working temperature:
-
15-35℃
-
Working humidity:
-
<70% no condensation
Quick Details
-
Max. Output Power:
-
1000w
-
Usage:
-
metal ss cs welding
-
Laser Source Brand:
-
Raycus/Reci/Max/JPT/IPG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AccTek
-
Single Pulse Energy:
-
120J
-
Pulse Width:
-
0.1-20MS
-
Wavelength:
-
1070nm
-
Focal Spot Diameter:
-
0.3-3mm, 0.1-20ms fiber optic
-
Dimensions:
-
1240*620*1060mm
-
Weight (KG):
-
285 KG
-
Core Components:
-
Hanwei/Au3tech laser head and controller, Raycus/Reci/Max/IPG/JPT laser generator, Industrial water chiller, auto wire feeding system
-
laser generatoer:
-
Raycus/Reci/Max/JPT/IPG
-
Laser head and controller:
-
Hanwei/Au3tech
-
Fiber length:
-
Standard 10M maximum support 15M
-
Way of working:
-
Continuous
-
Speed range:
-
0-120mm/s
-
Welding thinkness:
-
0.5-3mm
-
Welding gap requirements:
-
≤0.5mm
-
Cooling water:
-
Industrial water chiller
-
Working temperature:
-
15-35℃
-
Working humidity:
-
<70% no condensation
Product Introduction
handheld portable Laser Welding Machine1500w 2000w fiber laser welding machine for Metal stainless steel price
This machine mainly used in IT, medical, electronics, batteries, metal parts, watch precision parts, automotive steel sheet and other industries, it has high welding efficiency, small heat affected zone, beautiful and firm solder joints, refractory materials also can make it. Main power is 1kw, 1.5kw, 2kw, 3kw. It’s the best choice for customers.
fiber laser welding machine Advantages ：
ACCTEK Laser hand-held laser welding machine consists of the latest generation of fiber laser generator, wobble welding head and cabinet.
1.With simple operation, beautiful and smooth weld seam effect, fast welding speed and no consumables needed during
welding process.
welding process.
2. Welding in thin metal plates such as stainless steel plates, iron plates and galvanized plates can perfectly
replace traditional argon arc welding and electric welding
replace traditional argon arc welding and electric welding
.3.which is 2-10 times faster than the traditional welding speed.
Product Paramenters
|
Model
|
AKH
|
Laser Power
|
1000W / 1500W / 2000W / 3000W
|
|
Range of Adjustable Power
|
1-100%
|
Laser Wavelength
|
1064nm
|
|
Fiber Length
|
Standard 10m, maximum support 20m
|
Way of Workinging
|
Continuous / Modulation
|
|
Speed Range
|
0-120mm/s
|
Repeat Precision
|
±0.01mm
|
|
Welding Gap Requirements
|
≤0.5mm
|
Cooling Water
|
Industrial thermostatic water tank
|
|
Working Temperature
|
15-35℃
|
Working Humidity
|
＜70% no condensation
|
|
Voltage
|
380V
|
Focal Spot Diameter
|
0.2-2mm
|
|
Welding Depth
|
0.1-4mm
|
Pulse Frequency
|
0.1-100Hz
|
Details Shows
Hanwei Welding Head
*Light weight, small size, ergonomic design and comfortable grip.
*Fast welding speed, no traces, no discoloration, no need for later pllishing
Raycus Laser Generator 1000W
*Raycus has an ffcient and professional R&D and production team, which is the top quality in China.
*The lasers have higher electro-optical conversion ficiency, higher and more stable optical quality.
HANWEI Controller
*Strong compatibility. Multiple light emission modes. Maintenance-free, and long service lfe.
Hanli Water Chiller
*Specially developed for fiber laser equipment, excellent cool-ing effect.
*Stable and rliable performance, low flilure rate, energy
efficient.

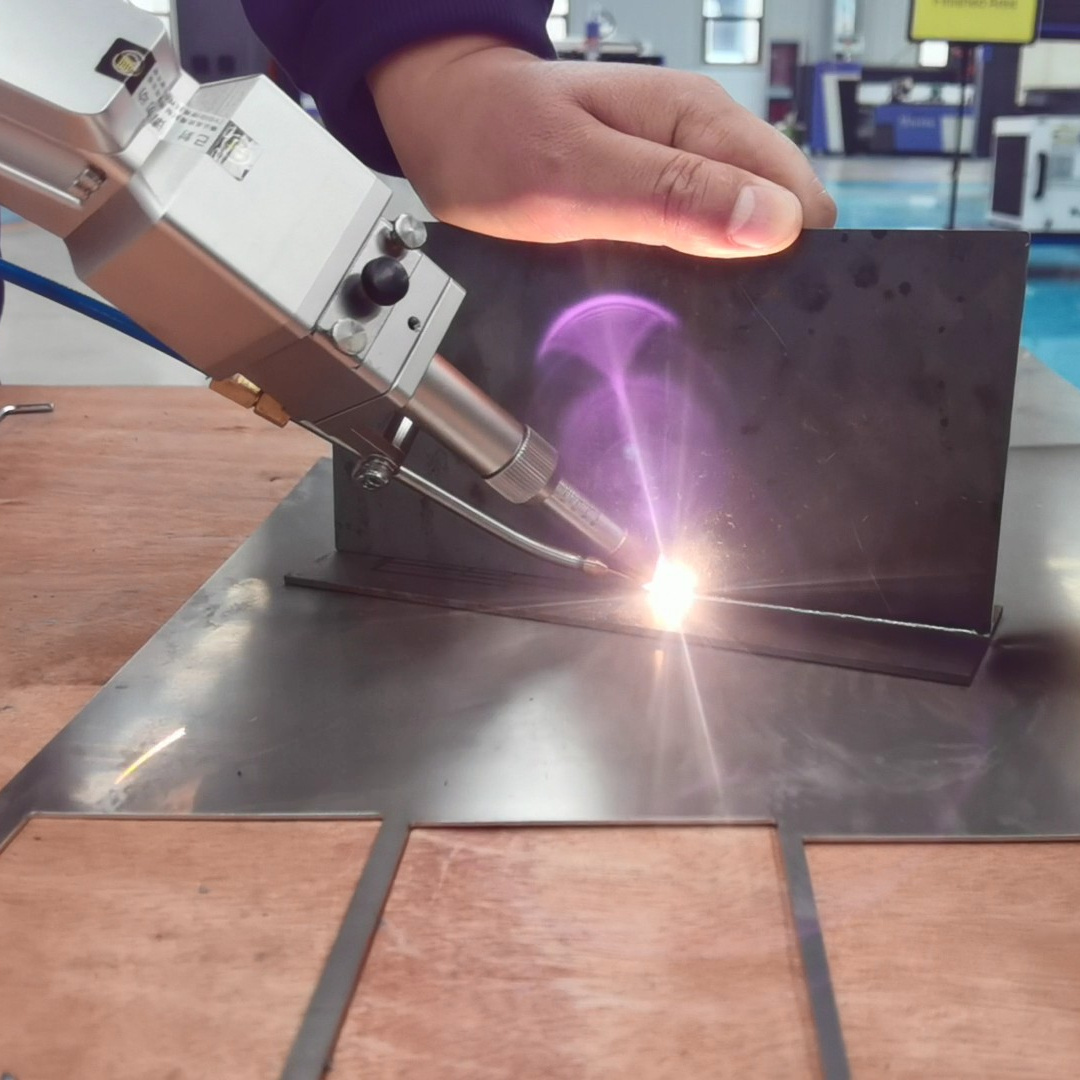

Working Samples
fiber laser welding machine
materials：
fiber laser welding machine can be used for welding stainless steel, carbon steel, copper, aluminum, gold, chromium,silver, titanium, nickel, and other metals or alloys, and can also be used for welding between different materials, such as copper-brass, Titanium-molybdenum, titanium-gold, nickel-copper, etc.It can achieve the same precision welding between metals and dissimilar metals.
fiber laser welding machine Application：
fiber laser welding machines are widely used in aerospace, shipbuilding, and instrumentation. , Mechanical and electrical products, automobiles 、kitchen cabinets, stair elevators, shelves, ovens, stainless steel doors, window guardrails, distribution boxes, medical equipment, communication equipment, battery manufacturing, craft gifts, home furnishin etc
Company and Factory Show
Jinan Acctek Machinery Co., LTD is a high-tech enterprise specializing in the R&D, production, and sales of intelligent laser equipment. Every machine at AccTek Laser is designed and developed based on extensive knowledge. Our main products are laser cutting machines, laser cleaning machines, and laser welding machines. Tailoring laser solutions to individual
needs is our specialty, and we also support OEM and ODM services for our customers. AccTek Laser not only provides high-quality products and solutions but also provides perfect after-sales and follow-up services for each customer. At every stage of machine setup, you will be supported by our professional staff. We’ll help you understand installation and operation, and optimize the process to get the best out of your machine. Our engineers can also come to your workshop for installation and training if necessary.
needs is our specialty, and we also support OEM and ODM services for our customers. AccTek Laser not only provides high-quality products and solutions but also provides perfect after-sales and follow-up services for each customer. At every stage of machine setup, you will be supported by our professional staff. We’ll help you understand installation and operation, and optimize the process to get the best out of your machine. Our engineers can also come to your workshop for installation and training if necessary.
Our Advantages
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
CE certificate：
Acctek Mechanical Equipment Co., Ltd. regularly goes to exhibitions around the world to bring products and deeply experience and exchange with everyone
Service & Feedbacks
30 500+ 120+
Invention patents Optical fiber laser orders Country of sale
1) Guarantee
3 years
guarantee of the whole machine.
2) Software issue Our technician is able to re-install or set up by remote for free.
3) Hardware issue Main parts(excluding the consumables) shall be replaced/repaired free of charge, if there is any problem during the warranty period.
4) Support online Our technician is able to teach you online to run the machine or eliminate the fault for free.
5) Training in AccTek factory We are able to train your staff after placed order in our factory for free.
6)On-site training (Recommended, the most effective way) We are able to send technician to your workshop to do the installation and training. You will need bear the related costs(flight, visa, hotel, training costs, etc.)
Customer Feedback：
