Quick Details
-
Power:
-
11-132KW, 11kw
-
Dimension(L*W*H):
-
1200*550*750mm
-
Weight (KG):
-
130
-
Modle:
-
UD420
-
Capacity:
-
1200kg/h
-
Speed:
-
2800r/m
-
Blade:
-
4
-
Feed Port:
-
140*100mm
-
Weight:
-
130kg
-
Dimension:
-
1200*550*75mm
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UD
-
Voltage:
-
220V/380V
-
Power:
-
11-132KW, 11kw
-
Dimension(L*W*H):
-
1200*550*750mm
-
Weight (KG):
-
130
-
Modle:
-
UD420
-
Capacity:
-
1200kg/h
-
Speed:
-
2800r/m
-
Blade:
-
4
-
Feed Port:
-
140*100mm
-
Weight:
-
130kg
-
Dimension:
-
1200*550*75mm
Technical parameters
|
Model
|
UD420
|
UD500
|
UD600
|
UD700
|
|
Capacity
|
1200kg/h
|
1500kg/h
|
2000kg/h
|
2500kg/h
|
|
Feed Port
|
140*100mm
|
160*150mm
|
200*200mm
|
220*250mm
|
|
Speed
|
2800r/m
|
2800r/m
|
2700r/m
|
2100r/m
|
|
Blade
|
4
|
4
|
4
|
6
|
|
Power
|
11kw
|
18.5-22kw
|
22-30kw
|
30-37kw
|
|
Weight
|
130kg
|
210kg
|
320kg
|
450kg
|
|
Dimension
|
1200*550*75mm
|
1500*640*820mm
|
1500*700*900mm
|
1850*830*1050mm
|
|
UD900
|
UD1000
|
UD1200
|
UD1500
|
UD1800
|
|
3000kg/h
|
5000kg/h
|
6000kg/h
|
10000kg/h
|
13000kg/h
|
|
240*260mm
|
280*290mm
|
400*360mm
|
460*490mm
|
530*560mm
|
|
2000r/m
|
1500r/m
|
1000r/m
|
1000r/m
|
950r/m
|
|
8
|
8
|
8
|
8
|
12
|
|
55kw
|
75kw
|
90kw
|
110kw
|
132kw
|
|
600kg
|
800kg
|
1500kg
|
2000kg
|
2400kg
|
|
X
|
2000*1870*1500mm
|
X
|
X
|
X
|
Product introduction

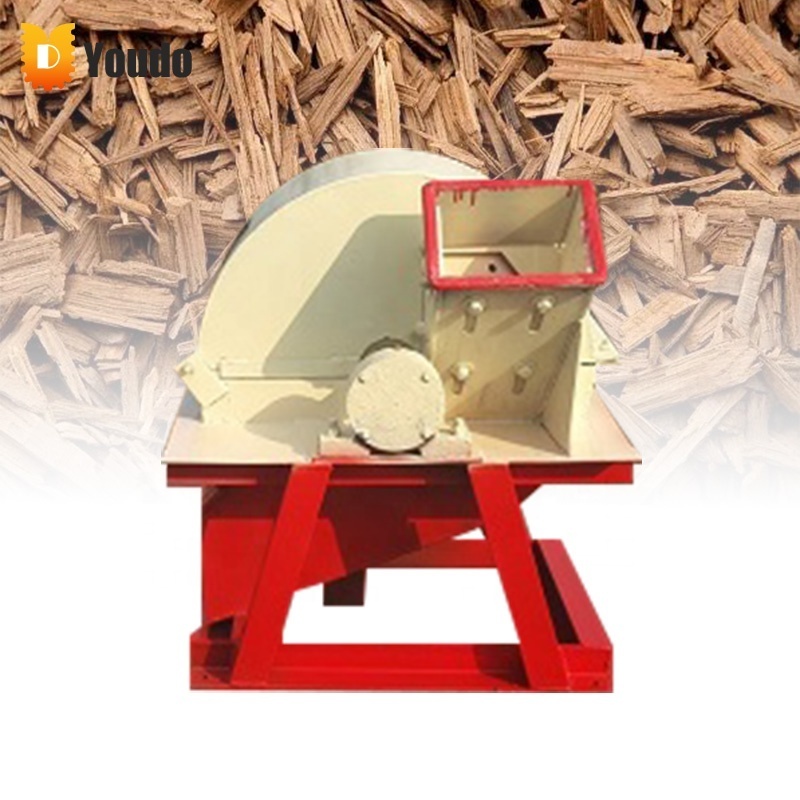

Wood shredder, branch shredder, sawdust shredder, wood chipper The wood shaving machine is a new type of mechanical equipment ideal for the production of wood powder before production.
It can process wood, branches and other raw materials into wood chips at one time.
It has the advantages of
less investment, low energy consumption, high productivity, good economic benefits, and convenient use and maintenance.
The sawdust machine is especially suitable for the processing of sawdust in the edible fungus culture medium, and is mainly composed of a chipping device, a crushing device and a fan. After the wood is cut by the chipping device, the particle size of the wood chips is small, and it can be sent to the pulverizing device for further pulverization without drying. The whole set of equipment is
driven by only one motor, with simple structure, compact layout, low price, stable work, low energy consumption, high output,
good quality of wood chips and low processing cost. It can also be used for cutting fibrous stalk-like materials such as bamboo, thatch, corn stalk, and sorghum stalk.
There are many models of machines and many types of crushed things. For specific details, please consult customer service.
UD1800
Double port crusher
Finished product display
The wood shredder is suitable for the processing of materials such as branches, bamboo and wood powder, fruit husk, Chinese herbal medicine, bark, leaves, wheat bran, konjac, black hemp, rice husk, corncob, straw and other materials. , medicine, health care, aquaculture, food, mosquito coils and other industries ideal grinder.
Production process
Working theory
When the machine working, the blades on the cutter will first cutting the material into pieces, then the pieces go to the crushing room. The pieces are crushed in to sawdust by the hammers in the crushing room. Then the final product are fanned out by the air fan.
Product details
Each model of the shredder can be equipped with a redundant feed inlet, as well as Shaclon.
Shakron, also known as cyclone dust collector, is a type of dust removal device. The mechanism of dust removal is to make the dust-laden airflow rotate, separate the dust particles from the airflow by means of centrifugal force and trap them on the wall of the device, and then use the action of gravity to make the dust particles fall into the ash hopper.
It can be equipped with racks and wheels, so that the grinder can be moved at will.
Real shooting
After Sales Service
Quality assurance
We have always focused on research and development because they are the key to our corporate innovation. They make us do better in production, technical service and marketing.
We provide high-quality machines and professional after-sales service.
Our goal is to maximize customer satisfaction and value. We usually provide 1 year warranty and free common accessories.
assured.When disassembling, we will paste the corresponding label on each part, and provide multi-language installation video and instruction manual. Customer satisfaction is our aim.
We provide high-quality machines and professional after-sales service.
Our goal is to maximize customer satisfaction and value. We usually provide 1 year warranty and free common accessories.
We promise that our products are brand new and have not been used. They are made of corresponding materials and adopted a new design.
The quality, specifications, and functions are in compliance with the contract requirements.
We promise that the products produced on this production line can be stored for one year without any additives.
The quality, specifications, and functions are in compliance with the contract requirements.
We promise that the products produced on this production line can be stored for one year without any additives.
Test and teardown
We will take the initiative to test the operation of the machine when it is completed, and take videos to let customers rest
assured.When disassembling, we will paste the corresponding label on each part, and provide multi-language installation video and instruction manual. Customer satisfaction is our aim.
Package
We will wrap the machine with film to avoid damp and scattered during transportation, and thicken the export wooden box to surround the machine to protect the machine from impact and friction. The size depends on the machine.
Transportation
We can provide multiple channels of transportation. We guarantee that the freight forwarders we use have more than 5 years of cooperation history, provide you with fast timeliness and economic prices, and ensure the safety and integrity of your machines.
Installation and commissioning
After the equipment arrives at the customer's workshop, please arrange the equipment in accordance with the floor plan drawn up by us. During the epidemic, we can use online videos or video tutorials to guide debugging.
After the epidemic is over, we can also arrange professional engineers to your factory. You need to provide our engineers' round-trip air tickets and accommodation, as well as salary.
company information
Youdo machinery
is a factory with 10 years experience in machinery production and foreign trade.
In the past ten years, we have helped friends from 152 countries to start their businesses. With our support, 1,230 friends have made their business bigger and bigger and ranked among the forefront of the industry.
We have received after-sales praise from more than 10,000 friends, we strictly control the quality of our products, and have
long-term cooperation with 127 large foreign companies based on the principle of mutual benefit.
In the past ten years, we have helped friends from 152 countries to start their businesses. With our support, 1,230 friends have made their business bigger and bigger and ranked among the forefront of the industry.
We have received after-sales praise from more than 10,000 friends, we strictly control the quality of our products, and have
long-term cooperation with 127 large foreign companies based on the principle of mutual benefit.
Our service tenet is:
Choosing us makes you rich.
Finding us means that you will find a one-stop solution to your needs.
Choose us to start your business development journey, please let me grow with you, my friend.
Finding us means that you will find a one-stop solution to your needs.
Choose us to start your business development journey, please let me grow with you, my friend.
Certificate display
Packing & Delivery
Why Choose Us
FAQ
Question1:
Are you manufacturer?
A: Yes, we are manufacturer with more than 10 years' experience.
A: Yes, we are manufacturer with more than 10 years' experience.
Question2:
What are your advantages compared with your competitors?
A:
With rich industry experience and strict Product Quality Control systems, we provide:
1. Stable and reliable product at reasonable price
2. Good customer service: Fast response to any inquiry or question
3. On-time delivery.
Question 3:
What's the delivery time and w
hich ports do you usually ship at
?
A
:
We will deliver the product in 7 days after receiving the deposit.
We can load container at: Qingdao, Shanghai, Tianjin, Guangzhou etc.
Question4
:
What's the lifetime of the wearing parts?
A:
The material of our product is of high quality, and the lifetime of our wearing parts is twice longer than the others,including the roller skin, die and bearing.
Question5
:
What
shall we do if breakdown occurs？
A:
.
In case of failure, please inform us. During the warranty period, in case of failure, we will respond in time after receiving the buyer's notice. We will handle the fault by telephone / fax or email according to the buyer's requirements.
Question 6:
Do you have English Manual for each machinery?
A:
Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Question7
:
Do you have some foreign customers useing your equipments?
A:
Yes , we have customers all over the world.
Question8
:
MOQ(Minimum Order Quantity)
A:
One set is welcome, and mix products for order are welcome.
Question 9:
Can you customize the machine for me ?
A: Yes, we can customize according to customer's requirements.
A: Yes, we can customize according to customer's requirements.
Question10
:
Package
A:
Standard export wooden case or other packages depending on products packaging weight is subject to the actual pack.
Question11:
How long is your warranty?
A:
The warranty period of our products is one year (excluding man-made damage and misuse). During the warranty period, we will provide maintenance videos or face-to-face videos to teach you. If the machine has serious quality problems, we support returning it.
Question 12:
What are your Payment Terms?
A: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
A: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Question 13:
Can you show how the machine works?
A:
Certainly, we will send you the Operating video & instruction to you together with machines, to help you use the machines better.
Question 14:
Do you have any other fish processing equipment?
A: Yes. we have fish pre processing equipment and deep process machinery, such as fish head removing machine, fish block making
machine, fish scaling machine, fish gutting machine, fish bone and meat separating machine, fish ball making machine.etc.
A: Yes. we have fish pre processing equipment and deep process machinery, such as fish head removing machine, fish block making
machine, fish scaling machine, fish gutting machine, fish bone and meat separating machine, fish ball making machine.etc.
