Quick Details
-
Brand Name:
-
HELI
-
Fork Length:
-
920MM
-
Fork Width:
-
122MM
-
Overall Dimensions:
-
1967*1120*2175MM
-
Weight (KG):
-
3580 kg
-
Product Name:
-

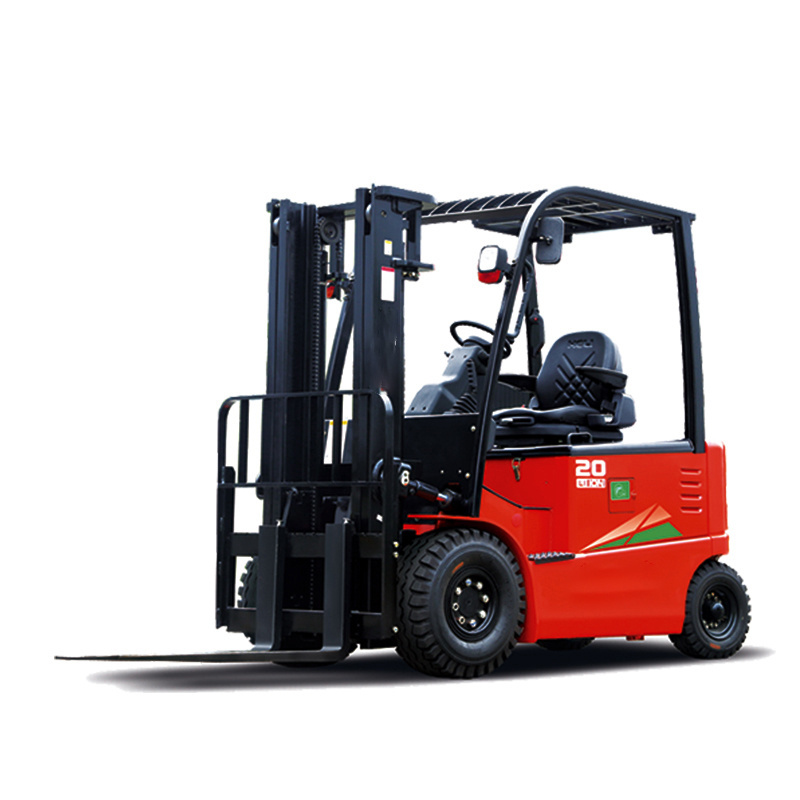

HELI electric forklift
-
Power type:
-
electric
-
Loading Capacity:
-
2000kg
Quick Details
-
Min. Lifting Height:
-
3M
-
Warranty:
-
3 years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HELI
-
Fork Length:
-
920MM
-
Fork Width:
-
122MM
-
Overall Dimensions:
-
1967*1120*2175MM
-
Weight (KG):
-
3580 kg
-
Product Name:
-
HELI electric forklift
-
Power type:
-
electric
-
Loading Capacity:
-
2000kg
Contact
Sales Manager:
Maya Wang
Whatsapp/wechat/mobile:
+86 13857502329
E-mail:
maya@liebty.com
Company: Liebty Machinery Technology(Hangzhou) Co.,Ltd
Address: Room 208,Building 3, No.1866, Binxing Road, Changhe Street, Bingjiang District, Hangzhou, Zhejiang, China
Products Description
Green and environmental protection:
Zero emission; low noise; Does not contain heavy metals; No drip corrosion; No acid mist volatile.
Maintenance-free
No need for fluid replacement and dust prevention; Free of daily maintenance; No manual maintenance.
Long life:
Recycle 4000 times and keep the capacity above 75%; In the same application, the life is far longer than that of lead-acid
batteries;
The high-performance lithium battery assembly has a 5-year or 10,000-hour long warranty.
High efficiency and energy saving:
1-2 hours of charging can meet 6-8 hours of operation;
High energy density, self-discharge rate below 1%/month, excellent charge and discharge performance;
95% energy conversion rate, energy conversion is more efficient;
Can be charged at any time, simple operation, no impact on battery life;
The battery does not need to be replaced, saving cost and safe operation.
Suitable for high and low temperature work
In the high and low temperature working environment between-25ºC and 55ºC, lithium batteries have better performance than lead acid.
High security:
According to the characteristics of industrial trucks, realize the truck safety protection design of lithium battery materials,
battery cell types, PACK technology and system power management;
"Multi-node safety closed-loop protection"realizes multi-state real-time closed-loop protection of trucks; The charging "lock
confirmation"function effectively avoids the "hot plug"operation;
The "full system emergency power-off" function can quickly cut off the truck control system and BMS power supply, which is safe and effective.
Specification
|
Model
|
|
|
CPD10
|
CPD15
|
CPD20
|
CPD25
|
CPD30
|
||||
|
Power type
|
|
|
Battery
|
Battery
|
Battery
|
Battery
|
Battery
|
||||
|
Rated capacity
|
|
kg
|
1000
|
1500
|
2000
|
2500
|
3000
|
||||
|
Load center
|
d
|
mm
|
500
|
500
|
500
|
500
|
500
|
||||
|
Lift height
|
h2
|
mm
|
3000
|
3000
|
3000
|
3000
|
3000
|
||||
|
Mast tilt angle (forward/backward)
|
α/β
|
Deg
|
6/12
|
6/12
|
6/12
|
6/12
|
6/12
|
||||
|
Front overhang
|
L3
|
mm
|
425
|
425
|
483
|
483
|
485
|
||||
|
Wheel-base
|
L4
|
mm
|
1370
|
1370
|
1500
|
1500
|
1700
|
||||
|
Tread(front/rear)
|
b4/b5
|
mm
|
890/920
|
890/920
|
970/950
|
970/950
|
1000/970
|
||||
|
Travel brake
|
|
|
Hydraulic-Foot pedal
|
|
|
|
|
||||
|
Parking brake
|
|
|
Mechanical-Hand level
|
|
|
|
|
||||
|
Lift speed(with/without load)
|
|
mm/s
|
260/400
|
260/400
|
260/400
|
260/400
|
280/420
|
||||
|
Lower speed (with/without load)
|
|
mm/s
|
(with load)<600 , (without load)>300
|
|
|
|
|
||||
|
Travel speed (with/without load)
|
|
km/h
|
11/12
|
11/12
|
11/12
|
11/12
|
13/15
|
||||
|
Max. gradeability (with load)
|
|
%
|
15
|
10
|
10
|
10
|
13
|
||||
|
Max. Towing (with/without load)
|
|
kN
|
6/5
|
6.5/5.5
|
9.4/7.5
|
9.8/8
|
11/9
|
||||
|
Weight Distribution with load(front/rear)
|
|
|
3350/500
|
3900/600
|
5250/720
|
5900/840
|
6920/1080
|
||||
|
Weight Distribution without load(front/rear)
|
|
|
1200/1650
|
1300/1700
|
1720/2250
|
1825/2415
|
2150/2850
|
||||
