The multi-linked film reel is used to coordinate the film pulling process, which is suitable for multi-roll film materials, the film pulling is smooth and not stuck.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
300
-
Voltage:
-
220v
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNOC
-
Dimension(L*W*H):
-
3370*670*1450
-
Name:
-
pillow pack machine
-
Bag type:
-
Back Sealing
-
Film width:
-
250/350/450/600/800mm
-
Bag length:
-
65-6000mm
-
Bag width:
-
30-400mm
-
Product height:
-
65-100mm
-
Packaging materials:
-
OPP,CPP,KOP,ALU-FILM
-
Power:
-
220V,50/60Hz
-
Advantage:
-
Automatic Wrapping Packing Sealing
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Function:
-
Wrapping, Sealing
-
Packaging Type:
-
Bags, Pouch
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
300
-
Voltage:
-
220v
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNOC
-
Dimension(L*W*H):
-
3370*670*1450
-
Name:
-
pillow pack machine
-
Bag type:
-
Back Sealing
-
Film width:
-
250/350/450/600/800mm
-
Bag length:
-
65-6000mm
-
Bag width:
-
30-400mm
-
Product height:
-
65-100mm
-
Packaging materials:
-
OPP,CPP,KOP,ALU-FILM
-
Power:
-
220V,50/60Hz
-
Advantage:
-
Automatic Wrapping Packing Sealing
-
Marketing Type:
-
Ordinary Product

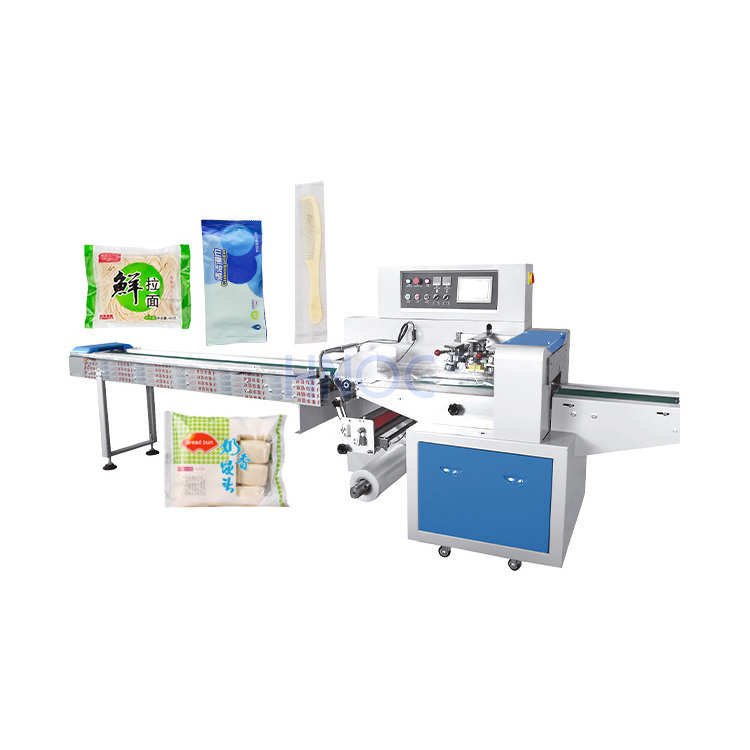

Lettuce Pillow Bag Counting Small Taffy Candy Mini Flow Pack Chocolate Lollipop Wrapping Machine
Product Description
Specification
|
Model
|
HNOC-ZBJ-250S
|
HNOC-ZBJ-250X
|
HNOC-ZBJ-350S
|
HNOC-ZBJ-350X
|
|
Film width
|
Max：250mm
|
Max：250mm
|
Max：350mm
|
Max：350mm
|
|
Bag length
|
65-190mm
120-280mm
|
65-6000mm
|
90-330mm
|
90-330mm
|
|
Bag width
|
30-120mm
|
30-120mm
|
30-160mm
|
30-160mm
|
|
Product height
|
Max：65mm
|
Max：65mm
|
Max：70mm
|
Max：70mm
|
|
Film roll diameter
|
Max：250mm
|
Max：320mm
|
Max：320mm
|
Max：320mm
|
|
Packaging speed
|
30-180bag/min
|
30-180bag/min
|
60-120bag/min
|
30-120bag/min
|
|
Packaging materials
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
|
Power
|
220V 50/60Hz 2.4KW
|
220V 50/60Hz 2.4KW
|
220V 50/60Hz 2.4KW
|
220V 50/60Hz 2.4KW
|
|
Machine size
|
3370*670*1450mm
|
3370*670*1450mm
|
3960*770*1450mm
|
3960*770*1450mm
|
|
Machine weight
|
300Kg
|
300Kg
|
350Kg
|
350Kg
|
|
Model
|
HNOC-ZBJ-450S
|
HNOC-ZBJ-450X
|
HNOC-ZBJ-600S
|
HNOC-ZBJ-600X
|
|
Film width
|
Max：450mm
|
Max：450mm
|
Max：600mm
|
Max：600mm
|
|
Bag length
|
130-450mm
|
130-6000mm
|
130-450mm
|
150-6000mm
|
|
Bag width
|
60-200mm
|
60-200mm
|
80-280mm
|
80-280mm
|
|
Product height
|
Max：90mm
|
Max：90mm
|
Max：110mm
|
Max：100mm
|
|
Film roll diameter
|
Max：320mm
|
Max：320mm
|
Max：400mm
|
Max：320mm
|
|
Packaging speed
|
25-120bag/min
|
25-120bag/min
|
20-100bag/min
|
20-80bag/min
|
|
Packaging materials
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
|
Power
|
220V 50/60Hz 2.6KW
|
220V 50/60Hz 2.6KW
|
220V 50/60Hz 3KW
|
220V 50/60Hz 3KW
|
|
Machine size
|
4020*820*1450mm
|
4020*820*1450mm
|
4380*970*1500mm
|
4380*970*1500 mm
|
|
Machine weight
|
300Kg
|
300Kg
|
300Kg
|
300Kg
|
|
Model
|
HNOC-DMZB-600XQD
|
HNOC-DMZB-800X
|
|
Film width
|
Max：600mm
|
Max：800mm
|
|
Bag length
|
150-6000mm
|
150-6000mm
|
|
Bag width
|
80-280mm
|
100-400mm
|
|
Product height
|
Max：150mm
|
Max：100mm
|
|
Film roll diameter
|
Max：320mm
|
Max：300mm
|
|
Packaging speed
|
10-60bag/min
|
25-150bag/min
|
|
Packaging materials
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP,OPP/CPP,KOP/CPP,ALU-FILM
|
|
Power
|
220V 50/60Hz 2.4KW
|
220V 50/60Hz 4.5KW
|
|
Machine size
|
4200*1000*1450mm
|
4300*1200*1500 mm
|
|
Machine weight
|
500Kg
|
650Kg
|
Product Details
Multi-link film reel
PLC
Supports multiple languages, easy to use and can store multiple sets of parameters.
Material conveyor belt
Customized on demand, the material contact parts are made of food-grade materials, which meet hygienic standards.
Heat sealing cutter
The rotary constant temperature hot air cutter seals both ends of the product to avoid folded edges and air leakage at the seal.
Emergency stop button
Safety first, in response to unexpected situations, the machine can be stopped in an emergency.
Optional coding machine, inflation device, etc.
Provide automatic printing product production date, filling gas and other functions.
