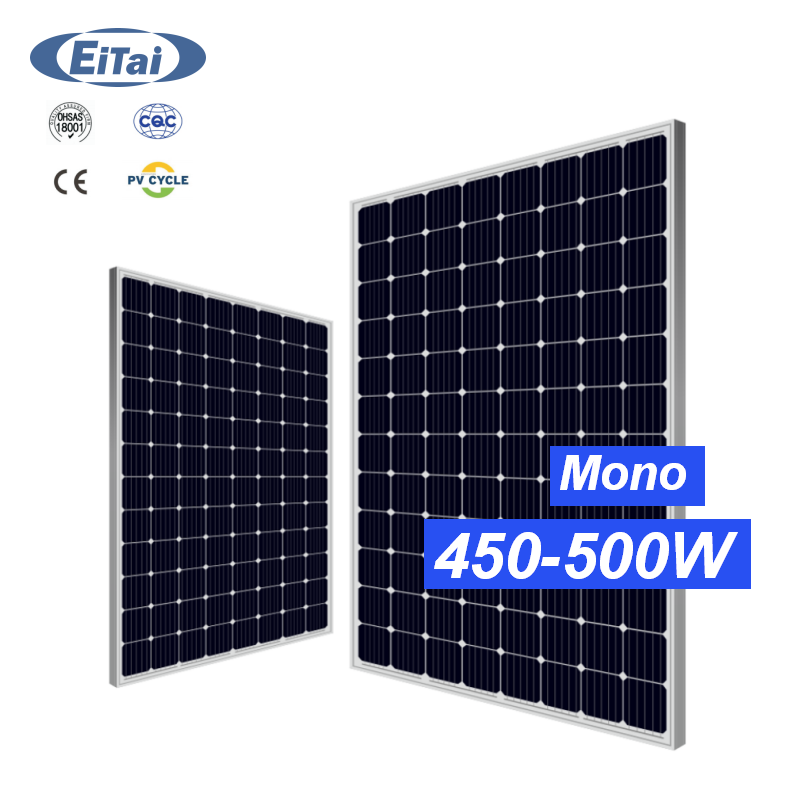

480W-500W Solar Panel Parameters
|
|
|
|
|
||||
|
Module
|
EPM480-500W(96)
|
|
|
|
||||
|
Encapsulation
|
Glass/EVA/Cell/EVA/Backsheet
|
|
|
|
||||
|
Size and Number of cells
|
156mm*156mm 96/8*12 pcs
|
|
|
|
||||
|
Maximum Power Pmax
|
W
|
480
|
490
|
500
|
||||
|
Maximum Power Voltage(Vmp)
|
V
|
48.3
|
48.5
|
48.7
|
||||
|
Maximum Power Current(Imp)
|
A
|
9.94
|
10.1
|
10.27
|
||||
|
Open Circuit Voltage(Voc)
|
V
|
57.96
|
58.2
|
58.44
|
||||
|
Short Circuit Current(Isc)
|
A
|
10.43
|
10.61
|
10.78
|
||||
|
Cell Efficiency
|
%
|
20.22
|
20.64
|
21.12
|
||||
|
Module Efficiency
|
%
|
18.92
|
19.32
|
19.71
|
||||
|
Tolerance
|
0+3%
|
|
|
|
||||
|
Max System Open Circuit Voltage
|
1500V
|
|
|
|
||||
|
Max Series Fuse Rating
|
15A
|
|
|
|
||||
|
Junction Box(protection degree)
|
≥IP67
|
|
|
|
||||
|
Dimension
|
1956*1310*40mm
|
|
|
|
||||
|
Weight
|
27.5kg
|
|
|
|
||||
|
Operate Temperture Scope
|
-40/+85°C
|
|
|
|
||||
|
Relative Humidity
|
0~100%
|
|
|
|
||||
|
Frame Thinkness
|
40/45/50mm
|
|
|
|
||||
|
Standard Test Conditions[STC]:irradiance 1000W/m²;AM1.5;module temperature 25°C.Measuring uncertainty of power is within ±3%.
|
|
|
|
|
||||
High efficiency 5BB PV cell
Anti-reflective glass Self Cleaning function Module Efficiency is increased by 3% Service life is as long as 25 years (30 years optional)
Conventional standalone Edition and engineering custom Edition Quality diode ensures Module running safety IP67 Protection level Heat Dissipation
Stock-size
Silvery and black
Thickness 30/35/40/45/50mm
Stress test
More protection with practical and effective design
Prevent the aluminum frame from scratching the hand
Using the rain to clean dirt remaining on the solar module
|
Payment Term
|
T/T
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
||
|
|
|
FOB
|
|
||
|
|
|
CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
||
|
|
|
CIF
|
|
||
|
|
L/C
|
L/C amount more then 50,00 USD, we can accept L/C at sight
|
|
||
|
|
West Union
|
Amount lower than 5000usd
|
|
||
|
|
West Union
|
|
|
||
|
Delivery Time
|
7~10days after receiving payment for one container
|
|
|
||
Eitai (Xiamen) New Energy Technology Co., Ltd was established in 2015,which is located in Fujian Province,China.EITAI is a high-tech, low pollution and green environmental protection enterprise.
EITAI is specialized in research, manufacturing and sales of high quality photovoltaic solar modules and PV system solutions. We produce solar panels ranging from 5w to 380w of both mono and poly silicon, folding solar panels, solar power light kit, etc. By 2018, EITAI has achieved 500MW annual capacity and has been honored with PID, INMETRO, CE, TUV, ISO, IEC 61215, CEC,ISO9001,ISO14001,ISO18001,CQC Ammonia test. Salt mist test, IEC 61730,etc.
We adhere to excellence and intend to be one of the best suppliers of solar solutions.
