Quick Details
-
Core Components:
-
Cutting Die
-
Product Name:
-
Coin Cell Punching Machine
-
Max. Stroke length:
-
25mm
-
Cutting Die:
-
3 - 24mm optional
-
Material:
-
Cr Plated Steel
-
Application:
-
Coin Cell Battery
-
Product Dimensions:
-
110mm(L) * 150mm(W) * 235mm(H)
-
Export Experience:
-
10 years
-
Provide:
-
OEM & ODM Service
-
Direct Factory:
-
with Low Price
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MRBEST
-
Weight (KG):
-
6
-
Core Components:
-
Cutting Die
-
Product Name:
-
Coin Cell Punching Machine
-
Max. Stroke length:
-
25mm
-
Cutting Die:
-
3 - 24mm optional
-
Material:
-
Cr Plated Steel
-
Application:
-
Coin Cell Battery
-
Product Dimensions:
-
110mm(L) * 150mm(W) * 235mm(H)
-
Export Experience:
-
10 years
-
Provide:
-
OEM & ODM Service
-
Direct Factory:
-
with Low Price
Product Description

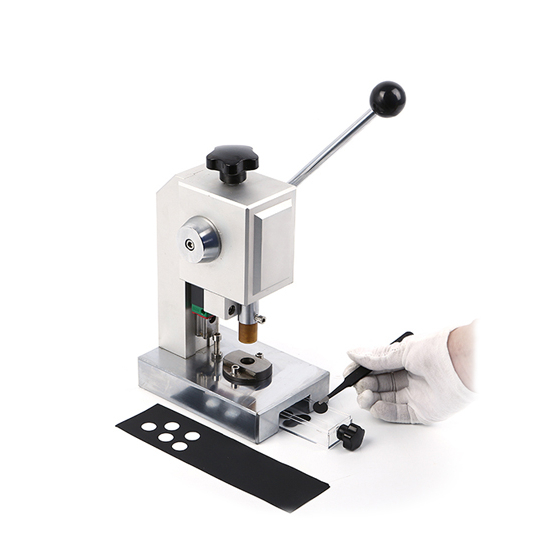

Battery Making Machine Precision CR20XX Coin Cell Disc Cutter Machine for Battery Separator Round Discs Cutting
Features
*The upper punch adopts high-precision slide guide, high punching precision, no burrs, burrs and indentations.
* Can cut a variety of battery materials from 0.005 to 0.5mm thick.
* Small size, easy to operate, flexible and fast to use, can pass freely in the glove box over Φ200mm in diameter.
* Exquisite and beautiful appearance, easy to clean and maintain, and small size.
*The body is made of aluminum alloy corrosion-resistant material, never rust.
* Can cut a variety of battery materials from 0.005 to 0.5mm thick.
* Small size, easy to operate, flexible and fast to use, can pass freely in the glove box over Φ200mm in diameter.
* Exquisite and beautiful appearance, easy to clean and maintain, and small size.
*The body is made of aluminum alloy corrosion-resistant material, never rust.
|
SPECIFICATIONS
|
|
|
|
Structure
|
Adopt aluminum alloy corrosion-resistant material and never rusts
|
|
|
Cutting Die
|
Optional 3 - 24mm customized dies are available upon request
|
|
|
Max. Stroke length
|
25mm
|
|
|
Product Dimensions
|
110mm(L) x 150mm(W) x 235mm(H)
Compact size which can be put into glovebox through air lock chamber |
|
|
Warranty
|
One year limited manufacturer warranty with lifetime support. Rusting and damage due to improper storage condition or maintenance are not covered by warranty.
|
|
|
Application Notes
|
If you are going to make CR2016, CR2025 or/and CR2032 coin cell batteries, you will need at least three cutting dies:
16mm (for negative side case, which is 16.5mm in diameter) 19mm (for positive side case, which is 20mm in diameter) 20 mm (for separator to fully separate the electrodes in both negative and positive cases) For CR2450 coin cells, a 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die can be used for cutting either electrode discs or separator discs (the 24mm cutting die can be purchased as optional die) Separator discs must be large enough to fully separate the positive and negative electrodes to avoid short-circuit inside the coin cells Warning: You must pay great attention to install die or change die from one size to another. The tolerance of precision die is very little. Please contact us if you have any question. Misalignment will result die damage. Please read operation manual and watch instruction video carefully when changing die. MRBEST is not responsible for the damage caused by misoperation . |
|
|
Net Weight
|
6kg
|
|
|
Tool Included
|
M5 wrench 1pc
|
|
|
Disc Collection Box:
|
Anti-static, ABS material
|
|
|
Shipping Dimension
|
270*220*380mm
|
|
|
Gross Weight
|
10kg
|
|
Instructions
Punching: Place the material to be punched on the lower template and shake the hand lever. The upper punch moves down into the lower mold, cuts the material, and removes the cartridge.
Maintenance methods and precautions
1. After each use, wipe the mold and the body parts with a clean cloth dipped in alcohol. Apply anti-rust oil when not use
2. Always wipe the guide rails and other moving parts to keep it clean, and lubricate and keep the movement smooth.
3. Regularly check the screws, nuts, pins and other fasteners on all parts of the punching machine to prevent loosening and prevent the quality accidents and personal accidents of the punching machine.
2. Always wipe the guide rails and other moving parts to keep it clean, and lubricate and keep the movement smooth.
3. Regularly check the screws, nuts, pins and other fasteners on all parts of the punching machine to prevent loosening and prevent the quality accidents and personal accidents of the punching machine.
