Quick Details
-
Brand Name:
-
Zongon
-
Machinery Capacity:
-
100kg/pot, 200kg/pot, 300kg/pot
-
Machinery Function:
-
cooking and mixing
-
Product name:
-
jacketed kettle
-
Color:
-
Silver
-
Design pressure:
-
0.35 Mpa
-
Heating way:
-
Steam Boiler,gas,electric
-
Control system:
-
Fully Automatic
-
After-sales Service Provided:
-
Overseas service center available
Quick Details
-
Weight (KG):
-
150
-
Core Components:
-
sus30408
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zongon
-
Machinery Capacity:
-
100kg/pot, 200kg/pot, 300kg/pot
-
Machinery Function:
-
cooking and mixing
-
Product name:
-
jacketed kettle
-
Color:
-
Silver
-
Design pressure:
-
0.35 Mpa
-
Heating way:
-
Steam Boiler,gas,electric
-
Control system:
-
Fully Automatic
-
After-sales Service Provided:
-
Overseas service center available

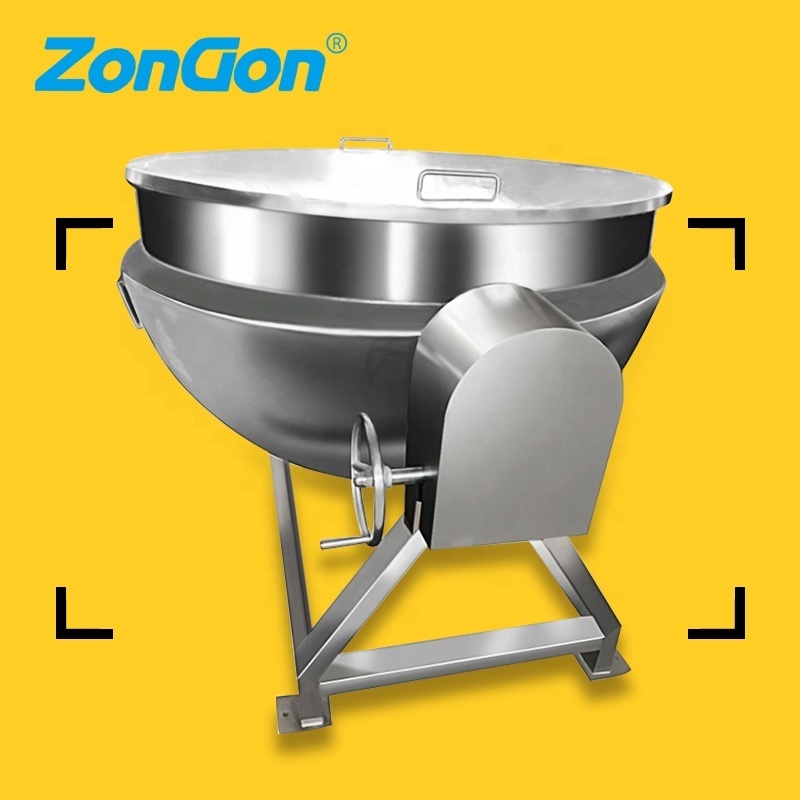

Heating Electric/Gas 50L/100L Tilting Cooking Mixer for Chocolate sauce,Bean Paste,Sugar Caramel
Technical Parameters
Usage
With steam, gas and heat conducting oil as heat source, it is cheap and easy to operate. It has the characteristics of large heating area and high thermal efficiency. The advantages of the material are fast heating, uniform heating and easy control of heating temperature. This product is made of stainless steel, which meets the requirements of the Food Hygiene Law of the People's Republic of China. It has beautiful appearance, reasonable design, compact structure, convenient installation, simple operation and easy maintenance.
Advantage
The equipment to a certain pressure of steam as heat source (also optional electric heating), with a heating area, high thermal efficiency, heating uniformity, liquid material boiling time is short , easy to control the heating temperature and so on.
Electric Heated Jacket Pot with Mixer
|
Model |
50 |
100 |
200 |
300 |
400 |
|
|
Caliber(mm) |
Φ600 |
Φ700 |
Φ800 |
Φ900 |
Φ1000 |
|
|
Depth of pot(mm) |
400 |
450 |
530 |
630 |
680 |
|
|
Heating area(m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
|
|
Boiling time(min) |
5 |
8 |
11 |
14 |
18 |
|
|
Interface size |
Steam pipe |
3/4” |
1” |
|||
|
Condensate pipe |
3/4” |
|||||
|
Working pressure |
≤0.09Mpa/0.25Mpa/0.5Mpa(can be adapted according to customers’ requirement) |
|||||
|
Stirring power(kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
|
|
Stirring speed |
36r/min(can be adapted according to customers’ requirement) |
|||||
|
Scraping edge stirring power(kw) |
0.75 |
0.75 |
1.1 |
1.5 |
1.5 |
|
* Sample testing support. training how to use the machine.
* View our Factory. * Engineers available to service machinery overseas.
Exporting package , per your requirements
Before delivery, our professional technician will do trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.
When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container.
Our company was established in 2002, and we are committed to engaging in food fully automatic new atmosphere retorts, automatic universal cooking pot, new gas modulation nitrogen machine, new modified atmosphere packaging machines, new modified atmosphere food technology, conventional high-temperature sterilization pot sandwich pot research, design, manufacturing, modern services in one company, and our company has a national pressure vessel manufacturing license qualification(Certificate Number: TS2237350-2013), and successfully passed the food safety regulator's Shandong Province, the KYL type retorts Open the door security chain device identification(ID: SY-WT-2010-0019), and the products have passed the ISO9001 international management system certification, and our company has independent import and export operation rights.
WE ALWAYS EXPLOR ALL THE POSSIBILITIES TO HELP CUSTOMERS TO SOLVE PROBLEMS AND UPGRADE THEIR PRODUCTS QUALITY.
1. Q: Are you manufacturer factory ?
A: Yes,we are.
2. Q: What's the MOQ ?
A: ≥ 1unit.And large quantity the price is negotiable.
3. Q:What's the delivery time?
A: It will take 1 0- 30 days to finish an order, but the exact time is according to actual situation.
4. Q: May I have my own customized product?
A: Of course, you products can be custom iz ed , for example size , logo, design, mark, etc.
5. Q: Can trust you ?
A: High quality is our promise . We have 17 years experience producing food processing machines in China.Therefore that is why our products popular in foreign countries, and have a very hot market.
