Filling accuracy expectation of:
●
± 2% (for 50 ml to 500 ml fill volume)
●
± 1% (for 50ml to 150 ml fill volume)
●
± 0.5% (over 150 ml fill volume)
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
≥ 99.7%
-
Voltage:
-
120v 50hz
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Bottlinglife
-
Dimension(L*W*H):
-
2150x1450x2000
-
Weight:
-
450 KG
-
Product name:
-
Bottlinglife
-
Function:
-
Filling Capping Labeling
-
Bottle type:
-
PET Plastic Bottle Glass Bottle
-
Feature:
-
High Precision Filling Level
-
Type:
-
Filling Mchine, Filling Machine
-
Control:
-
PLC+HMI
-
Production capacity:
-
1800-2500 Bottles
-
Filling products:
-
Hot Sauce
-
Packing material:
-
PET GLASS BOTTLE
-
Model:
-
SHS-ME10
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Plastic, Wood, Other
-
Filling Material:
-
Beer, Other, Milk, Water, Oil, Juice, Powder, jam, paste, Lotion, Cream
-
Filling Accuracy:
-
≥ 99.7%
-
Voltage:
-
120v 50hz
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Bottlinglife
-
Dimension(L*W*H):
-
2150x1450x2000
-
Weight:
-
450 KG
-
Product name:
-
Bottlinglife
-
Function:
-
Filling Capping Labeling
-
Bottle type:
-
PET Plastic Bottle Glass Bottle
-
Feature:
-
High Precision Filling Level
-
Type:
-
Filling Mchine, Filling Machine
-
Control:
-
PLC+HMI
-
Production capacity:
-
1800-2500 Bottles
-
Filling products:
-
Hot Sauce
-
Packing material:
-
PET GLASS BOTTLE
-
Model:
-
SHS-ME10
Product Paramenters
|
Description
|

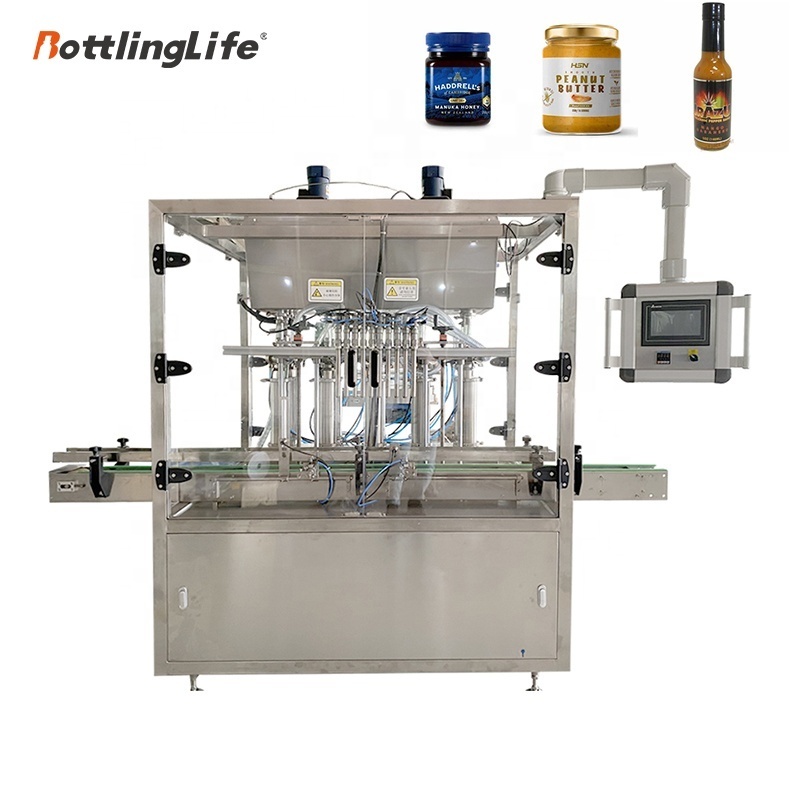

Automatic Hot Sauce Filling Machine
|
|
Filling Nozzel
|
4/6/8/10
|
|
Weight
|
400KG
|
|
Filling Capacity
|
100ml-1000ml
|
|
Filling Speed
|
30/bpm
|
|
Air Pressure
|
0.6Mpa
|
|
Volt
|
220V
|
|
Power
|
4kw
|
The Equipment intergrates Feeding-Filling -Capping-Labeling
Product Details
Filling accuracy expectation of
Filling Nozzle
●
Stainless steel 316L
● Spring loaded ball check valve
● With re-enforce silicon hoses (food Grade) for product transfer
● Custom attachment system for BottlingLife equipment
● Final design adapted to the product to be fill (To Be Confirm)
● Spring loaded ball check valve
● With re-enforce silicon hoses (food Grade) for product transfer
● Custom attachment system for BottlingLife equipment
● Final design adapted to the product to be fill (To Be Confirm)
Filling Nozzle with Shut Off System
●
Preventing dripping with viscous & semi viscous products
● Stainless steel 316L
● Pneumatic activated plunger for sealing the nozzle
● Quick disconnect air hose system for wash down
● Dismantling of the nozzle with the usage of any tools
● With re-enforce silicon hoses (food Grade) for product transfer
● Stainless steel 316L
● Pneumatic activated plunger for sealing the nozzle
● Quick disconnect air hose system for wash down
● Dismantling of the nozzle with the usage of any tools
● With re-enforce silicon hoses (food Grade) for product transfer
Volumetric Piston for Liquid Products
●
Ball check valve in stainless steel 316L
● Stainless steel 316L Volumetric chamber
● Pistons with autoclavable packing, GMP approved material
● “Tri Clamp” Attachment system
● Infeed Ø out feed Ø
● Dismantling of the complete piston without tool
● Servo motor control
● Stainless steel 316L Volumetric chamber
● Pistons with autoclavable packing, GMP approved material
● “Tri Clamp” Attachment system
● Infeed Ø out feed Ø
● Dismantling of the complete piston without tool
● Servo motor control
Features
Euroguard Safety Interlock System
●
6 mm (¼’’) thick tempered glass barrier doors shield the machine perimeter
● Doors are mounted on stainless steel tubing which also enclosed the electrical wirings.
● Safety interlocks are installed to ensure the safety of the operators before
● Doors are mounted on stainless steel tubing which also enclosed the electrical wirings.
● Safety interlocks are installed to ensure the safety of the operators before
Structure
●
Frame in anodized aluminum completely covered in stainless steel 304 * Adjustable support legs for in-line positioning and
levelling. with ± 38 mm (1 ½ ‘’) adjustment capability
● Raised working surface for easy cleaning
● Machine as multiple brushless motors for a smooth and
flexible machine operation
● Electrical and mechanical part located inside the machine frame for a complete protection
● Top plate of the base completely sealed against liquid
● infiltration protecting all internal mechanical parts
levelling. with ± 38 mm (1 ½ ‘’) adjustment capability
● Raised working surface for easy cleaning
● Machine as multiple brushless motors for a smooth and
flexible machine operation
● Electrical and mechanical part located inside the machine frame for a complete protection
● Top plate of the base completely sealed against liquid
● infiltration protecting all internal mechanical parts
Control System
●
Stainless steel panel control
● Stainless steel, tubular holding post with Twin axis swivel panel control
● Emergency Stop on the control panel
● Machine controlled with industrial PLC
● (7’’) multi-color touch screen control• HMI resolution
● Programmable feeder, conveyor speed, etc.
● For normal machine operation with alarm display
● Possibility to have different language interfaces
● Stainless steel, tubular holding post with Twin axis swivel panel control
● Emergency Stop on the control panel
● Machine controlled with industrial PLC
● (7’’) multi-color touch screen control• HMI resolution
● Programmable feeder, conveyor speed, etc.
● For normal machine operation with alarm display
● Possibility to have different language interfaces
