- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
YXFiber
-
Use:
-
FTTX
-
Warranty Time:
-
1 Year
-
Voltage Supply:
-
5V
-
Transmission Speed:
-
10/100Mbps
-
Wavelength:
-
1310/1550nm
-
Transmission Distance::
-
20KM
-
Connector Type:
-
SC
-
Fiber Type:
-
SM
-
Certification:
-
CE RoHS FCC
Quick Details
-
Type:
-
Fiber optic media converter
-
Model Number:
-
Media Converter
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
YXFiber
-
Use:
-
FTTX
-
Warranty Time:
-
1 Year
-
Voltage Supply:
-
5V
-
Transmission Speed:
-
10/100Mbps
-
Wavelength:
-
1310/1550nm
-
Transmission Distance::
-
20KM
-
Connector Type:
-
SC
-
Fiber Type:
-
SM
-
Certification:
-
CE RoHS FCC

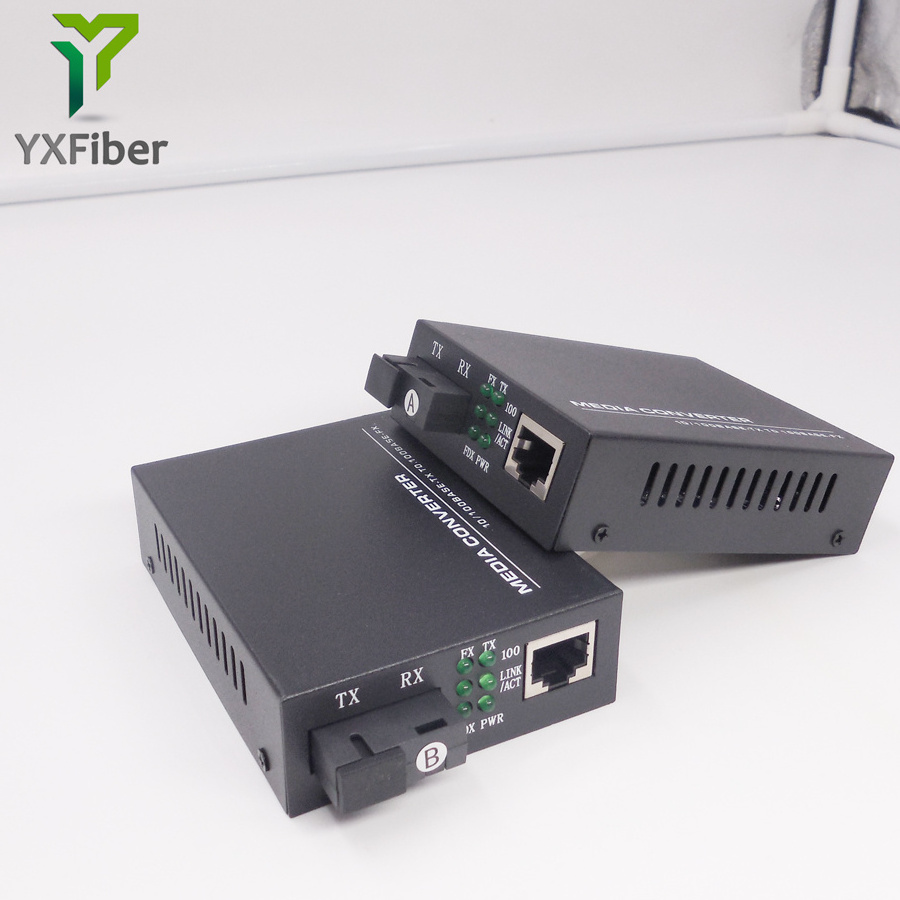

Media Converter 10/100M Fiber Optic RJ45 SC Connector
Features
* In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3z, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree.
* Hot Pluggable & Wall-Mountable.
* Stable performance more than 50thousand hours with fault-free.
* Unique IC solution applied.
* Supports 10/100Mbps full/half duplex, easy upgrades.
* Auto MDI/MDI-X.
* Auto Negotiation.
* Support flow control.
* Concentrated into BT-EF16-D220(16slot for media converter cards) or BT-EF14-D220(14slot for media converter standalone type) 2U rack-mount chassis.
* Stable performance more than 50 thousands hours with fault-free.
* In conformity with safety code of FCC, CE and RoHS.
Specification
Application
* Extend your Ethernet connection up to 0~25km away using fiber optics
* Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones
* Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
* Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network
