Quick Details
-
Weight:
-
180 KG
-
Dimension(L*W*H):
-
1200x800x1380mm
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Voltage:
-
220V/50HZ
-
Power:
-
2.5kw
-
Weight:
-
180 KG
-
Dimension(L*W*H):
-
1200x800x1380mm

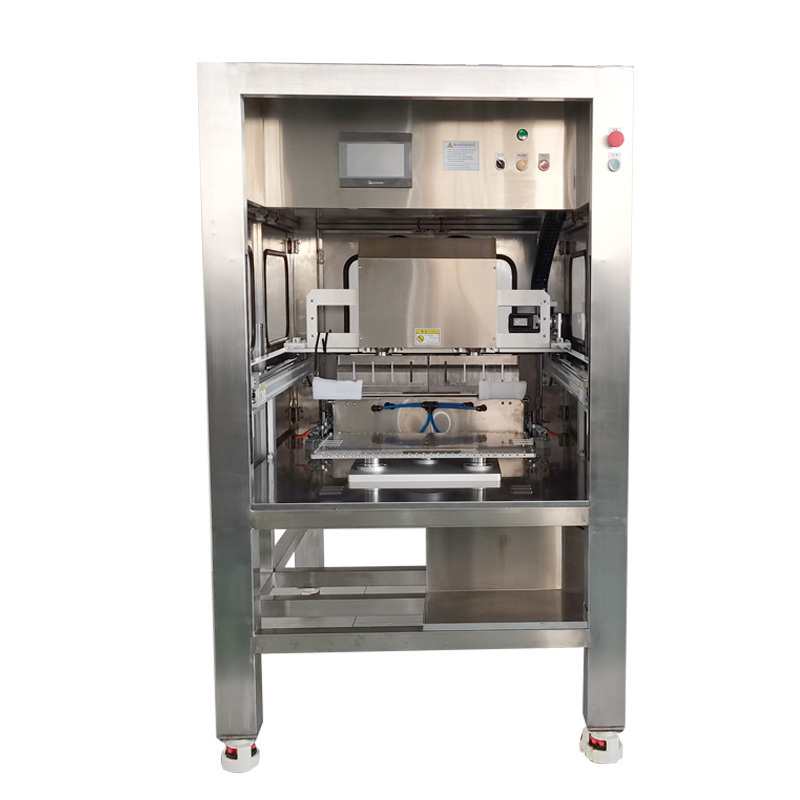

PAPA PU600 Ultrasonic food cake cutting machine High cutting efficiency, the fastest can reach 1 second/knife; suitable for cutting various frozen food cakes
Cutting: ultrasonic cheesecake cutting, ultrasonic mousse cake cutting, ultrasonic chiffon cake cutting, ultrasonic sponge cake cutting, ultrasonic layered cake
cutting
cutting, ultrasonic tiramisu cake cutting, ultrasonic Napoleon cake cutting, ultrasonic swiss roll cutting; using imported titanium alloy cutter, the cutting surface is fine and not
Sticky knife, with automatic knife washing function; can be configured to food cake production line according to customer needs, to achieve mass production of ultrasonic food cake cutting.
Description:
PAPA PU600 Ultrasonic food cake cutting machine High cutting efficiency, the fastest can reach 1 second/knife; suitable for cutting various frozen food cakes
Cutting: ultrasonic cheesecake cutting, ultrasonic mousse cake cutting, ultrasonic chiffon cake cutting, ultrasonic sponge cake cutting, ultrasonic layered cake
cutting
cutting, ultrasonic tiramisu cake cutting, ultrasonic Napoleon cake cutting, ultrasonic swiss roll cutting; using imported titanium alloy cutter, the cutting surface is fine and not
Sticky knife, with automatic knife washing function; can be configured to food cake production line according to customer needs, to achieve mass production of ultrasonic food cake cutting.
Feature:
1. It can keep not cross-color between multi layers for cutting multi-layer cakes.
2. Ultrasonic knife cutting, fine cutting, no slags, no stick on knife
3. It can cut into sheet, rectangle,triangle and Equidistant Circle.
4. Wide cutting field, besides cake, it can also cut the frozen products and cream products
5. It can do customized cutting machine according to the customer ’ s requirements.
Product shape: square / triangle / piece / diamond / circle
Ultrasonic cutting machine specification :
|
Model |
PU600 |
|
Dimensions |
1050*1450*1750mm |
|
Weight |
Net Wt. 3 7 0KGS, Gross Wt.48 0KGS |
|
Voltage |
220V /380v |
|
Rated power |
2kw |
|
Frequency |
50Hz-60Hz |
|
Cutting speed |
1 cuts/minute |
|
Number of blades |
2 group blades |
|
Blade materials |
Titanium Alloy |
|
Blade size |
305mm *2 |
|
Cut type |
Square, rectangular, cake slice, triangle shape, |
|
Maximum cutting size |
600mmx400mm,food cutting height up to 80mm, blade up height:100mm. food height exceeds 80 mm can be customized |
|
Material of machine frame |
Stainless Steel |
|
Self cleaning |
Yes need water and |
|
Safety protection system |
Infrared inspection, frequency ultrasonic scan and fault indicator lamp |
|
Control System |
Four-axis Control System |
|
Cutting knife control system |
Servo motor |
|
Machine mobility |
Casters |
|
Certification |
CE |
