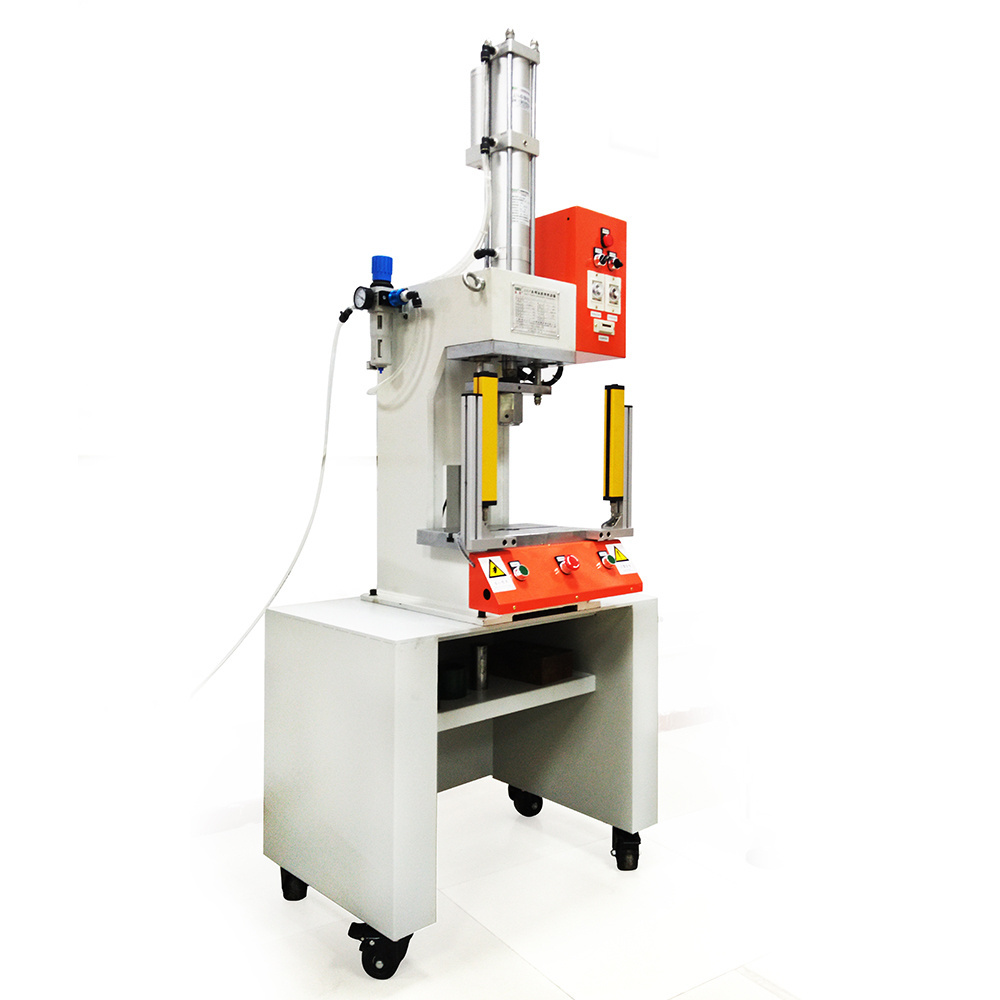

Quick Details
-
Dimension(L*W*H):
-
600*600*1320 mm
-
Model Number:
-
JLYC-20t
-
Warranty:
-
one year
-
Weight:
-
460KG
-
Power:
-
AC220V 50HZ
-
Certification:
-
CE
-
Pressure capacity:
-
20 tons
-
Max Height:
-
240MM
-
Cylinder:
-
Diameter 125mm
-
Driving Pressure:
-
0.4-0.7MPA
-
Output Pressure:
-
13900KGF-24500KGF
-
Start Button:
-
Two Hand Safety Push Buttons
-
Safety Sensor:
-
Customer Optional
-
Strcture Type:
-
C Frame
-
Processing material:
-
Metal Sheet, Carbon Steel, Stainless Stee
-
Custom-tailor:
-
Accept
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JULY
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
600*600*1320 mm
-
Model Number:
-
JLYC-20t
-
Warranty:
-
one year
-
Weight:
-
460KG
-
Power:
-
AC220V 50HZ
-
Certification:
-
CE
-
Pressure capacity:
-
20 tons
-
Max Height:
-
240MM
-
Cylinder:
-
Diameter 125mm
-
Driving Pressure:
-
0.4-0.7MPA
-
Output Pressure:
-
13900KGF-24500KGF
-
Start Button:
-
Two Hand Safety Push Buttons
-
Safety Sensor:
-
Customer Optional
-
Strcture Type:
-
C Frame
-
Processing material:
-
Metal Sheet, Carbon Steel, Stainless Stee
-
Custom-tailor:
-
Accept
JULY ® was founded in 1985 with more than 31 years of R&D and OEM experience.
|
Drawing
Specification
| Model | 3T | 5T | 10T | 15T | 20T | 30T | 40T | 50T |
| Max height | 245 | 245 | 245 | 245 | 240 | 300 | 300 | 300 |
| Cylinder specification | Ø63mm | Ø80mm | Ø100mm | Ø125mm | Ø125mm | Ø160mm | Ø160mm | Ø180mm |
| Power |
AC220V 50Hz |
AC220V 50Hz |
AC220V 50Hz |
AC220V 50Hz |
AC 220V 50HZ |
AC 220V 50HZ |
AC 220V 50HZ |
AC 220V 50HZ |
| Driving pressure |
0.4-0.7 MPa |
0.4-0.7 MPa |
0.4-0.7 MPa |
0.4-0.7 MPa |
0.4 - 0.7 mpa |
0.4 - 0.7 mpa |
0.4 - 0.7 mpa |
0.4 - 0.7 mpa |
| Weight | 180kg | 200kg | 280kg | 320kg | 460 kg | 1020 kg | 1360 kg | 1680 kg |
| Driven pressure | Theoretical output | |||||||
| 0.4MPa | 2000Kgf | 4000Kgf | 6240Kgf | 10240Kgf | 13900 kgf | 20100 kgf | 26000 kgf | 39600 kgf |
| 0.5MPa | 2500Kgf | 5000Kgf | 7800Kgf | 12800Kgf | 17500 kgf | 25000 kgf | 32600 kgf | 49600 kgf |
| 0.6MPa | 3000Kgf | 6000Kgf | 96360Kgf | 15350Kgf | 20900 kgf | 30000 kgf | 39000 kgf | 59500 kgf |
| 0.7MPa | 3500Kgf | 7000Kgf | 10920Kgf | 17900Kgf | 24500 kgf | 35000 kgf | 45700 kgf | 69400 kgf |
Characteristics
1.It is pneumatically driven,export thrust,simple to operate.
2.No hydraulic system noise, can save electricity consumption and thus reduce production costs.
3.Adjustable cylinder stroke and customized for special request.
4.Easy to adjust the output, the required pressure can be reached by simply regulating the air pressure.
5.Safety and humanity design that ensure operation comfort and long lifespan .
6.Allows adding heating modules and temperature controller, as well as forcing transducer additionally.
7.Available working platform: 500*560*610mm (L*W*H).
Advantages
1. Faster drive speed and more stable pressure transmission than hydraulic press machine.
2. Simple device, easy adjustment, convenient maintenance.
3. High output, up to the oil pressure.
4. Cheaper price than hydraulic press machine.
5. Simple maintenance, easy to clean the working environment.
6. Convenient to obtain the power source (air).
7. Convenient energy conversion, oil tight.
8. Easy and light equipment, easy to handle.
9. Low action noise.
10. Saving more energy than hydraulic press machine.
11. No trouble of temperature rising of oil pressure system.
Application
stamping, bending, cutting, punching, embossing, riveting, plastic sheet metal, tight assembly, extrusion molding, profile welding, material testing,etc.
