Quick Details
-
Product name:
-

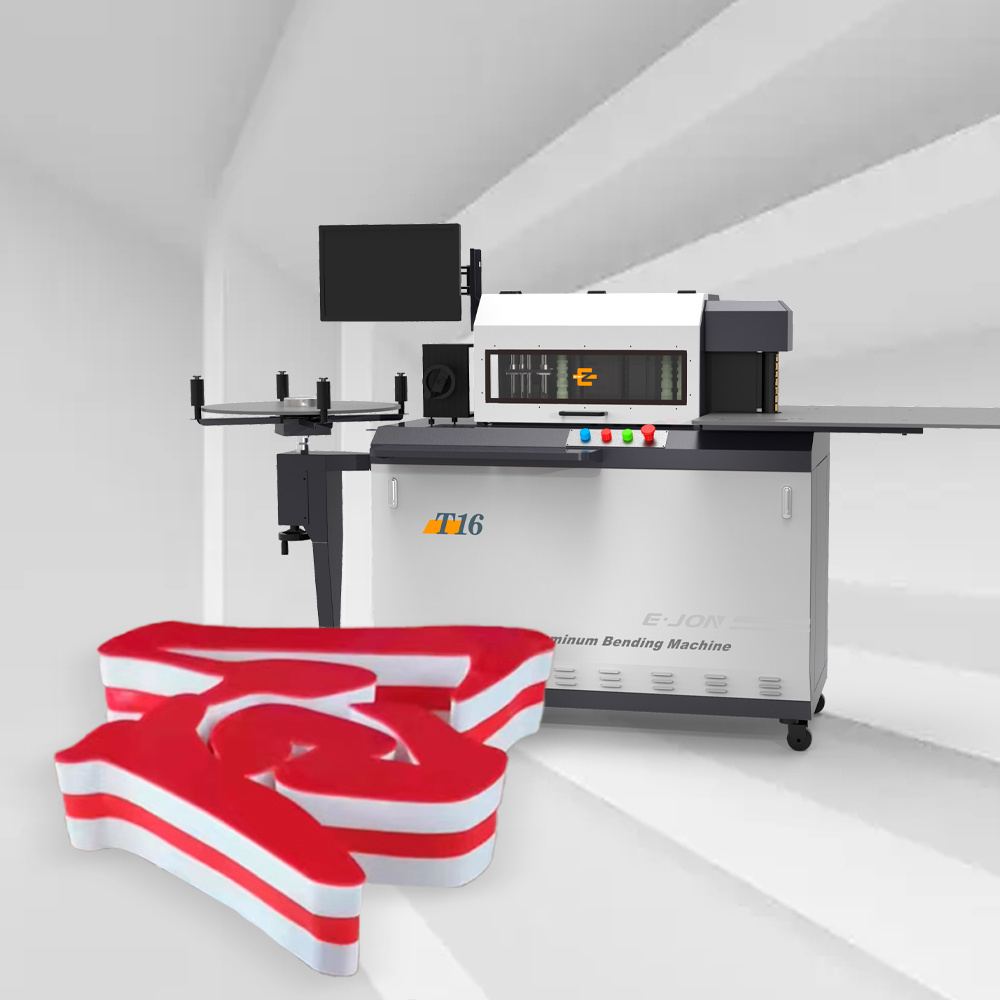

aluminum profile channel letter bending machine
-
Machine Type:
-
Roller-Bending Machine
-
Processing material:
-
Aluminum plate ,aluminum profile
-
Power:
-
AC220V,50Hz,2.0Kw
-
After-sales Service Provided:
-
technical support by video or on line
-
Material thickness:
-
0.4~1.2 mm
-
Slotting System:
-
Milling wheel cutter
-
Bending method:
-
Double-bends bending
-
FEEDING SYSTEM:
-
Rolling Typed Continuous Feeding System
-
Package Size:
-
1220*660*1290mm
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
EJON
-
Weight (KG):
-
252
-
Product name:
-
aluminum profile channel letter bending machine
-
Machine Type:
-
Roller-Bending Machine
-
Processing material:
-
Aluminum plate ,aluminum profile
-
Power:
-
AC220V,50Hz,2.0Kw
-
After-sales Service Provided:
-
technical support by video or on line
-
Material thickness:
-
0.4~1.2 mm
-
Slotting System:
-
Milling wheel cutter
-
Bending method:
-
Double-bends bending
-
FEEDING SYSTEM:
-
Rolling Typed Continuous Feeding System
-
Package Size:
-
1220*660*1290mm


SPECIFICATIONS
|
|
|
|
|||
Slotting Angle
|
60°~120°
|
|
|
|||
Slotting System
|
Alloy milling cutter system
|
|
|
|||
Bending Method
|
copper column extrusion + flapping
|
|
|
|||
Overall Dimensions
|
L2500mm×W860mm×H1325mm
|
|
|
|||
Suitable Material
|
Aluminum plate︱3D composite material︱single side aluminum profile︱channelume
|
|
|
|||
Material Height
|
10~160 mm
|
|
|
|||
Material Thickness
|
0.3 ~1.0 mm
|
|
|
|||
Bending Radius
|
≥R10
|
|
|
|||
File Format
|
*.dxf, *.plt
|
|
|
|||
Power
|
AC 220 V, 50~60 Hz
|
|
|
|||
Total Weight
|
276 kg
|
|
|
|||
Total Power
|
1000W
|
|
|


Computer
To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.
Computer configuration :
XP system or window7 32-bit system,
and requires
a PCI card slot to install the control card.
Pump
The equipment should be equipped with
air compressor
, we suggest that the selection of
more than 4 kW, the gas flow is 0.6m³/min.
File Format
The software of bending machine is self-developed.
Import file format supports
.Dxf.Plt .AI
We recommend using
Coredraw or adobe illustrator
to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.
2. Free training course at our plant or on line. We also provide technicians for on-site training if you need.
3. After the warranty period, we will provide the consumable parts at an agency price when you need replacement.
4. Whole machine testing before delivery.
5. After machine arrived, you just need to connect power supply, software etc, it's more simple and easier for you. If you're
worried, we can take a teaching video for you at that time.
6. After machine shipped, I'll prepare some documents, like B/L, Packing list, Commercial invoice, Sales contract, CE
Certification for helping you pick up your machine.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine.
* Training how to use the machine.
* Engineers available to service machinery overseas.
