Quick Details
-
Size:
-
20/40ft
-
Place of Origin:
-
Shandong, China
-
Product name:
-

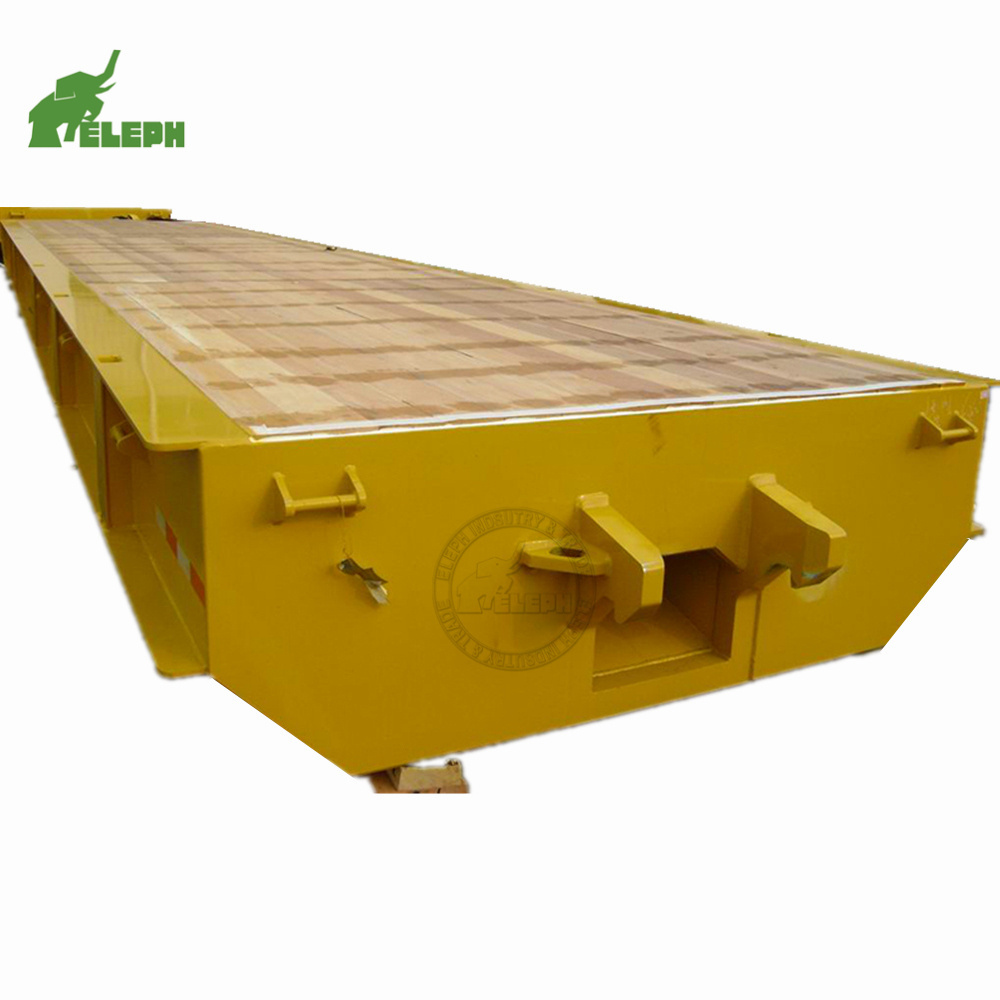

40ft 100 ton Port Transport Low Loader Deck Lowbed Mafi Roro Trailer
-
Keywords:
-
mafi trailer
-
Axle:
-
FUWA
-
Main Beam:
-
Hight:500mm
-
Suspension:
-
Mechanical Leaf Spring Suspension
-
Function:
-
Transport 20ft 40ft Container
-
Landing Gear:
-
Standard 28Ton
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Brake System:
-
Dual Line Braking System
-
Application:
-
Container Loading
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
25001-30000 kg
-
Brand Name:
-
ELEPH
-
Size:
-
20/40ft
-
Place of Origin:
-
Shandong, China
-
Product name:
-
40ft 100 ton Port Transport Low Loader Deck Lowbed Mafi Roro Trailer
-
Keywords:
-
mafi trailer
-
Axle:
-
FUWA
-
Main Beam:
-
Hight:500mm
-
Suspension:
-
Mechanical Leaf Spring Suspension
-
Function:
-
Transport 20ft 40ft Container
-
Landing Gear:
-
Standard 28Ton
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Brake System:
-
Dual Line Braking System
-
Application:
-
Container Loading
Bulk Cargo Transport Port Using Roro Gooseneck 40ft 45ft Mafi Trailer
|
Eleph9231Sbt |
||
|
Overall Size |
12640*2650*742Mm |
|
|
Usage |
Transport 20ft/40ft Containers Or Loose Cargo On Roro Ship |
|
|
Rated Capacity |
60000kgs |
|
|
Tare Weight |
8000kgs |
|
|
Loading Deck L |
12400mm |
|
|
Rear Overhang |
3500Mm |
|
|
Axle Center Distance |
8315mm+1100mm |
|
|
Type |
Low Bed |
|
|
Wood Floor |
Tropical Hard Wood |
|
|
Axles |
Port Trailer Axles |
4 Sets |
|
Tyre |
28*22*22 Pressed-On Solid Tyre |
10 Sets(With 2sets Spare Tyres) |
|
Material |
High Strength Low Alloy Steel With 345Mpa Yield Strength Is Used For Welded H Beam And Fabricated Parts |
|
|
Main Beam |
Fabricated H Beam 540*200mm Top Plate:22mm Bottom Plate:25mm |
|
|
Deck |
45mm T Plankwood |
|
|
Kingpin Plate |
16mm Steel Plate Q345B |
|
|
Kingpin |
2 Bolt On Type |
|
|
Features |
Running Gear 2 Rocker Arms Lowered Box Construction 4 Axles 140x140, 100/80mm Paper Roller Bearings (30216/32020) 8 Steel Reinforced Solid Rubber Tires(22*16*16) |
|
