Quick Details
-
CPU:
-
Intel Elkhart Lake Celeron X6425E 2.0GHz
-
Chipsets:
-
Integrated with Intel SoC
-
Harddisk:
-
1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA
-
Memory:
-
DDR4L 3200MHz 4GB, MAX 32GB
-
I/O Ports:
-
1 x DP/1 x H-DMI, 3x LAN, 4 x USB3.0 / 2 x USB2.0, 2 x RS-232 optional
-
Material:
-
Aluminum Alloy Shell
-
Wireless Network:
-
WiFi / BT / 4G / 5G Optional
-
TPM:
-
TPM 2.0
-
Power Input:
-
9V~36V
-
Operating System:
-
Win10 / 11, Linux, Ubuntu, Debian
Quick Details
-
Type:
-
Embedded Fanless Industrial PC
-
Brand Name:
-
Innoyond
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Intel Elkhart Lake Celeron X6425E 2.0GHz
-
Chipsets:
-
Integrated with Intel SoC
-
Harddisk:
-
1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA
-
Memory:
-
DDR4L 3200MHz 4GB, MAX 32GB
-
I/O Ports:
-
1 x DP/1 x H-DMI, 3x LAN, 4 x USB3.0 / 2 x USB2.0, 2 x RS-232 optional
-
Material:
-
Aluminum Alloy Shell
-
Wireless Network:
-
WiFi / BT / 4G / 5G Optional
-
TPM:
-
TPM 2.0
-
Power Input:
-
9V~36V
-
Operating System:
-
Win10 / 11, Linux, Ubuntu, Debian
Embedded Fanless Industrial Computer Intel® Elkhart Lake Atom X6425E 2.0GHz Processor Ubuntu Win 10 11 Fanless Mini Industrial PC
2.1 x DDR4 3200MHz SODIMM, MAX 32GB，1 x M.2 2280 SATA SSD
3.1 x M2.0 (2230, Wifi+BT)，1 x M2.0 (2242/3052，4G/5G)
4.Supports dual independent display:1 x HDMI, 1 x DP
5.3 x Intel® 226-V 2.5GbE Ethernet, support WoL and PXE
6.2 x RS232/RS422/RS485，RS485 support automatic flow control
7.Support TPM2.0 hardware security
8. Wide Operating Temperature -30°C to 70°C
9. 9V to 36VDC Wide Range Power Input，Supporting OVP / OCP / RPP
|
EFIC-2000CD
|
|
|
||
|
System
|
CPU
|
Intel® Elkhart Lake Atom X6425E 2.0GHz
|
||
|
|
L2 Cache
|
1.5 MB
|
||
|
|
Chipsets
|
Integrated with Intel® SoC
|
||
|
|
Memory
|
DDR4L 3200MHz 4GB, MAX 32GB
|
||
|
|
Harddisk
|
1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA
|
||
|
|
Graphics
|
lIntel® UHD Graphics for 10th Gen Intel® Processors
|
||
|
|
Network
|
Intel® 226-V GbE LAN
|
||
|
|
Audio
|
Realtek ACL897 Audio controller
|
||
|
|
TPM
|
TPM 2.0
|
||
|
|
Watchdog Timer
|
Software Programmable Supports 1~255 sec. System Reset
|
||
|
|
Operation System
|
Windows10/11, Linux, Ubuntu, Debian
|
||
|
I / O
|
VIDEO
|
1 x DP / 1 x HD-MI
|
||
|
|
LAN
|
3 x LAN 10/100/1000/2500 Mbps
|
||
|
|
USB
|
4 x USB3.0 / 2 x USB2.0
|
||
|
|
COM
|
2 x RS-232 / 422 / 485 ( Adjustable through BIOS )
|
||
|
|
DIO
|
DIO 8 Bits ( 4 In / 4 Out ) Optional
|
||
|
|
Audio
|
1x Audio_out & Mic_in
|
||
|
|
Wireless Network
|
Optional （WiFi / Bluetooth / 4G / 5G )
|
||
|
Power
|
Power Adapter
|
1 x Optional AC/DC 12V/5A , 60W
|
||
|
|
Power Mode
|
Support AT, ATX Mode
|
||
|
|
Power Input
|
2-pin Terminal Block Connector with Power Input 9~36VDC
|
||
|
|
|
OVP (Over Voltage Protection) OCP (Over Current Protection) RPP（Reverse Polarity Protection）
|
||
|
|
Power Consumption
|
≦30W
|
||
|
Physical
|
Material
|
Aluminum Alloy Shell
|
||
|
|
Color
|
Grey / Silver / Black ( optional )
|
||
|
|
VESA Mounting
|

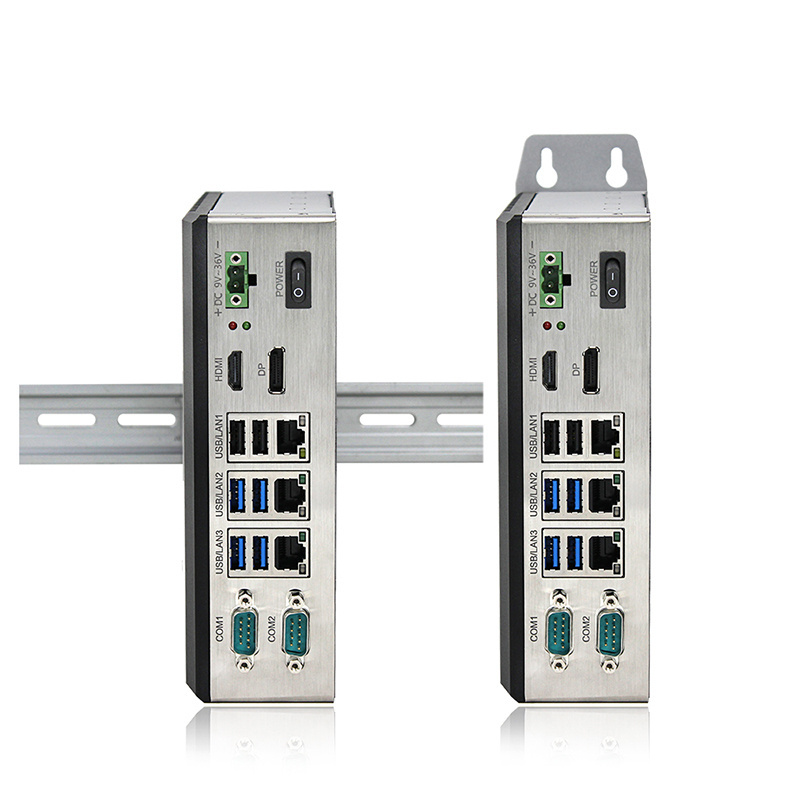

210 x 30 mm / DIN-Rail
|
||
|
|
Product Dimension
|
185 x 145 x 57 mm
|
||
|
|
Packing Size
|
360 x 180 x 320 mm
|
||
|
|
Weight (NET)
|
1.5 KG
|
||
|
Environment
|
Operating Temperature
|
-30~70°C ( -22~158°F )
|
||
|
|
Storage Temperature
|
-40~85°C (-40~185°F)
|
||
|
|
Relative Humidity
|
5%~95%@40°C, non-condensing
|
||
|
|
Vibration Range
|
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
|
||
|
|
EMC
|
CE, FCC，Class A，ROHS
|
||
FAQ.
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
