* Training how to install the machine, training how to use the machine.
* Engineers are available to serve machinery overseas. Only $200.00 service fee is charged per day.
* 24 hours hotline .Online installation and operation instruction.
* Life long machines Consultant
*More than 10 people of R&D team from optical,mechanical,electrical and software are in charged of designing, installation,
production, test and after-sale service.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
10 KG
-
Product name:
-
Max Laser Source
-
Application:
-
Laser Marking Machine Consumable
-
Keywords:
-
high accuracy
-
Power:
-
5W/10W/20W/30W/50W/70W/100W
-
Laser source:
-
MAX
-
Working method:
-
Pulse
-
MOQ:
-
1 Set
-
Center Wavelength:
-
1065nm+/-5nm
-
Beam Quality:
-
1.5M2
-
Marking materials:
-
metal as gold silver steel ect,plastic as pvc pe abs ppe
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Spare Parts Type:
-
laser source
-
Brand Name:
-
MAX
-
Weight (KG):
-
10 KG
-
Product name:
-
Max Laser Source
-
Application:
-
Laser Marking Machine Consumable
-
Keywords:
-
high accuracy
-
Power:
-
5W/10W/20W/30W/50W/70W/100W
-
Laser source:
-
MAX
-
Working method:
-
Pulse
-
MOQ:
-
1 Set
-
Center Wavelength:
-
1065nm+/-5nm
-
Beam Quality:
-
1.5M2
-
Marking materials:
-
metal as gold silver steel ect,plastic as pvc pe abs ppe

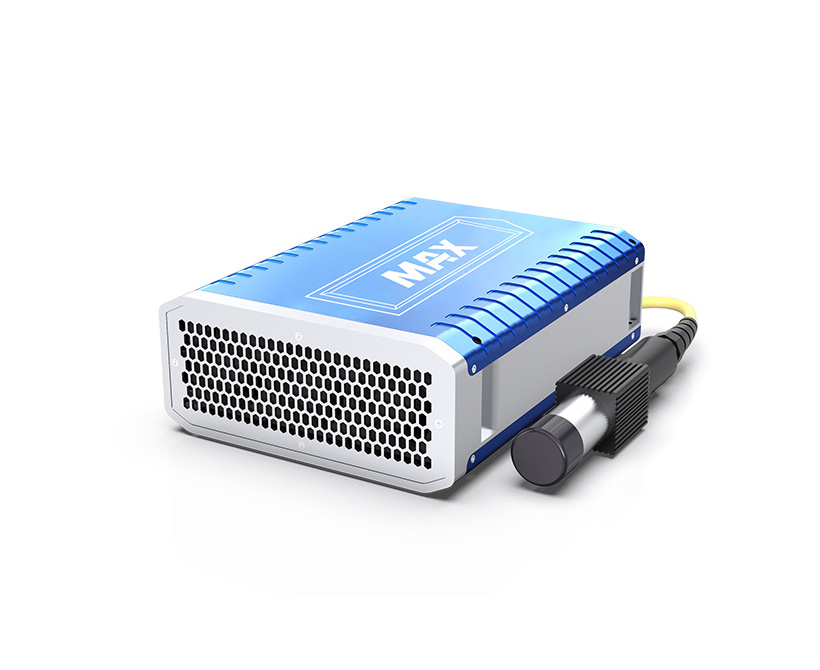

MAX 20W 30w 50w 100w High Accuracy Fiber Laser Source
Product Description
Main features
♦
High reliability
All fiber, no space optics, less failure；
♦ Fine marking
The beam quality is good, the pulse width is small, and the marking pattern is more delicate；
♦ Easy to integrate
♦ Fine marking
The beam quality is good, the pulse width is small, and the marking pattern is more delicate；
♦ Easy to integrate
67% smaller in volume and 50% lighter in weight for easier device integration；
♦ Intelligent control
The built-in cooling fan can intelligently adjust the wind speed, which is convenient for energy saving；
♦ Intelligent control
The built-in cooling fan can intelligently adjust the wind speed, which is convenient for energy saving；
♦
Sealing structure
Fully sealed structure, dustproof and moisture-proof, to ensure long-term operation of the machine
Fully sealed structure, dustproof and moisture-proof, to ensure long-term operation of the machine
Product Paramenters
|
Model
|
20w
|
30w
|
50w
|
70w
|
|
Average ray power (W)
|
20
|
30
|
50
|
70
|
|
Working method
|
Pulse
|
Pulse
|
Pulse
|
Pulse
|
|
Beam Quality (M2)
|
1.5
|
1.5
|
1.5
|
1.8
|
|
Center Wavelength(nm)
|
1064
|
1064
|
1064
|
1064
|
|
Spectral broadband 3db (nm)
|
5~10
|
5~10
|
5~10
|
5~10
|
|
Single Pulse energy (mj)
|
1
|
1~1.2
|
1~1.5
|
1.4mj@50khz
|
|
Pulse Width FWHM (ns)
|
100(90~110)
|
100(90~110)
|
100(90~110)
|
100~140
|
|
Pulse repeat frequency(KHz)
|
20~80
|
30~60
|
33~80
|
50~170
|
|
Output power instability(%)
|
5
|
5
|
5
|
5
|
|
Output beam diameter(mm)
|
7.5(6~9)(1/e2)
|
7.5(6~9)(1/e2)
|
7.5(6~9)(1/e2)
|
7.5(6~9)(1/e2)
|
|
Output beam ellipticity(%)
|
90
|
90
|
90
|
90
|
|
Laser open time(us)
|
110~140
|
110~140
|
110~140
|
110~140
|
|
Laser close time(us)
|
110~150
|
110~150
|
110~150
|
110~150
|
|
Fiber optic cable length(m)
|
2.5(1.9~3)
|
2.5(1.9~3)
|
2.5(1.9~3)
|
2.5(1.9~3)
|
|
Working Voltage (VDC)
|
24(23~25)
|
24(23~25)
|
24(23~25)
|
24(23~25)
|
|
Reted Power consumption(W)
|
150
|
240
|
360
|
450
|
|
Working environment temperature(°C)
|
10~42
|
10~42
|
10~42
|
10~42
|
|
Relative humidity of working environment(%)
|
10~95
|
10~95
|
10~95
|
10~95
|
|
storage temperature(°C)
|
-10~60
|
-10~60
|
-10~60
|
-10~60
|
|
Cooling method
|
air cooling
|
air cooling
|
air cooling
|
air cooling
|
|
Whole machine dimension (mm)
|
355*266*120
|
355*266*120
|
355*266*120
|
355*266*120
|
|
Weight (kg)
|
10
|
10
|
10
|
10
|
Machine photo
Daily maintenance and precautions
(1) When the laser is working, do not touch or collide with the movable beam of the scanning workbench;
(2) The laser and optical lens are fragile, please handle with care and avoid vibration when handling;
(3) When there is a malfunction in the machine, stop working immediately and ask a professional to deal with it;
(4) Pay attention to the sequence of turning on and off the laser;
(5) Note that the format of the marking machine shall not exceed the working format;
(6)Please keep the room and the surface of the machine clean and tidy.
Attentions
(1) When the power is turned on, do not directly look at the laser light hole;
(2) Avoid placing the laser and related optical output devices on the same level as the eyes;
(3) Reasonably select safety protection equipment according to the laser output power and wavelength requirements to ensure operation Personnel safety ;
(5) Do not install a sight when the laser is working;
(6)Please make sure to use the sight when the laser is turned off (such as when installing the sight on the fixture or observing the end face with optical instruments);
(7) Please use the defocus method to mark on the high reflective material, otherwise the laser will be directly damaged;
(8) For collimated output, please do not touch the output lens or clean it with any solvent. You can use
lens tissue to clean the output lens. After use, please replace the protective cover of the sight.
lens tissue to clean the output lens. After use, please replace the protective cover of the sight.
Company Profie
Exhibition & Visiting
Packing & Shiping
After-sales Service
After-Sales Service
FAQ
Q
: How can i choose the most suitable machine?
A
:
In order to recommend you the most suitable machine model, just tell us below information
1.What is your material
2.The size of material
3.The thickness of material
2.The size of material
3.The thickness of material
Q
: How to operate the machine? is training necessary?
A
: The machine is mainly controlled by software. It’s very easy, not complicated. Before shipment, we will make a simple operation manual with pictures and provide user manual of software. Generally speaking, an operator, who is not familiar with fiber laser marking machine before can still operate it very well. According to customers’ requests, we can send our technician to customer’ plant for machine training or customers can come to our plant for machine training if needed.
Q
: In case machine exists problem, how to do after sales service?
A
: We provide two years machine warranty. During the 1 year warranty, in case machine exists problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall within our warranty list. After the warranty, we still provide lifetime service.
Q : What’s delivery time?
Q : What’s delivery time?
A
: Generally speaking, lead time is 5-7 working days after receive the payment.
Q
:What's the guarantee, in case the machine breaks down?
A: The whole machine warranty is 2 years, and the Raycus laser source warranty is 3 years, If any issue, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
A: The whole machine warranty is 2 years, and the Raycus laser source warranty is 3 years, If any issue, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
