Quick Details
-
Mounting Type:
-
Mounting
-
Description:
-
300mm range,current 4-20mA + NPN switch output,, Ultrasonic Sensor
-
Model Number:
-
FHYCU18E-30IN/D G02M
-
Place of Origin:
-
China hunan
-
Brand Name:
-
F&C
-
Theory:
-
High frequency sound wave pulse
-
Output:
-
current 4-20mA + NPN switch output, current 4-20mA + NPN switch output
-
Warranty:
-
3Years
-
Operating Temperature::
-
-25~70℃
-
Detecting distance::
-
30-300MM
-
Usage::
-
Position detection,height control,human detection
-
Theory::
-
High frequency sound wave pulse
-
Operating Voltage:
-
12~24VDC 10%
-
Reaction time:
-
20ms
-
Frequency:
-
50HZ
Quick Details
-
Usage:
-
Position detection,height control, Position Sensor
-
Series:
-
M18 series
-
Features:
-
current 4-20mA + NPN switch output,
-
Mounting Type:
-
Mounting
-
Description:
-
300mm range,current 4-20mA + NPN switch output,, Ultrasonic Sensor
-
Model Number:
-
FHYCU18E-30IN/D G02M
-
Place of Origin:
-
China hunan
-
Brand Name:
-
F&C
-
Theory:
-
High frequency sound wave pulse
-
Output:
-
current 4-20mA + NPN switch output, current 4-20mA + NPN switch output
-
Warranty:
-
3Years
-
Operating Temperature::
-
-25~70℃
-
Detecting distance::
-
30-300MM
-
Usage::
-
Position detection,height control,human detection
-
Theory::
-
High frequency sound wave pulse
-
Operating Voltage:
-
12~24VDC 10%
-
Reaction time:
-
20ms
-
Frequency:
-
50HZ
Product Description

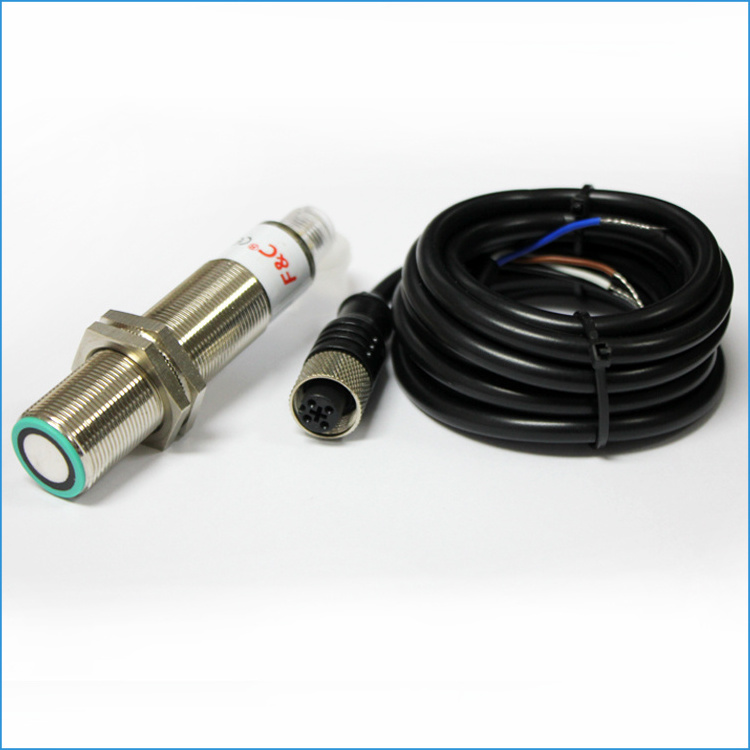

OEM M18 front sensing Ultrasonic sensor range 300 MM current 4-20mA + NPN switch output
F&C Sensor products range:
(1)proximity sensor 1000+ models,
(2)Fiber amplifier and Optic Sensor 3000+ models,
(3)Photoelectric Sensor 500+ models
(4)Magnetic Switch 100+ models,
(5)Lable sensors 40+ models
| FHYCU18ED-50VN/D G02M | Basic reflection series, copper tube,M18, short tube,top sensing,sensing range:500MM,voltage 0~10V one way output+NPN switch output,with M12 connector & 2m cable |
| FHYCU18E-50VI/D | Basic reflection series, copper tube,M18, short tube,front sensing,sensing range:500MM,voltage 0~10V +current 4-20mA two way output ,with M12 connector |
| FHYCU18E-30VI/D G02M | Basic reflection series, copper tube,M18, short tube,front sensing,sensing range:300MM,voltage 0~10V +current 4-20mA two way output ,with M12 connector & 2m optic fiber |
| FHYCU18E-100VI/D G05M | Basic reflection series, copper tube,M18, short tube,front sensing,sensing range:1000MM,voltage 0~10V +current 4-20mA two way output ,with M12 connector & 5m cable |
| FHYCU18E-50VN/D G02M | Basic reflection series, copper tube,M18, short tube,front sensing,sensing range:500MM,voltage 0~10V one way output+NPN switch output,with M12 connector & 2m optic fiber |
| FHYCU18-100 2P/D G02M | Basic reflection series, copper tube,M18, front sensing,sensing range:1000MM,PNP TWO WAY switch value output,with M12 connector & 2m optic fiber |
| FHYCU18ED-502N/D | Basic reflection series, copper tube,M18, short tube,top sensing,sensing range:500MM,NPN TWO WAY switch value output,with M12 connector |
| FHYCU18E-502N/D | Basic reflection series, copper tube,M18, short tube,front sensing,sensing range:500MM,NPN TWO WAY switch value output,with M12 connector |
| FHYCU18E-052N/D G02M | Basic reflection series, copper tube,M18, short tube,front sensing,sensing range:50MM,NPN TWO WAY switch value output,with M12 connector & 2m optic fiber |
| FHYCU18-100RS4/D | Basic reflection series, copper tube,M18, front sensing,sensing range:1000MM, RS485 digital value output, directly with M12 connector |
| FHYCU18E-50IN/D G02M | Basic reflection series, copper tube,M18, short tube,front sensing,sensing range:500MM,current 4-20mA + NPN switch output,with M12 connector & 2m optic fiber |
| FHYCU18-100VI/D W02M | Basic reflection series, copper tube,M18, front sensing,sensing range:1000MM, voltage 0~10V +current 4-20mA two way output ,with M12 right-angle connector & 2m optic fiber |
| FHYCU18-100IN/D G02M | Basic reflection series, copper tube,M18, front sensing,sensing range:1000MM,current 4-20mA + NPN switch output,with M12 connector & 2m optic fiber |
| FHYCU18E-30NP/D G02M | Basic reflection series, copper tube,M18, short tube,front sensing,sensing range:300MM,NPN+PNP two way switch output,with M12 connector & 2m optic fiber |
| FHYCU18E-50VI/D GS02M | Basic reflection series, copper tube,M18, short tube,front sensing,sensing range:500MM,voltage 0~10V +current 4-20mA two way output,with M12 connector & 2m shield cable |
| FHYCU18-100VN/D | Basic reflection series, copper tube,M18, front sensing,sensing range:1000MM,voltage 0~10V one way output+NPN switch output,directly with M12 connector |
| FHYCU18-100V/D | Basic reflection series, copper tube,M18, front sensing,sensing range:1000MM,analog voltage outputs,directly with M12 connector |
| FHYCU18-100I/D G02M | Basic reflection series, copper tube,M18, front sensing,sensing range:1000MM,Analog current output, with M12 connector & 2m optic fiber |
| FHYCU30-200VN/D | Basic reflection series, copper tube,M30, front sensing,sensing range:2000MM,voltage 0~10V one way output+NPN switch output,directly with M12 connector |
| FHYCU30-200V/D | Basic reflection series, copper tube,M30, front sensing,sensing range:2000MM,analog voltage outputs,directly with M12 connector |
| FHYCU30-200P/D G02M | Basic reflection series, copper tube,M30, front sensing,sensing range:2000MM,PNP outputs,with M12 connector & 2m optic fiber |
| FHYCU30-400P/D G02M | Basic reflection series, copper tube,M30, front sensing,sensing range:4000MM,PNP outputs,with M12 connector & 2m optic fiber |
| FHYCU30-200NP/D G02M | Basic reflection series, copper tube,M30, front sensing,sensing range:2000MM,,NPN+PNP two way switch output,with M12 connector & 2m optic fiber |
| FHYCU30-200VI/D G02M | Basic reflection series, copper tube,M30, front sensing,sensing range:2000MM,voltage 0~10V +current 4-20mA two way output ,with M12 connector & 2m optic fiber |
| FHYCU30-200I/D G02M | Basic reflection series, copper tube,M30, front sensing,sensing range:2000MM,Analog current output, with M12 connector & 2m optic fiber |
| FHYCU30-400I/D | Basic reflection series, copper tube,M30, front sensing,sensing range:4000MM,Analog current output, with M12 connector |
| FHYCU30-600I/D | Basic reflection series, copper tube,M30, front sensing,sensing range:6000MM,Analog current output, with M12 connector |
| FHYCU30-200 2N/D G02M | Basic reflection series, copper tube,M30, front sensing,sensing range:2000MM,NPN TWO WAY switch value output,with M12 connector & 2m optic fiber |
| FHYCU30-200VN/D G02M | Basic reflection series, copper tube,M30, front sensing,sensing range:2000MM,voltage 0~10V one way output+NPN switch output,directly with M12 connector |
| FHYCU30-200RS4/D G02M | Basic reflection series, copper tube,M30, front sensing,sensing range:2000MM,RS485 digital value output, directly with M12 connector |
| FHYCU30-200IN/D G02M | Basic reflection series, copper tube,M30, front sensing,sensing range:2000MM,current 4-20mA + NPN switch output,with M12 connector & 2m optic fiber |
| FHYCU30-200VI/D G03M | Basic reflection series, copper tube,M30, front sensing,sensing range:2000MM,voltage 0~10V +current 4-20mA two way output ,with M12 connector & 3m cable |
| FHYCU40-400NP/D G02M | Basic reflection series, copper tube,M40, front sensing,sensing range:4000MM,NPN+PNP two way switch output,with M12 connector & 2m optic fiber |
| FHYCU40-400IN/D G02M | Basic reflection series, copper tube,M40, front sensing,sensing range:4000MM,current 4-20mA + NPN switch output,with M12 connector & 2m optic fiber |
| FHYCU40-400VI/D G02M | Basic reflection series, copper tube,M40, front sensing,sensing range:4000MM,voltage 0~10V +current 4-20mA two way output ,with M12 connector & 2m optic fiber |
| FHYCU74-600IN/D | Basic reflection series, copper tube,M74, front sensing,sensing range:6000MM,current 4-20mA + NPN switch output,with M12 connector |
