Quick Details
-
Voltage:
-
380V or as request, Customized
-
Dimension(L*W*H):
-
6450*6800*1900mm
-
Application:
-
Wood board cutting, wood board cutting
-
Weight (KG):
-
5300 KG
-
Max.Cutting Height at 90°(mm):
-
120mm
-
Max.Cutting Height at 45°(mm):
-
60mm
-
Max. Length of Workpiece (mm):
-
3800mm
-
Applicable Industries:
-
woodworking
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-

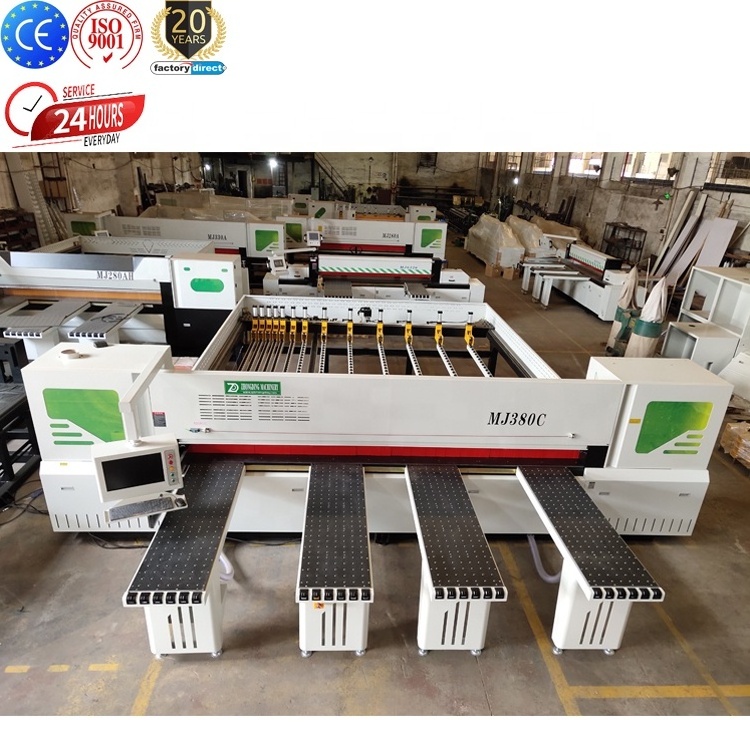

Woodworking CNC beam saw
-
Model:
-
ZD2626/3232/3838
-
Service:
-
24/7
-
Structure:
-
Heavy Duty Steel Structure
-
After Warranty Service:
-
Support Online Support
-
Working methods:
-
CNC
-
Workbench height:
-
950mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZHONGDING
-
Usage:
-
wood cutting
-
Voltage:
-
380V or as request, Customized
-
Dimension(L*W*H):
-
6450*6800*1900mm
-
Application:
-
Wood board cutting, wood board cutting
-
Weight (KG):
-
5300 KG
-
Max.Cutting Height at 90°(mm):
-
120mm
-
Max.Cutting Height at 45°(mm):
-
60mm
-
Max. Length of Workpiece (mm):
-
3800mm
-
Applicable Industries:
-
woodworking
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Woodworking CNC beam saw
-
Model:
-
ZD2626/3232/3838
-
Service:
-
24/7
-
Structure:
-
Heavy Duty Steel Structure
-
After Warranty Service:
-
Support Online Support
-
Working methods:
-
CNC
-
Workbench height:
-
950mm
WHY CHOOSE US?
CUSTOMER REVIEWS
PRODUCT CONFIGURATION
Air floating platform under pressure beam, avoiding board scratching and assuring smoother board movement.
With latest design mechanical clip.
Saw height independent lifting system.
MITSUBISHI servo motor Taiwan LIMING reducer.
Taiwan rack and pinion
Imported electrical parts
|
Item
|
ZD2626
|
ZD3232
|
ZD3838
|
|
Sawing length
|
2600mm
|
3250mm
|
3850mm
|
|
Sawing thickness
|
85/100/120mm
|
85/100/120mm
|
85/100/120mm
|
|
Dia. Of main saw blade
|
355/400/460mm
|
355/400/460mm
|
355/400/460mm
|
|
Axis dia. of main saw blade
|
30/60mm
|
30/60mm
|
30/60mm
|
|
Rotate speed of main saw blade
|
3950/4500 rpm
|
3950/4500 rpm
|
3950/4500 rpm
|
|
Dia. of grooving saw blade
|
180mm
|
180mm
|
180mm
|
|
Axis Dia. of grooving saw blade
|
25.4/30mm
|
25.4/30mm
|
25.4/30mm
|
|
Rotate speed of grooving saw blade
|
6300 rpm
|
6300 rpm
|
6300 rpm
|
|
Saw carriage forward speed
|
0-120 m/min
|
0-120 m/min
|
0-120 m/min
|
|
Saw carriage back speed
|
60-120 m/min
|
60-120 m/min
|
60-120 m/min
|
|
Head saw motor
|
7.5/11 kw
|
7.5/11 kw
|
7.5/11 kw
|
|
Grooving saw motor
|
1.5kw
|
1.5kw
|
1.5kw
|
|
Saw carriage drive motor
|
2.2kw
|
2.2kw
|
2.2kw
|
|
Automatic feeding motor
|
1.2kw
|
2kw
|
2kw
|
|
Pusher motor
|
2kw
|
2kw
|
2kw
|
|
High pressure blower motor
|
2.2kw
|
2.2kw
|
2.2kw
|
|
Total power
|
17/21kw
|
21/27kw
|
21/27kw
|
|
Automatic feeding speed
|
0-120 m/min
|
0-120 m/min
|
0-120 m/min
|
|
Operation pressure
|
5-7kg/cm
|
5-7kg/cm
|
5-7kg/cm
|
|
Workbench height
|
950mm
|
950mm
|
950mm
|
|
Net weight
|
5000kg
|
6000kg
|
7000kg
|
|
Dimensions (L*W*H)
|
5500*5600*1700mm
|
6100*6200*1700mm
|
6700*6800*1700mm
|
