Quick Details
-
Flow Rate:
-
50L/min
-
Size Channel:
-
0.5, 1, 3, 5, 10, 25 μm
Quick Details
-
Brand Name:
-
Sujing
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
Y09-550
-
Flow Rate:
-
50L/min
-
Size Channel:
-
0.5, 1, 3, 5, 10, 25 μm

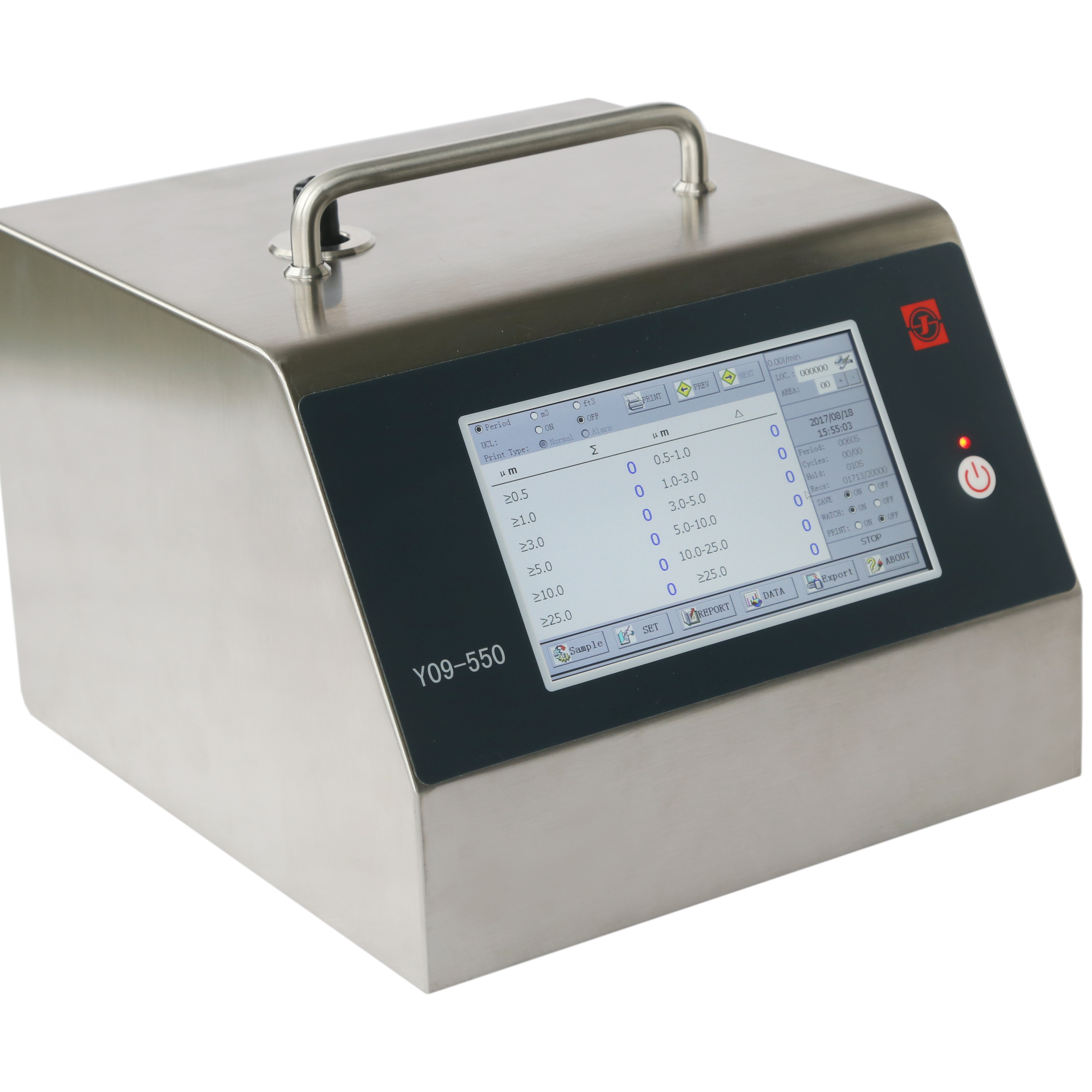

Y09-550 Particle Counter
Y09-550 Particle Counter is used to measure the volume of air inside the clean environment of dust particles in size and number, can be directly detected cleanliness class A area, B-class area clean environment. Y09-550 laser particle counter use a semiconductor laser light source, a large touch-screen display, small size, light weight, high precision, features simple operation, microprocessor control, storage, printing the measurement results, the test environment is very clean convenient. In addition, special software can be downloaded via computer to store data. Our products are widely used in medicine, optical, chemical, food, cosmetics, e-health, biological products, aerospace and other sectors.
Detailed parameters:
| Outside Dim | 320 * 272 * 240 m m 3 ( Wide * High * Deep) |
| Display | Touch screen (LCD) |
| Weight | 7.5Kg |
| Max. Consumption | 80W |
| Power Source | DC16.8V built-in lithium-ion battery (Built-in Lithium Battery) |
| Size Channels | 0.5, 1, 3, 5, 10, 25 μm |
| Calculation | 95% UCL calculation of particle concentration can be displayed directly |
| Flow Rate | 50L/min import sampling pump |
| Sample Time | Between 6 ~ 999999s optional (Selectable) |
| Zero Count | <=10min |
| Location Labels | 0 -9999 |
| Printer | Built-in thermal printer |
| Alarm | Class |
| Date Storage | 20000 Group / Section 300 UCL (with a PC dedicated communication software) |
| Output | USB |
| Light Source | Laser Diode (30000 hours mean time between failures) |
| Maximum Rated Particle Concentration | 35000 particles / L |
| Operating Time | 5 hours |
| Environmental |
Temperature (Temperature): 10 ~ 35 degree celsius Humidity (Humidity): 20% ~ 75% RH Atmospheric pressure (Atmosphere Pressure): 86 ~ 106Kpa |
