Small Business 1212 1224 1325 Wood Router Engraving Machine Cnc Router 1212 China with MACH3 DSP A11
Small Business 1212 1224 1325 Wood Router Engraving Machine Cnc Router 1212 China with MACH3 DSP A11
Small Business 1212 1224 1325 Wood Router Engraving Machine Cnc Router 1212 China with MACH3 DSP A11
Small Business 1212 1224 1325 Wood Router Engraving Machine Cnc Router 1212 China with MACH3 DSP A11
Small Business 1212 1224 1325 Wood Router Engraving Machine Cnc Router 1212 China with MACH3 DSP A11
Small Business 1212 1224 1325 Wood Router Engraving Machine Cnc Router 1212 China with MACH3 DSP A11
Small Business 1212 1224 1325 Wood Router Engraving Machine Cnc Router 1212 China with MACH3 DSP A11
Small Business 1212 1224 1325 Wood Router Engraving Machine Cnc Router 1212 China with MACH3 DSP A11

Small Business 1212 1224 1325 Wood Router Engraving Machine Cnc Router 1212 China with MACH3 DSP A11

FOB Reference Price: Get Latest Price
≥1 Sets
US $1280
≥5 Sets
US $1180
≥10 Sets
US $1080
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Positioning Accuracy (mm):
0.01 mm
Number of Axes:
1
Travel (X Axis)(mm):
1300 mm
Travel (Y Axis)(mm):
2500 mm
Repeatability (X/Y/Z) (mm):
0.01 mm
Spindle Motor Power(kW):
4
Place of Origin:
Shandong, China
Brand Name:
LINTCNC
Voltage:
AC220/380V
Dimension(L*W*H):
3.3*2.1*2.1m
Power (kW):
4
Weight (KG):
1300
MODEL:
LT-1325
Working Area:
1300mm*2500mm*200mm
Spindle:
3.0kw
Table style:
T-slot table
Motors and drivers:
450B stepper motors and MA860 Leadshine drivers
Control system:
NCstudio
Transmission:
x y axis by helical gear rack ,z axis by ball screw
Working speed:
12000mm/min
Weight:
1400kg
Power:
3.0kw etc.

Quick Details

Working Table Size(mm):
1300×2500
Machine Type:
CNC Router
Range of Spindle Speed(r.p.m):
1 - 24000 rpm
Positioning Accuracy (mm):
0.01 mm
Number of Axes:
1
Travel (X Axis)(mm):
1300 mm
Travel (Y Axis)(mm):
2500 mm
Repeatability (X/Y/Z) (mm):
0.01 mm
Spindle Motor Power(kW):
4
Place of Origin:
Shandong, China
Brand Name:
LINTCNC
Voltage:
AC220/380V
Dimension(L*W*H):
3.3*2.1*2.1m
Power (kW):
4
Weight (KG):
1300
MODEL:
LT-1325
Working Area:
1300mm*2500mm*200mm
Spindle:
3.0kw
Table style:
T-slot table
Motors and drivers:
450B stepper motors and MA860 Leadshine drivers
Control system:
NCstudio
Transmission:
x y axis by helical gear rack ,z axis by ball screw
Working speed:
12000mm/min
Weight:
1400kg
Power:
3.0kw etc.

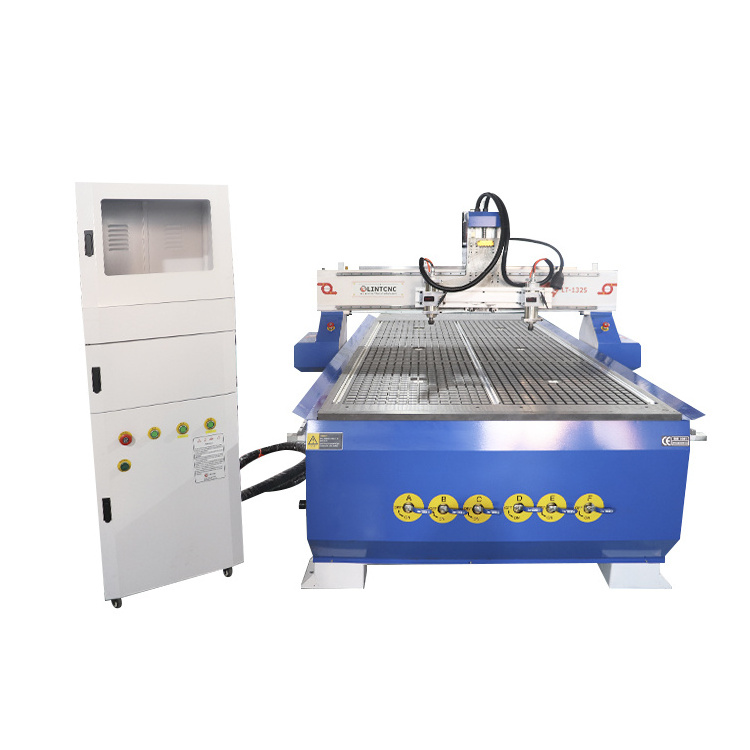

LT-1325 Wood cnc router
Main Features
1. Z axis feeding height 200mm
2. Square tube welded steel frame structure-8mm thickness
3. Aluminum T-slot table
4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis Ball screw
5. X, Y, Z axis Taiwan square rails PMI
6. 450B stepper motor and MA860H Leadshine driver or servo motor and driver
7. 3.0KW water cooling spindle and 3.7kw Fuling inverter, other spindles are optional
8. Nc-Studio-5.4.49 control system, DSP or Mach 3 is optional

Options:
1,Rotary axis for engraving round wood: diameter 80mm/100mm/150mm
2,Dust collector
3,MACH3 USB control system
4,Vacuum table with 5.5kw vacuum pump
5,4.5kw/5.5KW water cooling spindle,
skills requirement
1. This picture is a wire frame drawing of the outline dimension of the side rotating shaft of the LINTCNC-1325 rack machine by Lintian Zhiyuan CNC (LNT CNC).

2. This picture is only used by the customer to plan the site and place the equipment.

3.The external dimensions of the device are subject to change without notice.

4.LINT CNC Lintian Zhiyuan Numerical Control Equipment Co., Ltd. (special mechanical drawing produced in May 2020).
Technical Parameters
Model
LT-1325 wood CNC Router
Effective working area
1300*2500*200mm
Table style
Aluminum T-slot table with PVC
Guide rail
Taiwan Hiwin linear square guide rail
Driving method
X,Y axis by helical gear rack, Z axis by TBI ball screw
Spindle
3.0KW water cooling spindle
Invert
Fuling invert
Collet size
ER20
Spindle speed
0-24000rpm
Motors and drivers
86BYG-450B stepper motors and MA860 Leadshine drivers
Control system
NCStuido control system
Working Accuracy
<0.05/300mm
Instruction format
G code *.u00 *.mmg *.plt
Working voltage
AC220V/AC380V,single phase/3 phase,50-60Hz
Standard Software
Artcam 2010
Compatible software
Type3/Castmate/Coreldraw/AutoCAD or other CAM/CAD software
Control Cabinet
Independent
Other
Tool Sensor; Oiling system; Water pump; Tool Box,English manuals etc.
Optional parts
1,Rotary axis for engraving round wood:price depends on its diameter 80mm(US$300)/100mm(US$400)/150mm(US$450)
2,Dust collector:+USD 150
3,MACH3 USB control system:+US$150
4,Vacuum table with 5.5kw vacuum pump: +USD400
5,4.5kw water cooling spindle: +USD$350, 5.5KW/6.0KW spindle:+US$450




03 WATER COOLING SPINDLE
3.0kw water cooling spindle are available, low noise, high efficiency, long life and good cooling effect;



04 T-SLOT TABLE
Aluminum T-slot table with PVC. 9mm yellow hard PVC board; Which can fix the material by clamps by the T-slot table;




05 HIWIN SQUARE LINEAR GUIDE  RAIL
Imported high precision Hiwin square linear guide rail bearings, soomth movement to ensure the machine tools higher accurancy, higher stability, more stable;



07 FULING INVETER
Fuling inverter, famous brand in Chinese market, which is specialized for cnc router machine processing industry, and has special Marco code function for cnc router, adopt reasonable wiring technolog, more stable and reliable.





08 STEPPER MOTOR
86BYG-450B stepper motors: open loop; nema 34, , 6nM size; power about 480w/each set



09 LEADSHINE EADSHINE DRIVER
MA860 Leadshine drivers: Built-in micro-subdivision technology and automatic tuning of power-on parameters function; low noise, low vibration, low heat, high torque output features;
1.Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Sample exhibition
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Shandong Lintianzhiyuan CNC Equipment Co., Ltd. is famous in CNC and laser equipment, located in Jinan, Shandong. Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech and high-quality products to build the world brand.Our main products: large-scale (automatic tool change) CNC woodworking engraving machine, CNC advertising engraving machine, CNC marble engraving machine, CNC plasma cutting machine, CNC glass engraving machine, CNC jade engraving machine, CNC metal mold machine, laser cutting machine, laser cutting bed, laser seal engraving machine and computer cutting plotter product. All our stone CNC router, wood CNC router, laser engraver, plasma cutting machine, cutting plotter, advertising CNC router has received certification by CE and ISO9001. On top of 10,000-square-meter land consisting of modern plant, garden-style factory, the company owns more than 100 manufacturing workers and technicians, sales outlets cross-20 provinces and municipalities, and a host of existing agencies over16 countries and regions, with the products exported to 70 countries and regions like the United States, Germany, Britain, Canada, Australia, Russia, Southeast Asia, and etc.
Feedback
Please click and view the feedback video from our customers.
Q: When I got this machine, but I don’t know how to use it. What should I do?
A:We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q: After an order is placed,when to deliver?
A:Generally about 10-25 days,lf we have inventory,we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q: What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST.we can help you to repair your problem controller freely.even it's not from our factory.After the warranty,the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product handles guest problems and complaints in a professional and timely.

Q: What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need.

Very sincerely look forward to your inquiry! Any questions about our products, welcome to contact me!
