Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Saining
-
Model Number:
-
Multiwall-Four
-
Certificate:
-
ISO 9001
-
Technology:
-
UV Co-exstrusion
-
Material:
-
Polycarbonate resin
-
Thickness:
-
8mm-20mm
-
OEM:
-
Available
-
Width:
-
2100mm(max.)
-
Length:
-
No limited
-
Color:
-
Transparent, blue, green, blue, light-opal, bronze etc.
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Saining
-
Model Number:
-
Multiwall-Four
-
Certificate:
-
ISO 9001
-
Technology:
-
UV Co-exstrusion
-
Material:
-
Polycarbonate resin
-
Thickness:
-
8mm-20mm
-
OEM:
-
Available
-
Width:
-
2100mm(max.)
-
Length:
-
No limited
-
Color:
-
Transparent, blue, green, blue, light-opal, bronze etc.
Product Description
|
item
|
value
|
|
Warranty
|
More than 5 years
|
|
After-sale Service
|
Online technical support
|
|
Project Solution Capability
|
Graphic design
|
|
Application
|
Building
|
|
Design Style
|
Modern
|
|
Brand Name
|
Saining
|
|
Model Number
|

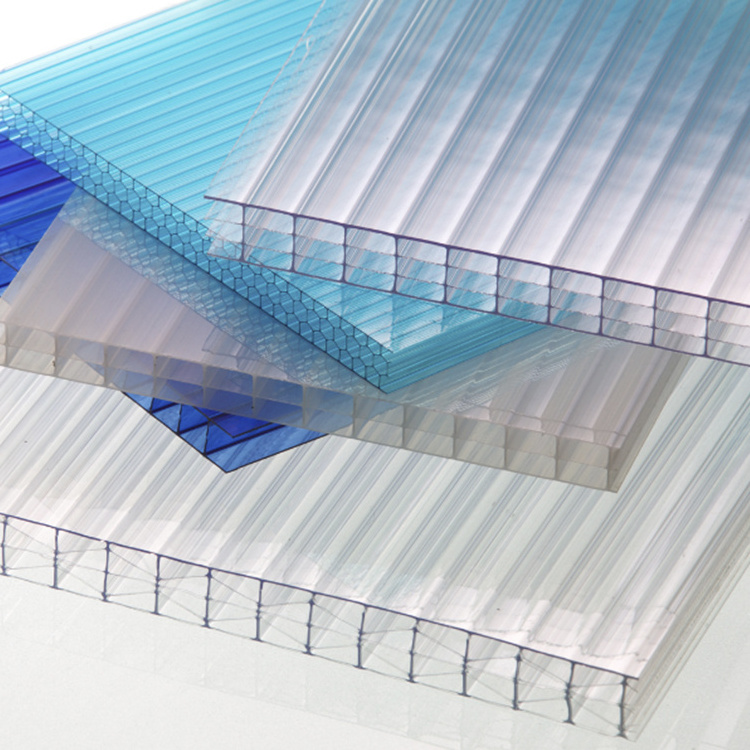

4-wall Rectangle structure Sheet
|
|
Type
|
Hollow sheet
|
|
Color
|
Transparent/Red/White/Grey
|
|
Application
|
Agricultural greenhouses, ecological restaurant, large-scale daylighting ceiling, light partition, carport
|
|
Feature
|
The multiwall cavity structure of the four-wall rectangular sheet provides it with excellent bearing capacity. The excellent thermal insulation property is more important. It gains a decrease of the heat conductivity (k value) by 20% compared to the triple-wall sheet with the same thickness. In addition to a light and compact structure, the sheet is more energy efficient and environmentally friendly and has enhanced bearing capacity. Addition of the coating whose external surface is easy to clean and has anti-dropping function at the lower layer is allowed so that its transparency can be maintained. It ensures the transmittance of visible light and infrared light while blocking UV rays so as to protect plant growth. The sheet comes in various color and thickness options.
|
|
Model
|
Thickness (mm)
|
Weight (kg/m2 )
|
Rib distance (mm)
|
Heat transfer coefficient K value（W/m2 K）
|
UV layer thickness
|
LT Ultraviolet (%)
|
LT clear (%)
|
LT opal white (%)
|
|
SNM4RS8-17
|
8
|
1.7
|
5
|
2.56
|
≧50
|
0
|
71
|
25-45% Can adjust
|
|
SNM4RS10-20
|
10
|
2.0
|
|
2.39
|
|
|
70
|
|
|
SNM4RS12-22
|
12
|
2.2
|
|
2.32
|
|
|
70
|
|
|
SNM4RS14-24
|
14
|
2.4
|
|
2.11
|
|
|
69
|
20-45%
Can adjust
|
|
SNM4RS16-27
|
16
|
2.7
|
|
2.03
|
|
|
68
|
|
|
SNM4RS18-30
|
18
|
3.0
|
|
1.88
|
|
|
66
|
20-40%
Can adjust |
|
SNM4RS20-33
|
20
|
3.3
|
|
1.69
|
|
|
63
|
|
