Quick Details
-
Graphic Format Supported:
-
BMP, Dst, DXF, DXP, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RC
-
Dimension(L*W*H):
-
770*800*830mm
-
Weight (KG):
-
500 KG
-
Core Components:
-
control system
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Laser power:
-
80W/90w/100w
-
Laser type:
-
CO2 laser tube
-
Engraving speed:
-
0-5000cm/min
-
motor:
-
stepper motor and driver
-
cooling:
-
water chiller
-
table:
-
honeycomb /blade table
-
computer interface:
-
USB
-
color:
-
optional
-
Product name:
-
mini laser cutting machine
Quick Details
-
Engraving Area:
-
600*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-4000mm/min
-
Graphic Format Supported:
-
BMP, Dst, DXF, DXP, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RC
-
Dimension(L*W*H):
-
770*800*830mm
-
Weight (KG):
-
500 KG
-
Core Components:
-
control system
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Laser power:
-
80W/90w/100w
-
Laser type:
-
CO2 laser tube
-
Engraving speed:
-
0-5000cm/min
-
motor:
-
stepper motor and driver
-
cooling:
-
water chiller
-
table:
-
honeycomb /blade table
-
computer interface:
-
USB
-
color:
-
optional
-
Product name:
-
mini laser cutting machine

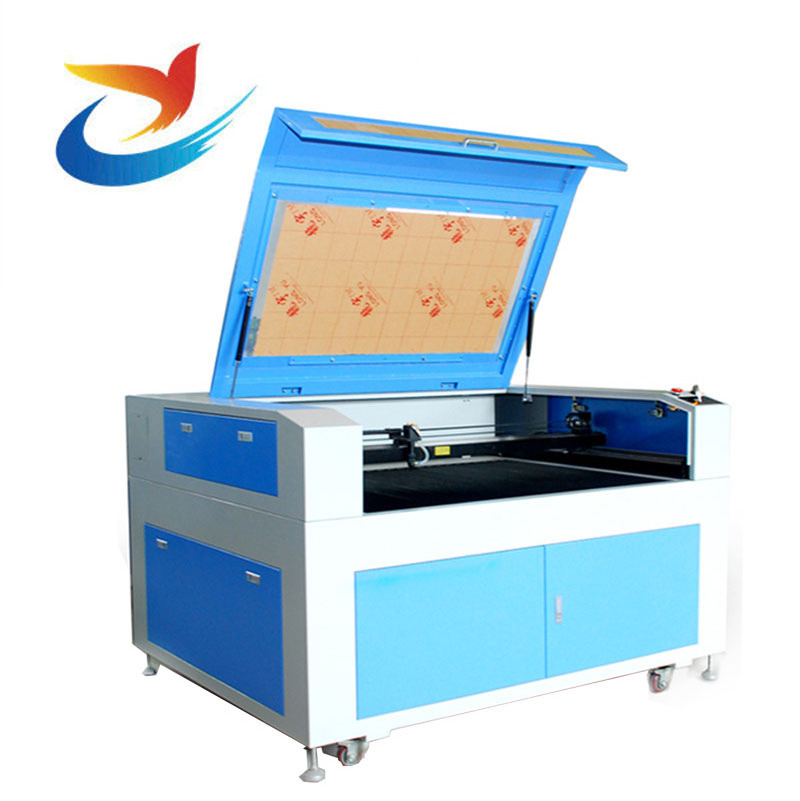

Good quality with competitive price wood MDF acrylic 6090 CNC Mini laser cutting machine
1.Use strong and steady flat bed, to ensure rapid movement of the stability and accuracy.
2.Motion system using linear guide rails and precision gears, ball screws, to ensure precision.
3.Use specially treated stainless steel mesh work full-open platform, easy to operate and never worn.
Technical parameter of Good quality with competitive price wood MDF acrylic 6090 CNC Mini laser cutting machine
|
Laser type |
sealed CO 2 laser tube |
|
Laser power |
60W/80W/100w |
|
Cooling mode |
Water-cooling and protection system |
|
Engraving speed |
0-60,000mm/min |
|
Cutting speed |
0-20,000mm/min |
|
Resetting position accuracy |
±0.05 |
|
Minimum shaping character |
Chinese :0.5*0.5mm; letter: 0.5*0.5mm |
|
Graphic format supported |
BMP,HPGL,PLT,DST,AI |
|
Controlling software |
RD |
|
Compatible software |
CorelDraw,AutoCAD,Photoshop |
|
Driving system |
Stepper |
|
Working voltage |
AC 110-220V±10%,50-60Hz |
|
Operating temperature |
0-45°C |
|
Operating humidity |
5-95% |
Application of Good quality with competitive price wood MDF acrylic 6090 CNC Mini laser cutting machine
Advertisemen t industry : organic glass cutting, sign sculpture, double color boards sculpture, Acrylic engraving.
Gift industry : in the wood, bamboo, marble, double color boards, density board, crystal, leather
and other materials beautifully carved on the words and patterns.
Cardboard printing : sculpture products, used for carving the rubb er board, double board, plastic
board sculpture and cutting.
Leather and clothing : in genuine leather, synthetic leather, artificial leather, cloth on the complex
characters and graphics of engraving and cutting, carve patterns or designs on woodwork, hollow
out, computer embroidery cutting processes.
Other industries : model making, decoration, the product packaging engraving
Process
|
After sales service |
1.24 hour technical support by email and calling.
|
|
|
2. English manual and CD vedio for machine using and maintaining. |
|
|
3.Whole machine Warranty 1 Year. Laser tube and lens for six months. |
In order to choose the most suitable machine for you,
We need to know this information as below:
1.what material you want to engraving or cutting?
2.The Max.size about your material.(width*length*thickness)
3.Your requirement about the machine.
4.We can design the machine as customer required.
Welcome to our factory
JiNan Huawei CNC machine Co.,Ltd specilized in raising the R&D capabilities of cnc & laser machine and engages to be the leading specialized company in the industry.
Established in 2002, we have a professional team of unity, skill and strong sense of responsibility, having over 10 years experience, we create a set of precise and elegant engraving skills with modern high-tech means and advanced digital technology.
