Quick Details
-
Brand Name:
-
Junfu
-
Place of Origin:
-
China
-
Pressure:
-
standard
-
Structure:
-
standard
-
Weight:
-
18.5
-
Power:
-
standard
-
Dimension(L*W*H):
-
36*17*17cm
-
Maximum Flow Rate:
-
standard
-
Product name:
-
Hydraulic Gear Pump
-
rated pressure:
-
22MPA
-
max pressure:
-
25MPA
-
Application:
-
dump truck
-
Material:
-
Steel
-
displacement:
-
100cc
-
Brand:
-
junfu
-
Rated Speed(r/min):
-
2000 R/min
-
max speed:
-
2500R/min
-
Color:
-
black or blue or customized
Quick Details
-
Warranty:
-
1 Year
-
Displacement:
-
Other
-
Pump Type:
-
Gear Pump
-
Brand Name:
-
Junfu
-
Place of Origin:
-
China
-
Pressure:
-
standard
-
Structure:
-
standard
-
Weight:
-
18.5
-
Power:
-
standard
-
Dimension(L*W*H):
-
36*17*17cm
-
Maximum Flow Rate:
-
standard
-
Product name:
-
Hydraulic Gear Pump
-
rated pressure:
-
22MPA
-
max pressure:
-
25MPA
-
Application:
-
dump truck
-
Material:
-
Steel
-
displacement:
-
100cc
-
Brand:
-
junfu
-
Rated Speed(r/min):
-
2000 R/min
-
max speed:
-
2500R/min
-
Color:
-
black or blue or customized
Product Description

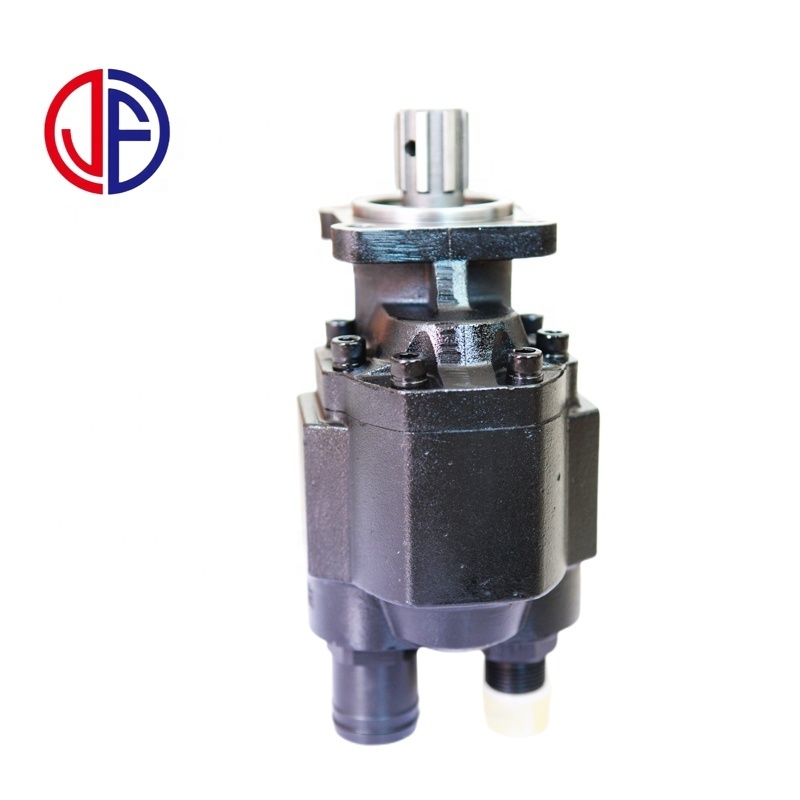

CBJF-P series gear oil pump, made of high-strength cast iron, has strong bearing capacity, high volumetric efficiency, high working pressure and long service life. It is an ideal power unit for the hydraulic system of main engines such as dump trucks
Port at the bottom .
Port at the bottom .
Port at the side
Specification
|
Type
|
CBJF-P100
|
CBJF-P80
|
|
Nominal displacement
|
100cc
|
80cc
|
|
rated pressure
|
20MPA
|
20MPA
|
|
max pressure
|
25MPA
|
25MPA
|
|
Dimension(L*W*H)
|
36*17*17cm
|
36*17*17 cm
|
|
Pump Type
|
Gear Pump
|
Gear pump
|
|
min rotating speed
|
800
|
800
|
|
rated rotating speed
|
2000
|
2000
|
|
max rotating speed
|
2500
|
2500
|
|
Application
|
dump truck
|
dump truck
|
|
Material
|
Steel
|
steel
|
|
Color
|
black or blue or customized
|
black or blue or customized
|
|
volumetic efficiency
|
more than 92%
|
more than 92%
|
|
oil temperature
|
-20 to 80 degree
|
-20-80 degree
|
|
weight
|
18.5kg
|
17kg
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
