It is designed to the sawyers who want the freedom of sawing their own lumber for projects or profits, widely used in woodworking hobbyists to full-time sawmill operators.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/50HZ/3PH Or Customized
-
Dimension(L*W*H):
-
2680*1780*1560mm
-
Application:
-
all workshop for sawing wood
-
Weight (KG):
-
400 KG
-
Max.Working Width(mm):
-
790mm
-
Marketing Type:
-
hot sale with competitive price
-
Core Components:
-
motor and bearings
-
Name:
-
portable horizontal band sawmill
-
Function:
-
Wood Cuting
-
Band Wheel Diameter::
-
480mm(18.9")
-
Max Sawing Wood Diameter::
-
790mm(31'')
-
Max cutting length::
-
3000mm or as customer needs
-
Rail length::
-
4000mm or as customer needs
-
Saw walk forward /back::
-
Manual
-
Weight::
-
400 kg
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Huike
-
Usage:
-
Sawing Plank/Square Log
-
Voltage:
-
380V/50HZ/3PH Or Customized
-
Dimension(L*W*H):
-
2680*1780*1560mm
-
Application:
-
all workshop for sawing wood
-
Weight (KG):
-
400 KG
-
Max.Working Width(mm):
-
790mm
-
Marketing Type:
-
hot sale with competitive price
-
Core Components:
-
motor and bearings
-
Name:
-
portable horizontal band sawmill
-
Function:
-
Wood Cuting
-
Band Wheel Diameter::
-
480mm(18.9")
-
Max Sawing Wood Diameter::
-
790mm(31'')
-
Max cutting length::
-
3000mm or as customer needs
-
Rail length::
-
4000mm or as customer needs
-
Saw walk forward /back::
-
Manual
-
Weight::
-
400 kg
Products Description

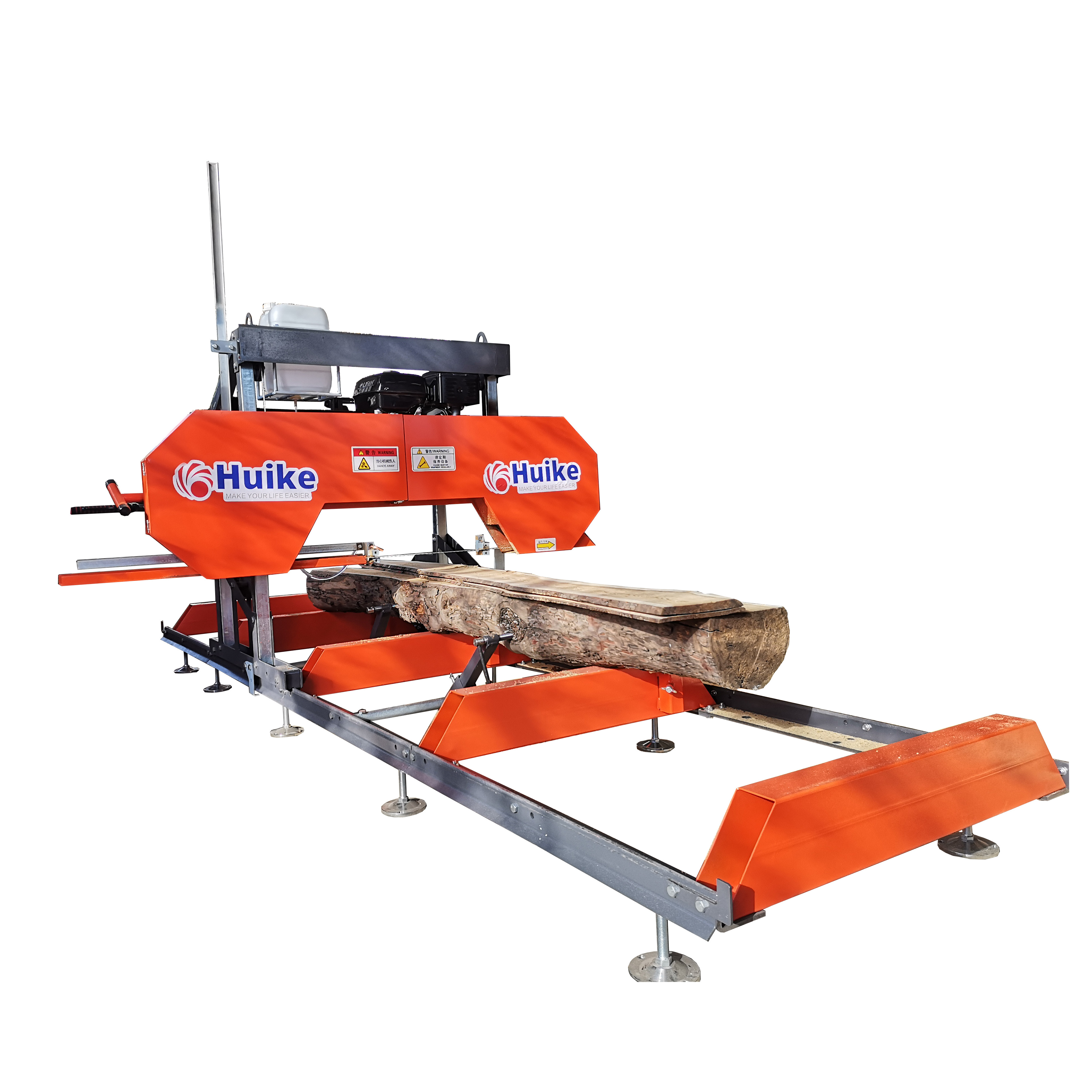

Huike Ultra Portable Sawmill
The body of HKS Series sawmill is all parts structures that easy to assemble, cost--effective, sturdy and durable, the saw wheel is high precision castings. The lightweight head and adjustable bed of Huike sawmill provide a variety of woodworking options in different environments, smooth finishing, easy to move around, suitable for the farm owners and DIY woodworking .
It can cut logs and square wood into wood planks, it's easy to operate and low maintenance cost, also can be equipped with a trailer to make it more flexible when moving.
It can cut logs and square wood into wood planks, it's easy to operate and low maintenance cost, also can be equipped with a trailer to make it more flexible when moving.
HKS Series Sawmill
|
Huike HKS Series Portable Band Sawmill
|
|
|
|
|
||||
|
Model
|
HKS26G
|
HKS31G
|
HKS26E
|
HKS31E
|
||||
|
Power
|
Gasoline 9HP
(LIFAN, Manual start)
|
Gasoline 15HP
(LIFAN, Manual start)
|
Electric Motor 5.5KW
|
Electric Motor 7.5KW
|
||||
|
Displacement
|
301cc
|
420cc
|
400V 50HZ 3phase
|
400V 50HZ 3phase
|
||||
|
Cutting capacity
|
660*178*2794mm
(26”*7”*110”)
|
790*178*2794mm
(31”*7”*110”)
|
660*178*2794mm
(26”*7”*110”)
|
790*178*2794mm
(31”*7”*110”)
|
||||
|
Frame
|
4pcs
|
4pcs
|
4pcs
|
4pcs
|
||||
|
Blade size
|
3690*34*0.9mm
(145”*1-1/4”*0.035”)
|
3960*34*0.9mm
(156”*1-1/4”*0.035”)
|
3690*34*0.9 mm
(145”*1.25”*0.035”)
|
3960*34*0.9mm
(156”*1-1/4”*0.035”)
|
||||
|
Safe cutting Speed
|
13-15s/m
|
13-15s/m
|
13-15s/m
|
13-15s/m
|
||||
|
Blade speed
|
17m/min
|
17m/min
|
17m/min
|
17m/min
|
||||
|
Distance teeth
|
22mm (0.86”)
|
22mm (0.86”)
|
22mm (0.86”)
|
22mm (0.86”)
|
||||
|
Blade Wheel Dia.
|
480 mm (18.8”)
|
480 mm (18.8”)
|
480 mm (18.8”)
|
480 mm (18.8”)
|
||||
|
Dimension
|
4064*1778*1800mm
(160”*70”*71”)
|
4064*1778*1800mm
(160”*70”*71”)
|
4064*1778*1800mm (160”*70”*71”)
|
4064*1778*1800mm (160”*70”*71”)
|
||||
|
Track size
|
4000x900mm
(157”x35.4”)
|
4000x1030mm
(157”x40.5”)
|
4000x900mm
(157”x35.4”)
|
4000x1030mm
(157”x40.5”)
|
||||
|
Packing
|
2080x570x830mm
|
2150 x570x830mm
|
2080x610x810mm
|
2150 x610x810mm
|
||||
|
Weight
|
315/355kg
|
315/355kg
|
352/380kg
|
352/380kg
|
||||
|
20”/40”HC
|
20pcs / 63pcs
|
20pcs / 63pcs
|
20pcs / 63pcs
|
20pcs / 63pcs
|
||||
HKS Series Sawmill Trailer
Main Features
1.Simple installation, easy operation, labor saving , and high productivity.
2. Manual Operating, Simple , safe and pro-environment.
2. Manual Operating, Simple , safe and pro-environment.
3. The thickness of processing wood can be adjusted according to your requirements, high-precision. 4. High cutting efficiency, smooth; high flatness of the cutting plate; high quality of final
product, great reduce the lost of sawdust.
5. Petrol Engine / Electric Motor power supply.
6. Cutting wood diameter up to 790mm, the max sawing wood length can subject to customer’s requirements.
7. There's no need for the professional sawyers, the ordinary workers can operate the machine expertly.
product, great reduce the lost of sawdust.
5. Petrol Engine / Electric Motor power supply.
6. Cutting wood diameter up to 790mm, the max sawing wood length can subject to customer’s requirements.
7. There's no need for the professional sawyers, the ordinary workers can operate the machine expertly.
product display
Packaging and shipping
Recommend Products
➤
Strict Quality Control
During the Production Process. Strict test processing before shipment.
➤
Fastest Delivery.
Products can be delivered within 15 - 45 days after receive your payment.
➤ Multiple Payment Methods.
We mainly support T/T, L/C, and Western Union, also visa, mastercard, PAYPAL, APPLE PAY, GOOGLE PAY, GC REAL TIME BANK TRANSFER if needed.
➤ Trade Assurance to protect your benefit.
If any quality problems that cannot be resolved, Alibaba or we will refund it first.
➤Strict Package.
Packed in strong fumigated wooden box, also can be packaged according to your requirements.
➤Competitive price with better quality
➤ Professional after-sales service and timely 24 hours after-sale service. Your inquiry will be replied in 8 hours.
➤Optional accessories and many other machines to meet your different requirements.
Products can be delivered within 15 - 45 days after receive your payment.
➤ Multiple Payment Methods.
We mainly support T/T, L/C, and Western Union, also visa, mastercard, PAYPAL, APPLE PAY, GOOGLE PAY, GC REAL TIME BANK TRANSFER if needed.
➤ Trade Assurance to protect your benefit.
If any quality problems that cannot be resolved, Alibaba or we will refund it first.
➤Strict Package.
Packed in strong fumigated wooden box, also can be packaged according to your requirements.
➤Competitive price with better quality
➤ Professional after-sales service and timely 24 hours after-sale service. Your inquiry will be replied in 8 hours.
➤Optional accessories and many other machines to meet your different requirements.
FAQ
Q: Are you a factory or trade company?
A:
We are a group company with 3 factories.
Huike is our brand.
And we can supply one-stop service as a trade company if diverse goods are needed.
Q: Can we visit your factory before order?
A: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at station if needed.
Q: What's the warranty of your products?
A: The warranty time of the machine is one year. During this period, we will send you the replacement for the broken part(not man made) with international express in 7 days.
To meet the demand of customer is our goal. We are standing by for any question of customer. We will make our service fast, efficient and satisfied.
A: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at station if needed.
Q: What's the warranty of your products?
A: The warranty time of the machine is one year. During this period, we will send you the replacement for the broken part(not man made) with international express in 7 days.
To meet the demand of customer is our goal. We are standing by for any question of customer. We will make our service fast, efficient and satisfied.
Q: Is OEM acceptable to your factory?
A: Yes, We have professional engineers and designers. We can provide OEM products, and OEM production is one of our advantages.
A: Yes, We have professional engineers and designers. We can provide OEM products, and OEM production is one of our advantages.
Q: Can you provide custom machine, Yes or No?
A: Yes. We can provide custom machine for clients.
A: Yes. We can provide custom machine for clients.
Q: What's the MOQ?
A: The MOQ is different from 1 set to 50 sets according to machines size and its value. For big size machine MOQ can be 1 set; for small size machine MOQ at least 5 sets.
A: The MOQ is different from 1 set to 50 sets according to machines size and its value. For big size machine MOQ can be 1 set; for small size machine MOQ at least 5 sets.
Q: What's your lead time / delivery time / date for delivery?
A: After receiving your payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.
Q: What's your delivery term?
A: FOB Qingdao China usually, also can be CFR/CIF/DDU/DDP if needed.
A: After receiving your payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.
Q: What's your delivery term?
A: FOB Qingdao China usually, also can be CFR/CIF/DDU/DDP if needed.
Q: Do you have a stock?
A: Sorry, most of our machines don't have stock, we always produce according to order.
Q: Can we buy one sample?
A: Yes, one sample order is welcome.
Q: What's your payment term?
A: Regular 30% initial payment and the balance payment when goods are ready and after inspection before shipment.
A: Sorry, most of our machines don't have stock, we always produce according to order.
Q: Can we buy one sample?
A: Yes, one sample order is welcome.
Q: What's your payment term?
A: Regular 30% initial payment and the balance payment when goods are ready and after inspection before shipment.
However, if total amount is small, we prefer to 100% prepayment to help save bank charges for both of us.
Q: How about your after-sale service?
A: Most questions during operation can be solved with our help with pictures, videos and Instructions. Our engineers are available to service overseas to provide professional online support if needed.
Of course, we can provide overseas service to let our engineer go there, but there will be some costs you should bear. So long as the products purchased from Huike, we will provide parts service no matter in or out of the warranty.
Q: How about your after-sale service?
A: Most questions during operation can be solved with our help with pictures, videos and Instructions. Our engineers are available to service overseas to provide professional online support if needed.
Of course, we can provide overseas service to let our engineer go there, but there will be some costs you should bear. So long as the products purchased from Huike, we will provide parts service no matter in or out of the warranty.
