- Product Details
- {{item.text}}
Quick Details
-
Type:
-
Li-ion
-
Size:
-
65.00(H)x18.4(D) max.
-
Weight:
-
45.0g max.
-
Max. continuous discharge:
-
20A
Quick Details
-
Brand Name:
-
SDI
-
Model Number:
-
INR18650-25R
-
Place of Origin:
-
South Korea
-
Type:
-
Li-ion
-
Size:
-
65.00(H)x18.4(D) max.
-
Weight:
-
45.0g max.
-
Max. continuous discharge:
-
20A
| NO. | Item | Specifications |
| 1 | Nominal Voltage | 3.6V |
| 2 | Nominal Capacity | 2500mAh |
| 3 | Nominal discharge capacity |
Std.2500mAh (0.2C)
Rated: 2450mAh (10A) |
| 4 | Standard charge | CCCV, 1.25A, 4.20 ± 0.05 V, 100mA cut-off |
| 5 | Rapid charge | CCCV, 4A, 4.20 ± 0.05 V, 100mA cut-off |
| 6 | Charging time |
Standard charge : 180min (0.5C)
Rapid charge: 60min (4A) |
| 7 |
Max. continuous discharge
Temperature cut-off 70°C |
20A(at 25°C) End Voltage: 2.5V |
| 8 |
Discharge cut-off voltage
End of discharge |
2.5V
( 2.5V discharge cut-off is better in cycle life ) |
| 9 | Cell weight |
45.0g max. |
| 10 | Cell dimension |
Height : 64.85 ± 0.15 mm
|
| 11 |
Operating temperature
(surface temperature) |
Charge : 0 to 50
|
| 12 |
Storage temperature
(Recovery 90% after storage) |
1.5 year -30~25°C(1*)
|
Note (1): If the cell is kept as ex-factory status (50±5% SOC, 25),
the capacity recovery rate is more than 90%of 10A discharge capacity
100% is1,950mAh at 25with SOC 100% after formation.

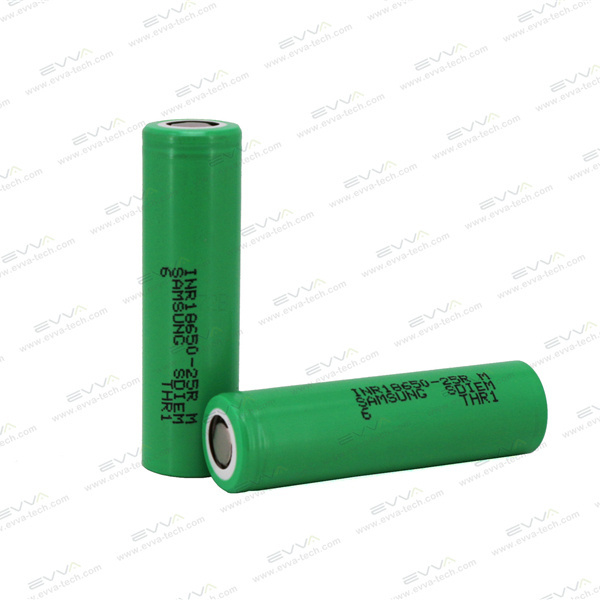

- Genuine Grade A lithium battery cells from Samsung, brand new
- Light weight and high performance with 15A continuous discharge
- Small internal resistance
- High energy density, low self-discharge
- Pollution free, long cycle life
- No memory effect
- Existing stock for short delivery time.
- OEM orders are available (battery pack, battery with spot welding etc.
- UN38.3, IEC62133, CE, ROHS approved
- Applicable to power tools, electric bike, electric vehicle and other high performance electronic devices
Cycle Life
Capacity 0.2C vs 10A
Low Temperature Discharge (10A)
Handling precaution and prohibitions of lithium Ionrechargeable cells and batteries
Inaccurate handling of lithium ion and lithium ion polymer rechargeable battery may cause leakage, heat,
smoke, an explosion, or fire.
This could cause deterioration of performance orfailure. Please be sure to follow instructions carefully.
1.1 Storage
Store the battery at low temperature (below 25°Cis recommended), low humidity, no dust and no
corrosive gas atmosphere.
1.2 Safety precaution and prohibitions
To assure product safety, describe the following precautions in the instruction manual of the
application.
Air: 2-4pcs per small box, and several boxes in one carton. Each carton is less then 10KG according to IATA shipping rules of batteires.
Sea : original packing
Notice: All products of EVVA will be well packaed with strong paper carton and extra protected materials to ensure safe delivery
The cell is not for single use without any protection.
EVVA can assemble OEM battery pack order by using such super cells and our high end self-designed BMS for you.
EVVA will be responsible for replacing the batteries against defects during shipment for 10 days from the date batteires are received by you. Any other problem caused by malfunction of the equipment or mix-use of the batteries is not under this warranty.
