Quick Details
-
Armor Type:
-
Corrugated steel
-
Fiber Type:
-
G.652D
-
Jacket:
-
LSZH PVC PE
-
Certification:
-
CE/ROHS/ISO9001
-
Application:
-
Outdoor Overhead
-
Package:
-
Wodden Drum
-
Color:
-
Black/YELLOW/Customized Color
-
Keyword:
-
48 Core Fiber Optic Cable
Quick Details
-
Brand Name:
-
JQ/OEM
-
Model Number:
-
GYTA33/GYTA53
-
Place of Origin:
-
Guangdong, China, Guangdong, China
-
Armor Type:
-
Corrugated steel
-
Fiber Type:
-
G.652D
-
Jacket:
-
LSZH PVC PE
-
Certification:
-
CE/ROHS/ISO9001
-
Application:
-
Outdoor Overhead
-
Package:
-
Wodden Drum
-
Color:
-
Black/YELLOW/Customized Color
-
Keyword:
-
48 Core Fiber Optic Cable
Products Description
Armored direct buried duct Outdoor Aluminum Corrugated steel tape
G652D 6 12 24 48 96 144 core GYTA33 GYTA53 fiber optic cable

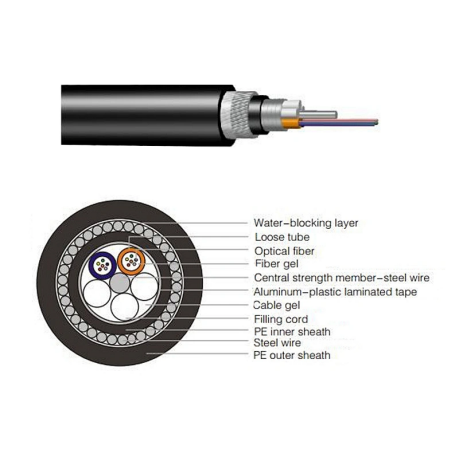

Fiber optic cable GYTA33, 2~72 fibers, central strength member (steel), jelly filled, fiber contained loose tube and pp filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, pe inner sheath, armored by a layer of steel wires, pe outer sheath. G652d sm fiber, detailed specification on your request.GYTA33 is an underwater use fiber optic cable, it is steel wires armored to be suitable for installation in harsh environment, GYTA33 can also be direct buried underground, and this cable is available from 2cores to 144cores.
Application:
■ Adapted to Outdoor distribution.
Characteristics:
■
Steel wire strength filler protect tube fiber steel tape armord.
■
Good ultra violet radiation resistant property.
■
Good moisture-resistance.
Application:
■ Adapted to Outdoor distribution.
■
Long distance and local areanetwork communication.
■
Suitable for aerial .pipeline layingmethod.
|
Product name
|
GYTA53
|
|
No. of Fiber:
|
2-288core
|
|
Brand
|
JQ/OEM
|
|
Fiber Type
|
G652d
|
|
Strength member
|
Steel wire
|
|
Outer Sheath
|
PE Jacket
|
|
Loose tube material
|
PBT
|
|
Strength member: Central
|
Steel Wire or FIberglass reinforced plastic (FRP)
|
|
Package
|
Wooden Drum
|
|
Operating temperature
|
-40~+70
|
|
Filling compound in loose tube
|
Gel
|
|
Application
|
Aerial |
|
Certification
|
ISO9001/ ROHS/ CE/ FCC
|
|
1310nm
|
≤0.34dB
|
|
1550nm
|
≤0.21dB
|
|
Fiber
Count |
Nominal
Diameter (mm) |
Nominal
Weight (kg/km) |
Max Fiber
Per Tube |
Max No.
of(Tubes+ fillers) |
Allowable Tensile
Load(N) |
|
Allowable Crush
Resistance(N/100mm) |
|
||
|
|
|
|
|
|
Short Term
|
Long Term
|
Short Term
|
Long Term
|
||
|
2~36
|
10.3
|
109
|
6
|
6
|
1500
|
600
|
1000
|
300
|
||
|
38~72
|
11.5
|
145
|
12
|
6
|
1500
|
600
|
1000
|
300
|
||
|
74~96
|
13.5
|
175
|
12
|
8
|
1500
|
600
|
1000
|
300
|
||
|
98~120
|
14.8
|
209
|
12
|
10
|
1700
|
600
|
1000
|
300
|
||
|
122~144
|
16.6
|
249
|
12
|
12
|
2000
|
600
|
1000
|
300
|
||
|
146~216
|
16.7
|
254
|
12
|
18(2 layers)
|
2000
|
600
|
1000
|
300
|
||
|
218~288
|
19.0
|
325
|
12
|
24(2 layers)
|
2500
|
600
|
1000
|
300
|
||
Manufacturing Technique
Product packaging
1/2/3/4km or customized length export wooden drum
