Quick Details
-
Color:
-
outdoor full color
-
Panel Size:
-
2240mm x 1280mm, 2240mm x 1280mm
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
ST3SOLARM
-
Specification:
-
Dot pitch:8mm
-
Brightness:
-
≥5500cd/㎡, ≥5500cd/㎡, ≥5500cd/㎡
-
pixel density:
-
40*20dots, 40*20dots
-
Lifespan (hours):
-
100,000hours, 100,000hours
-
IP Rating:
-
65, 65
-
HS Code:
-
8716400000
-
View Angle（H/V）:
-
H:100°V:100°,<0.5mm,<0.5mm, H:100°V:100°,<0.5mm,<0.5mm
-
Usage:
-
Outdoor
-
Pixels:
-
8mm
-
Display Function:
-
Animation and Graphics and Videos
-
Screen Dimension:
-
2240mmx1280mm
-
Lifting:
-
800mm
-
Rotating:
-
330 degree
-
Max speed:
-
120 km/h
-
Fresh rate:
-
3840
-
Breaking:
-
Hand brake
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LED
-
Brand Name:
-
JCT
-
Color:
-
outdoor full color
-
Panel Size:
-
2240mm x 1280mm, 2240mm x 1280mm
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
ST3SOLARM
-
Specification:
-
Dot pitch:8mm
-
Brightness:
-
≥5500cd/㎡, ≥5500cd/㎡, ≥5500cd/㎡
-
pixel density:
-
40*20dots, 40*20dots
-
Lifespan (hours):
-
100,000hours, 100,000hours
-
IP Rating:
-
65, 65
-
HS Code:
-
8716400000
-
View Angle（H/V）:
-
H:100°V:100°,<0.5mm,<0.5mm, H:100°V:100°,<0.5mm,<0.5mm
-
Usage:
-
Outdoor
-
Pixels:
-
8mm
-
Display Function:
-
Animation and Graphics and Videos
-
Screen Dimension:
-
2240mmx1280mm
-
Lifting:
-
800mm
-
Rotating:
-
330 degree
-
Max speed:
-
120 km/h
-
Fresh rate:
-
3840
-
Breaking:
-
Hand brake
Product Description

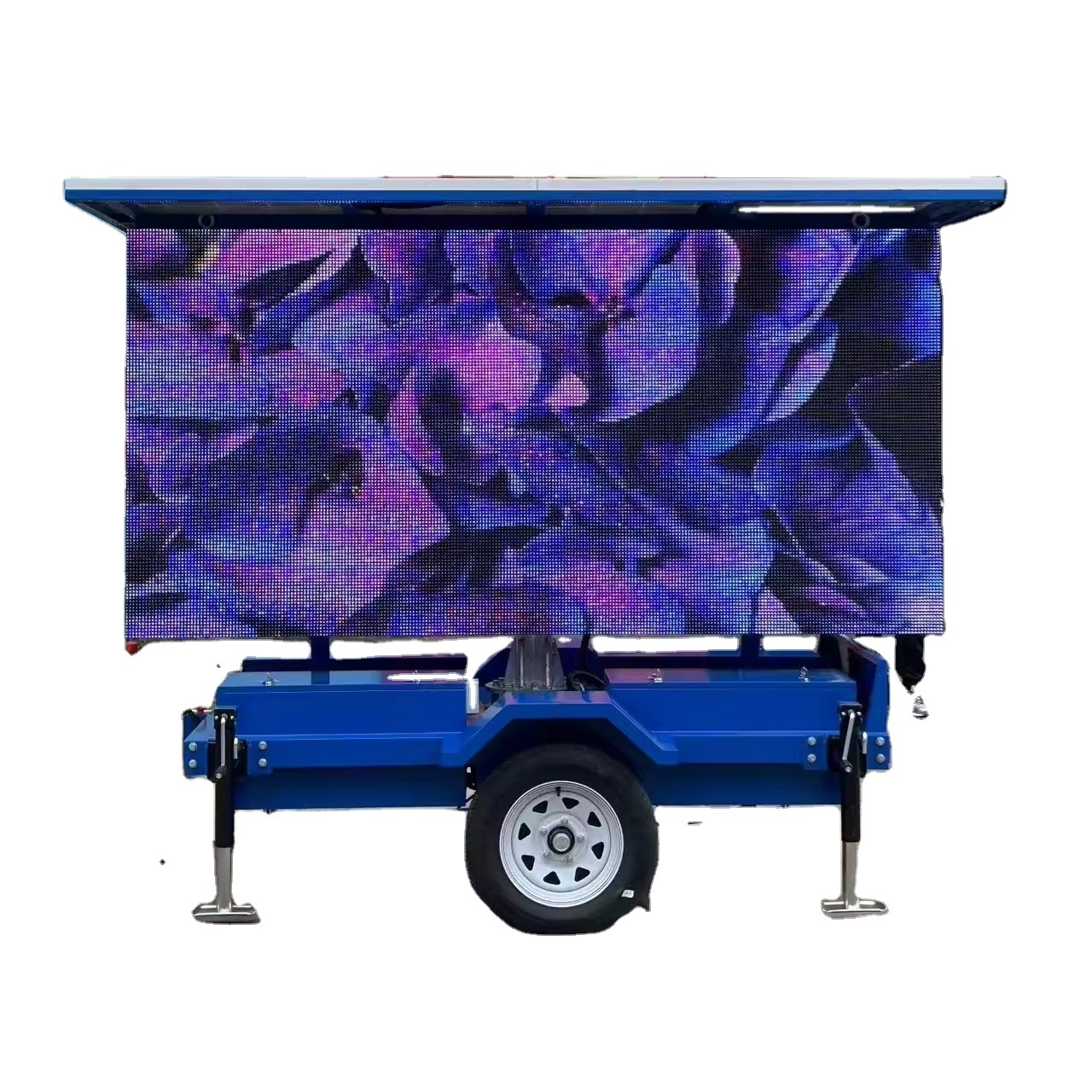

ST3MS Solar Mobile led trailer
The 3㎡ mobile LED trailer (model: ST3) is a small outdoor mobile advertising media vehicle newly launched by JCT Company in
2021.Compared with the 4㎡mobile LED trailer (model: E-F4), ST3 is equipped with energy-saving battery power supply, normal
operation can be guaranteed even when there is no external power supply outdoors; in the area of the LED screen, its size is
2240*1280mm; the size of the vehicle is: 2500×1800×2162mm, which makes it more flexible and convenient to move .
2021.Compared with the 4㎡mobile LED trailer (model: E-F4), ST3 is equipped with energy-saving battery power supply, normal
operation can be guaranteed even when there is no external power supply outdoors; in the area of the LED screen, its size is
2240*1280mm; the size of the vehicle is: 2500×1800×2162mm, which makes it more flexible and convenient to move .
|
Model
|
ST3MS
|
|
|
|||
|
Chassis
|
|
|
|
|||
|
Brand
|
JCT
|
Trailer size
|
2382×1800×2074mm
|
|||
|
Supporting legs
|
4pcs
|
Tire
|
165/70R13
|
|||
|
Max speed
|
120Km/h
|
Brake
|
Hand brake
|
|||
|
LED Screen
|
|
|
|
|||
|
Screen size
|
2240mmx1280mm
|
Dot Pitch
|
8mm
|
|||
|
Module Size
|
320mm(W)*160mm(H)
|
Brightness
|
≥5500cd/㎡
|
|||
|
Max Power
Consumption |
100w/㎡
|
Average Power
Consumption |
30w/㎡
|
|||
|
Lifespan
|
100,000hours
|
|
|
|||
|
Hydraulic lifting System
|
|
|
|
|||
|
Hydraulic Lifting
System |
Lifting Range 800mm
|
|
|
|||
|
Hydraulic Rotating System
|
Screen can be rotated 330degrees
|
|
|
|||
|
Power parameter
|
|
|
|
|||
|
Input Voltage
|
Single phase 220V
|
Output Voltage
|
24V
|
|||
|
Current
|
10A
|
Average power consumption
|
50wh/㎡
|
|||
|
Multimedia Control System
|
|
|
|
|||
|
Player
|
Nova TB30-4G
|
|
|
|||
|
Receiving card
|
Nova-MRV316
|
Luminance sensor
|
NOVA NS060
|
|||
Detailed Images
Our Company
About JCT:
Taizhou Jingchuan Electronics Technology Co.,Ltd,which named Shanghai Jingxiang Advertisement Communication Co.,Ltd ,was founded in 2007.We are the first culture and technology company who specialized in the LED advertising vehicle R&D, production and sales,as well as on-board commercial operation.
R&D SUPPORT:
Products involving mobile LED trucks,mobile LED trailers,mobile LED stage trucks,mobile LED container,mobile LED bus and other customization,total more than 30 models.
Hot Products
FAQ
1. Q: Why should we choose you?
A: Speciality: We focused on developing and producing outdoor LED mobile vehicles since 2007. Already got more than 30 products patents;
B: High-end: We always use the good quality accessories and leading technologies for supporting the best quality;
C: Support best solution: We support customization according to your requirements, so that the vehicles will have high performance cost ratio and best advertising effect!
2. Q: How about your after-sale service:
A: We support you original spare parts. Besides, we can give assistance in the following days by e-mail , telephone, video.
B: 24 months whole vehicle warranty
C: We are looking for the local service in overseas ,it is selected from our customers and developed as our dealers.
3. Q: What's your payment method?
A: T/T 50% deposit paid in advance, 50% of the balance before delivery;
B: LC at sight;
4.Q: Where are you?
A: We and our factory are in Linhai,Taizhou city,it is near from Shanghai/Hangzhou/Ningbo,it is convenient to visit us by train from these cities.
5. Q: Can you provide the ISO9001 certificate or some others related?
A: Yes. We have rich experience for exporting to different countries such as Europe , North & South America, African, Russia and others This helps you importing successfully.
