Quick Details
-
Marketing Type:
-
/
-
Warranty of core components:
-
/
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xilin
-
Weight (KG):
-
950 kg
-
Name:
-
Xilin full electric rider stacker
-
Color:
-
All accepted
-
Operator type:
-
Rider
-
Load capacity:
-
1000kg
-
Lift height:
-
1600mm-5600mm
-
Handle:
-
FREI TIILER HEAD
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
United States, Russia, Malaysia
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 Year
-
Video outgoing-inspection:
-
/
-
Machinery Test Report:
-
/
-
Marketing Type:
-
/
-
Warranty of core components:
-
/
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xilin
-
Weight (KG):
-
950 kg
-
Name:
-
Xilin full electric rider stacker
-
Color:
-
All accepted
-
Operator type:
-
Rider
-
Load capacity:
-
1000kg
-
Lift height:
-
1600mm-5600mm
-
Handle:
-
FREI TIILER HEAD
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
United States, Russia, Malaysia
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
CE

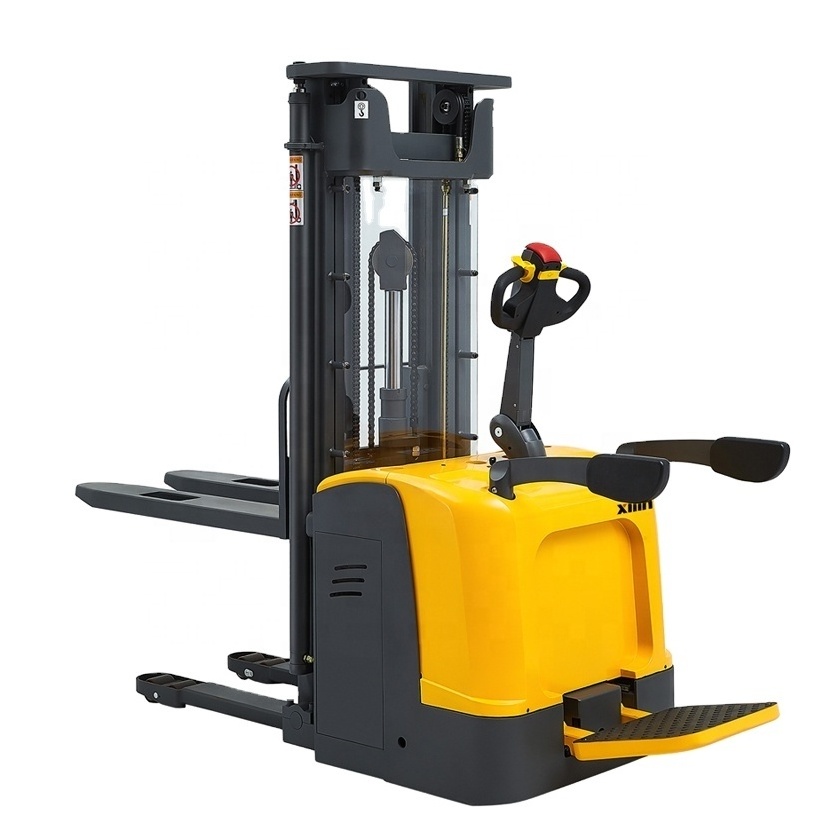

Xilin 1000kg 1200kg 1500kg 1ton 1.2ton 1.5ton capacity 24v battery AC motor electric rider pallet stacker
Safety & Productivity:
AC Motor eliminates replacement of carbon brush.
Multi-function display : battery power, fault code, hour meter and speed level;
Side way battery is easy to maintain.
Damping cushion for low-noise operation;
Emergency reversing device in the handle.
Emergency power disconnect switch.
Turtle-shaped low speed switch.
AC Motor eliminates replacement of carbon brush.
Multi-function display : battery power, fault code, hour meter and speed level;
Side way battery is easy to maintain.
Damping cushion for low-noise operation;
Emergency reversing device in the handle.
Emergency power disconnect switch.
Turtle-shaped low speed switch.
Optimum Structural Design:
Low center of gravity ensures the stable operation.
Vertical drive wheel , small turning radius . The structure of motor is water-proof and dust-proof
The mast and the frame are dividable and exchangeable.
Full free lifting , fit for working in low house.
Serviceability:
Low battery protection setting prolongs the battery use time.
CANbus technology reduces wiring complexity and increase reliability.
Hall element reduces wear components, resulting in increased component life.
Low center of gravity ensures the stable operation.
Vertical drive wheel , small turning radius . The structure of motor is water-proof and dust-proof
The mast and the frame are dividable and exchangeable.
Full free lifting , fit for working in low house.
Serviceability:
Low battery protection setting prolongs the battery use time.
CANbus technology reduces wiring complexity and increase reliability.
Hall element reduces wear components, resulting in increased component life.
|
Model
|
|
CDDK15-I
|
CDDK15-II
|
CDDK10-III
|
CDDK12-III
|
CDDK15-III
|
|||
|
Load capacity
|
Q(kg)
|
1500
|
1500
|
1000
|
1200
|
1500
|
|||
|
Load centre distance
|
c(mm)
|
600
|
600
|
500
|
500
|
600
|
|||
|
Fork height, lowered
|
h13(mm)
|
90
|
90
|
90
|
90
|
90
|
|||
|
Tyre size, front
|
mm
|
Φ250*70
|
Φ250*70
|
Φ250*70
|
Φ250*70
|
Φ250*70
|
|||
|
Tyre size, rear
|
mm
|
Φ80*84
|
Φ80*84
|
Φ80*70
|
Φ80*70
|
Φ80*70
|
|||
|
Height , mast closed
|
h1(mm)
|
1735 - 2410
|
1735 - 2410
|
2087 / 1837 / 2087 / 2237
|
|
|
|||
|
Free lift
|
h2(mm)
|
1300 - 1940
|
1300 - 1940
|
/
|
|
|
|||
|
Max. lift height
|
h3(mm)
|
2500 - 5600
|
2500 - 5600
|
1600 / 2500 / 3000 / 3300
|
|
|
|||
|
Height , mast extended
|
h4(mm)
|
2955 - 6150
|
2955 - 6150
|
2087 / 3087 / 3587 / 3887
|
|
|
|||
|
Overall length
|
l1(mm)
|
2020 / 2100
|
2020 / 2100
|
1955
|
1955
|
2025
|
|||
|
Overall width
|
b1(mm)
|
850
|
850
|
850
|
|
|
|||
|
Fork dims.
|
s*e*l (mm)
|
60*180*1070 (1150)
|
|
60*170*1070 (1150)
|
|
|
|||
|
Width overall forks
|
b5(mm)
|
570 / 695
|
570 / 695
|
580 / 695
|
|
|
|||
|
Aisle width for pallets 800*1200
|
Ast(mm)
|
2515
|
2515
|
2540
|
2540
|
2520
|
|||
|
Turning radius
|
Wa(mm)
|
1655
|
1655
|
1575
|
1575
|
1655
|
|||
|
Travel speed, laden / unladen
|
km/h
|
6.5 / 6.7
|
6.5 / 6.7
|
6.5 / 6.7
|
|
|
|||
|
Lift speed, laden / unladen
|
m/s
|
0.12 / 0.19
|
0.11 / 0.14
|
0.06 / 0.13
|
|
|
|||
|
Lower speed, laden / unladen
|
m/s
|
0.35 / 0.12
|
0.12 / 0.12
|
0.13 / 0.10
|
|
|
|||
|
Battery volts. / cap.
|
v/ah
|
24 / 300
|
24 / 240
|
24 / 120
|
24 / 120
|
24 / 200
|
|||
|
Battery weight
|
kg
|
300
|
220
|
90
|
90
|
160
|
|||
|
Battery dims. ( l*w*h)
|
mm
|
625*254*540
|
675*252*500
|
753*178*240
|
753*178*240
|
800*254*320
|
|||
|
Weight (with battery)
|
kg
|
1240 - 1380
|
1180 - 1320
|
650 - 750
|
660 - 760
|
780 - 850
|
|||
Q1: Are you a factory?
A1 : Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985 , is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
A1 : Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985 , is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
Q2: Can Ruyi provide customized products? OEM products or ODM products?
A2 : Yes, Ruyi can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot of non-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3 : Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately .
Q5: Do you have agent or representative abroad?
A5 : Yes. We have two branches in the US and Russia . We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6 : Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7 : T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8 : 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
A2 : Yes, Ruyi can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot of non-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3 : Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately .
Q5: Do you have agent or representative abroad?
A5 : Yes. We have two branches in the US and Russia . We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6 : Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7 : T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8 : 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
