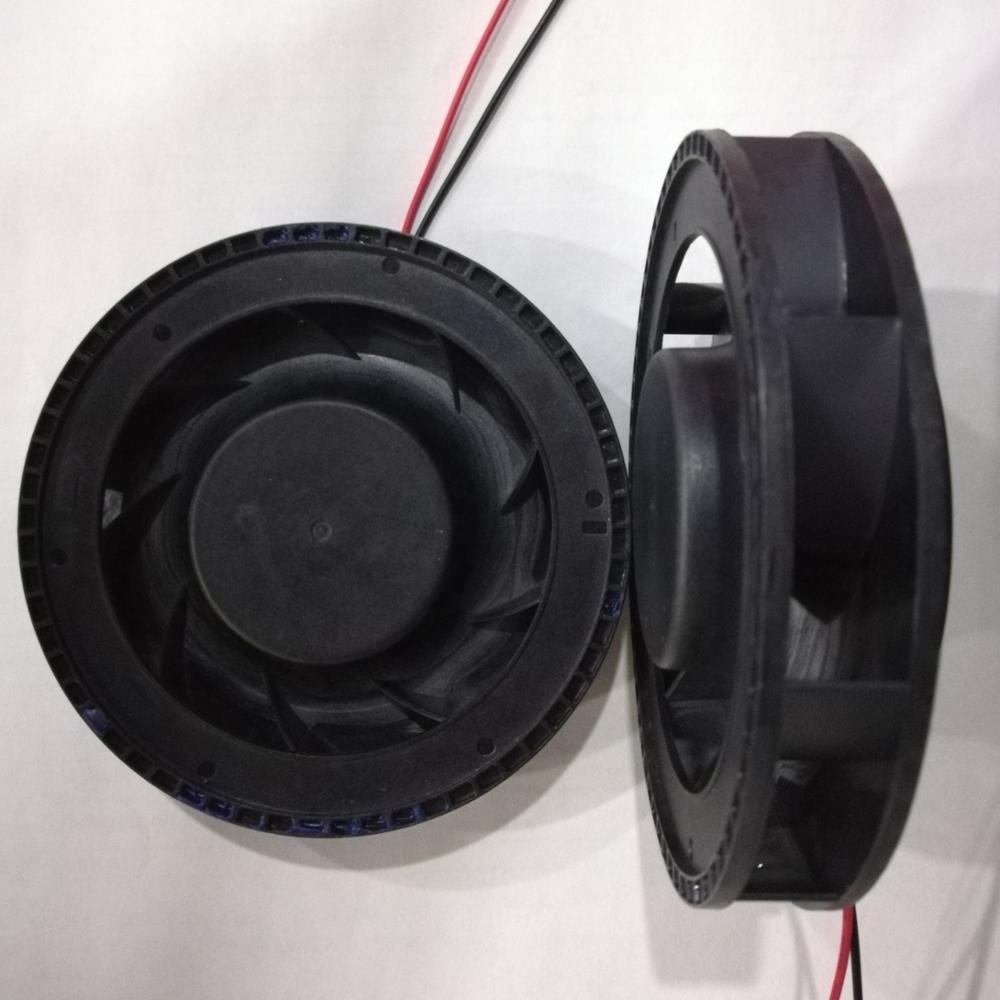

YBL1025B05 100mm 320mA Backward Curved Centrifugal Fan 5v

YBL1025B05 100mm 320mA Backward Curved Centrifugal Fan 5v

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $3.5

≥10000 Pieces

US $2.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shenzhen, China

Brand Name:: YCCFAN

Model Number:: YBL1025B05

Voltage:: 12V

Size:: DIA.100*25MM

Current:: 0.32A

Net Weight:: 125g

Keyword:: backward curved impeller fan

Impeller:: PBT+30%GF

Pressure:: 98.6Pa=10.06mmAq

Item:: industrial centrifugal fan 100X25MM

Bearing:: Ball Bearning

Life time:: 70000hours

Certification:: /TUVUL/CE/CCC/RoHS

Quick Details

Applicable Industries:: Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction works , Energy & Mining, Other

Electric Current Type:: DC

After-sales Service Provided:: Video technical support

Place of Origin:: Shenzhen, China

Brand Name:: YCCFAN

Model Number:: YBL1025B05

Voltage:: 12V

Size:: DIA.100*25MM

Current:: 0.32A

Net Weight:: 125g

Keyword:: backward curved impeller fan

Impeller:: PBT+30%GF

Pressure:: 98.6Pa=10.06mmAq

Item:: industrial centrifugal fan 100X25MM

Bearing:: Ball Bearning

Life time:: 70000hours

Certification:: /TUVUL/CE/CCC/RoHS

YBL1025B05 100mm 320mA backward curved centrifugal fan 5v

Product Description

Below is only for customer's reference , if customer have special request, please feel free to contact us.

SPECIFICATION OF YBL1025B05 (AT Ta= 25 Degree.)
ITEMS	UNIT	PARAMETERS	NOTES
Dimension	mm	*dia.10025mm**	Length* Width *Thickness
Fan Frame	-----	BLACK PBT (UL94V-0)	Glass Fiber Reinforced
Fan Impeller	-----	BLACK PBT (UL94V-0)
Bearing System	S: HYPRO BEARING
Rated Voltage	VDC	5V	N/A
Rated Current	Amp	0.32	At rated Voltage,Measured after 3Mins.
Rated Power	Watt	1.59	At rated Voltage,Measured after 3Mins
Rated Speed	RPM	2500	At 25℃/Relative Humidity 65% At rated Voltage,Measured after 3Mins
Air Flow	CFM	25.75
Air Pressure	mmAq	10.05	Maximum When Air Flow = 0
Noise Level	dBA	40.46
Motor Protection	Polarity Protection	YES
LOCKED MOTOR PROTECTION	AUTO RESTART	YES
Conform to RoHS	-----	Yes
Safety Approval	-----	CE
Lead Wire	UL1007/26AWGx100mm	RED+, BLACK- IF CUSTOMER NEED 3 WIRES OR 4 WIRES, PLEASE CONTACT US FREELY. WE CAN CUSTOMIZE IT.
Life Expectancy	Hours	70,000
Net Weight	Gram	100
Packing	Pieces/Carton	100

Noted:

1) Voltage: Rated DC 5V~48V (according to customer's requirement)

2) If need PWM or FG, please let us know.

3) Please tell us your wanted speed, air flow...we could do OEM service.

4) About Life Expectancy:

At confidence level 90%;Rated Voltage;65% Humidity Environment

Sleeve Bearing System: 30000 Hours At 25℃ Environment

Hypro Bearing System:30000 Hours At 40℃ Environment

CycleSeal Bearing System:40000 Hours At 40℃ Environment

Dual Ball Bearing System:70000 Hours At 40℃ Environment

OTHER DETAILS:

1) Noise Measure

According to Standard ISO3745/GB4214-84,Back ground noise 20±2dBa with room condition.

Measure Condition:

Fan is hanged in anechoic chamber,measured at rated voltage,measure microphone at a distance of one meter from the fan air intake.

2) Suitable Environment:

Operating Temperature ------------------------------------------------------ -10 ~ +70 ℃

Storage Temperature ------------------------------------------------------ -40 ~ +75 ℃

Operating Humidity ----------------------------------------------------- 35% ~ 85%RH

Storage Humidity ----------------------------------------------------- 35% ~ 85%RH

3) Product is in compliance with RoHS 2014/35/EU requirement;

4) About Life Expectancy:

At confidence level 90%;Rated Voltage;65% Humidity Environment

Sleeve Bearing System: 30000 Hours At 25℃ Environment

Hypro Bearing System:30000 Hours At 40℃ Environment

CycleSeal Bearing System:40000 Hours At 40℃ Environment

Dual Ball Bearing System: 50000-70000hours At 40℃ Environment

Packaging & Shipping

Shipping:

1. The fan will be delivered by express ( FedEx, DHL, DHl or TNT ) for under 100 kg, our shipping agnet have perfect discount with these express company.

2. Large Measure are shipped by ship or by air as customer's requirements.

3. The fan can be dispatched by our truck driver if your factory is in Shenzhen, Dongguang or Guangzhou City.
