Quick Details
-
OE NO.:
-
NA
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
XINSENYUE
-
Model Number:
-
TZB-03
-
Protect Level:
-
IP54
-
Letters Version:
-
English, Spanish, Korea, Chinese or OEM
-
Usage:
-
School bus
-
Working voltage:
-
DC 9-36V
-
Current:
-
<2A
-
Warranty:
-
2 years
-
Certificate:
-
ISO 9001:2000
-
Weight:
-
4.5KG
-
Product:
-
Stop for school bus in America
Quick Details
-
Bus Model:
-
YUTONG,
-
Size:
-
Octagon Diagonal 450mm, octagon 450 mm
-
Material:
-
3M reflective film + motor + iron
-
OE NO.:
-
NA
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
XINSENYUE
-
Model Number:
-
TZB-03
-
Protect Level:
-
IP54
-
Letters Version:
-
English, Spanish, Korea, Chinese or OEM
-
Usage:
-
School bus
-
Working voltage:
-
DC 9-36V
-
Current:
-
<2A
-
Warranty:
-
2 years
-
Certificate:
-
ISO 9001:2000
-
Weight:
-
4.5KG
-
Product:
-
Stop for school bus in America
Product Description

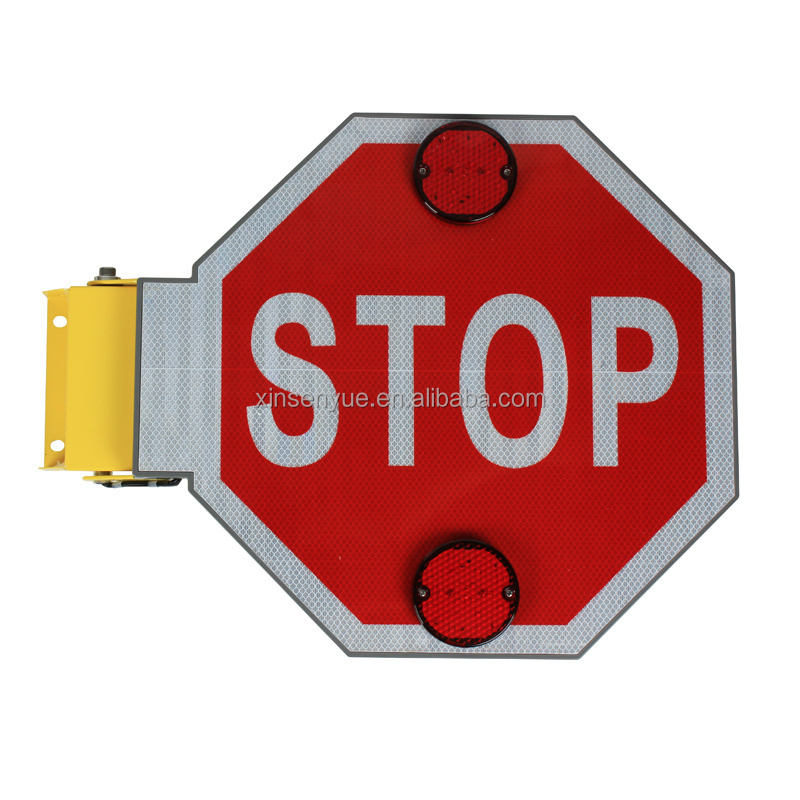

The electric school bus “STOP” arm mechanism to be provided to signal that the bus has stopped to load or discharge the school children. The word “STOP” is written on both front and rear sides. It's installed on the left outside of the bus body and be mounted just below the windows level so as to be seen readily by motorists approaching from either the front or rear of the bus.
Specification
|
Item Name
|
Shool bus stop arm signal board with reflective film led warning light
|
|
Size
|
Circumcircle 450mm
|
|
Type
|
Control arm, electric stop sign or electric stop arm
|
|
Material
|
Aluminum Sheet + reflector sheet + LED light
|
|
Reverse angle
|
90±5 degree
|
|
Cluth moment
|
End 50N
|
|
Voltage
|
DC 9-32V
|
|
Protection Grade
|
IP54
|
|
Package
|
Normally, 2 piece/carton, carton size:63*53*23 cm, weight: 9kg/carton
|
DC motor + worm gear reducer + external gear reduction + fixed torque clutch mechanism.
The clutch torque could be customized according to customer requirements, manual and electric integrated.
The motor adopts waterproof design, and the circuit board is glued to ensure high waterproof reliability. The overall protection
level is IP54.
level is IP54.
Packing & Delivery
1.Two piece stop sign packed by strong carton box with thick poly foam
2.Carton Size: 63cm*53cm*23cm
3.Weight: 9KG per carton
2.Carton Size: 63cm*53cm*23cm
3.Weight: 9KG per carton
Related Product
School bus crossing stop arm, used in Arab countries.
The Spanish word "PARE" on the reflective film, mainly used on South American country's school buses.
School bus crossing arm,mounted on the front bumper of a school bus that when activated extends the arm to require students to
walk at least 10 feet in front of the school bus to cross the roadway. .
walk at least 10 feet in front of the school bus to cross the roadway. .
