Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techfine
-
Model Number:
-
HB-1012
-
Input Voltage:
-
140-275Vac
-
Output Voltage:
-
220Vac±3% for inveter; 195v-240V for avr
-
Output Frequency:
-
45-65Hz
-
Size:
-
300*144*213
-
Certificate:
-
CE/ISO/ROHS
-
Warranty:
-
12Months
-
Weight:
-
8.5kg
-

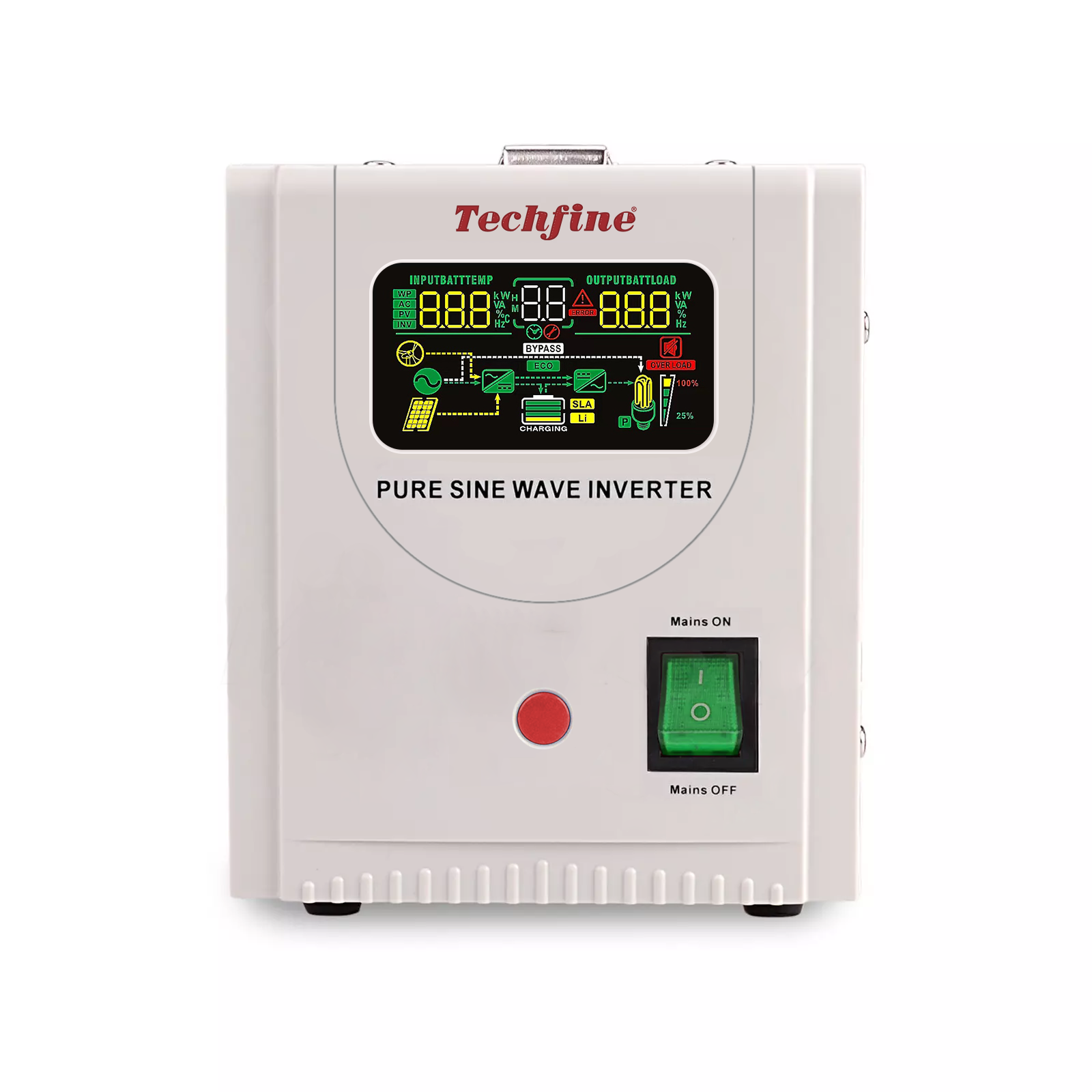

Product name:
-
Off-grid Hybrid Inverter
-
Inverter type:
-
Low Freqnency Transformer Inverter
-
Application:
-
Central heating
-
Protection:
-
overload/high temperature/output high voltage /output low voltage
-
Output waveform:
-
Pure Sine Wave Output
-
Working mode:
-
PV(Photovoltaic priority)/AC(AC priority) optional
-
Interface:
-
LED graphic
-
Transformer:
-
Toroidal transformer
-
Display status:
-
working&loading&battery
-
OEM/ODM:
-
Acceptable
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
≥98%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techfine
-
Model Number:
-
HB-1012
-
Input Voltage:
-
140-275Vac
-
Output Voltage:
-
220Vac±3% for inveter; 195v-240V for avr
-
Output Frequency:
-
45-65Hz
-
Size:
-
300*144*213
-
Certificate:
-
CE/ISO/ROHS
-
Warranty:
-
12Months
-
Weight:
-
8.5kg
-
Product name:
-
Off-grid Hybrid Inverter
-
Inverter type:
-
Low Freqnency Transformer Inverter
-
Application:
-
Central heating
-
Protection:
-
overload/high temperature/output high voltage /output low voltage
-
Output waveform:
-
Pure Sine Wave Output
-
Working mode:
-
PV(Photovoltaic priority)/AC(AC priority) optional
-
Interface:
-
LED graphic
-
Transformer:
-
Toroidal transformer
-
Display status:
-
working&loading&battery
-
OEM/ODM:
-
Acceptable
Products Details
Features：
Pure sine ware output
DC Start & Automatic Self-Diagnostic Function
High Efficiency Design & ”Power Saving Mode” to Conserve Energy
Auto restart when Ac in recovering
Smart battery charger design for optimized battery performance
Selectable charging current based on applications
Auto Restart Voltage
|
Model
|
|
HB-500
|
HB-800
|
HB-1000
|
HB-1500
|
||||
|
Rated Capacity
|
|
500VA
|
800VA
|
1000VA
|
1500VA
|
||||
|
Rated Power
|
|
300W
|
500W
|
700W
|
1050W
|
||||
|
Transformer
|
|
Toroidal transformer
|
|
|
|
||||
|
Interface
|
|
LED graphic
|
|
|
|
||||
|
Display status
|
|
working&loading&battery
|
|
|
|
||||
|
Working mode
|
|
PV(Photovoltaic priority)/AC(AC priority) optional
|
|
|
|
||||
|
Input
|
Voltage
|
140-275Vac
|
|
|
|
||||
|
|
Frequency
|
45-65Hz
|
|
|
|
||||
|
Output
|
Voltage
|
220Vac±3% for inveter; 195v-240V for avr
|
|
|
|
||||
|
|
Frequency
|
50/60Hz ± 0.3Hz, subject to the main
|
|
|
|
||||
|
|
Wave Form
|
Pure sine wave
|
|
|
|
||||
|
|
Wave Distortion
|
≤3%
|
|
|
|
||||
|
Protection
|
|
overload/high temperature/output high voltage /output low voltage/
battery low voltage shortcircuit/over-charge/over-discharge/reversed polarity(optional)
|
|
|
|
||||
|
Transfer Time
|
|
≤4ms
|
|
|
|
||||
|
Battery Voltage
|
|
12VDC
|
12VDC
|
12VDC
|
24VDC
|
||||
|
Charge Voltage
|
|
13.6V±0.3V
|
13.6V±0.3V
|
13.6V±0.3V
|
27.2V±0.6V
|
||||
|
Low Battery Voltage Limit
|
|
10.9V±0.3V
|
10.9V±0.3V
|
10.9V±0.3V
|
21.8V±0.5V
|
||||
|
Protections Battery Low Voltage Protection Point
|
|
10.2V±0.3V
|
10.2V±0.3V
|
10.2V±0.3V
|
20.5V+0.5V
|
||||
|
Charge Current
|
|
Max.10A/15A/20A optional
|
|
|
|
||||
|
Environmental
|
Operating Temperature
|
0~40℃
|
|
|
|
||||
|
|
Relative Humidity
|
10%~90%RH,non-condensing
|
|
|
|
||||
|
|
Storage Temperature
|
-15-45℃
|
|
|
|
||||
|
Packing
|
Machine Size(mm)
|
230x145x180
|
|
337x146x170
|
|
||||
|
|
Qty/Ctn
|
4
|
4
|
2
|
2
|
||||
|
|
Carton Size(mm)
|
785x305x240
|
|
415x410x245
|
|
||||
|
|
CartonG.W.(kg)
|
22
|
26
|
17.2
|
19.1
|
||||
