Quick Details
-
Dimensions:
-
690*717*660mm
-
Use:
-
Soldering paste
-
Weight (KG):
-
80 KG
-
Process range:
-
X 400, Y 400, Z 100mm
-
Laser Power:
-
30-200W
-
Laser wave length:
-
915nm
-
Spot Diameter:
-
0.2-5.0mm
-
Tin wire diameter:
-
0.5-1.5mm
-
Repeat accuracy:
-
±0.02mm
-
Max power:
-
1.5 KW
-
Drive Method:
-
Stepping motor+ Belt+ Precision guide rail
-
Control method:
-
Industrial PC
-
Keyword:
-
Laser Soldering Machines
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Green
-
Dimensions:
-
690*717*660mm
-
Use:
-
Soldering paste
-
Weight (KG):
-
80 KG
-
Process range:
-
X 400, Y 400, Z 100mm
-
Laser Power:
-
30-200W
-
Laser wave length:
-
915nm
-
Spot Diameter:
-
0.2-5.0mm
-
Tin wire diameter:
-
0.5-1.5mm
-
Repeat accuracy:
-
±0.02mm
-
Max power:
-
1.5 KW
-
Drive Method:
-
Stepping motor+ Belt+ Precision guide rail
-
Control method:
-
Industrial PC
-
Keyword:
-
Laser Soldering Machines
Automatic Industrial
equipment

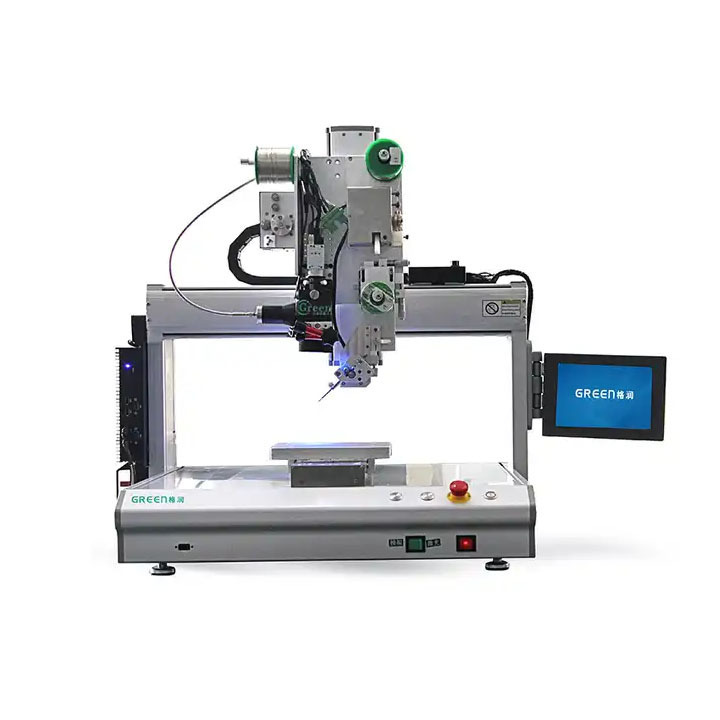

Laser Soldering Machines
Desktop Laser Robot PCB board LED SMT SMD Selective Solder Robot
Products Features
1. Non-contact processing, no stress caused by contact welding;
2. L
aser beam instead of soldering iron, no worry for the
interferences on the workpiece
;
3. Micron level spot, program controlled process time, accuracy much higher than traditional;
4.
Local heating, small heat affected area, less effect on other parts, no
electro-static
;
5. C
lean
working process, less
consumables,
no waste
;
6.
Simple operation and easy maintenance
.
|
Item
|
Specifications
|
|
Model
|
LAW400V
|
|
Process range
|
X 400, Y 400, Z 100mm
|
|
kwywords
|
Laser Soldering Machines
|
|
Control method
|
Industrial PC
|
|
Drive Method
|
Stepping motor+ Belt+ Precision guide rail
|
|
Spot Diameter
|
0.2-5.0mm
|
|
Laser Power
|
30-200W
|
|
Laser wave length
|
915nm
|
|
Max power
|
1.5 KW
|
|
Repeat accuracy
|
±0.02mm
|
|
Power Stability
|
< ±1.0%
|
|
Tin wire diameter
|
0.5-1.5mm
|
Products Details
HD Display Screen
Dynamic running track
display on the screen
, soldering process is more intuitive, software developed based on Windows operating system, high-definition touch screen human-machine interface, even new worker can finish training in short time.
Laser Transmitter
A variety of
options for l
aser transmitter
power range. No matter the solder joints is hiding in the deep, with long shape and large size, or blocked by obstacles, the soldering process could be finished all well.
CCD Camera
Coaxial CCD camera for visually positioning, soldering process more accurate. Effect of the welding spot could be monitored, no
cold solder joint nor
solder skip any more.
Tin breaker
Work with a tin feeder/tin breaker, the tin feed is stable without exploding
High Accurancy
Without direct surface contact, the
soldering process
is completed
precisely
by the program
controlled
processing time.
Easy Operation
Simple operation interface, easy operation and maintenance, short training for new operator.
Application
About Green
Green Intelligent is a national high-tech enterprise focusing on 3C automatic assembly equipment and semiconductor equipment. The company has more than 360 employees, of which 30% are R&D personnel and 40% are engineering and technical personnel.
The company consists of five business sectors: 3C Electronics, New Energy, Semiconductor, Robot and Green Cloud Service Platform. Automatic assembly and visual inspection series including screw fastening, Liquid dispensing, soldering, AOI, SPI equipment, etc; Semiconductor equipment including aluminum wire, copper wire bonding machine.
Our partners
Green Intelligent keeps long term partnership with Luxshare Precision, TCL, BYD, Sunwoda, TDK, ATL, Skyworth, Gree, Midea, Innosilicon Technology, China Resources Microelectronics, Canadian Solar, East Group, and has been preferred supplier of them. Our products are widely used in 3C electronics, new energy, semiconductor, medical, military and other industries.
