- Product Details
- {{item.text}}
Quick Details
-
Inverter Efficiency:
-
95%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sunmart
-
Model Number:
-
MAX 8000-48
-
Input Voltage:
-
90-280VAC
-
Output Voltage:
-
230VAC ± 5%
-
Output Current:
-
35A
-
Output Frequency:
-
50Hz/60Hz (Auto sensing)
-
Size:
-
147.4 x 432.5 x 553.6
-
Certificate:
-
CE,IEC,TUV
-
Warranty:
-
2YEARS
-
Weight:
-
19KG
-
Name:
-
solar inverter 48V 8000 watt
-
Solar Controller Type:
-
MPPT 48V120A
-
Surge power (5 seconds):
-
16000VA
-
Efficiency:
-
93%
-
Waveform:
-
Pure Sine Wave
-
Battery Volatge:
-
48V
-
MAX PV array power:
-
8000W(4000w*2)
-
maximum PV array open circuit voltage:
-
500V
-
MPPT range:
-
90V -450V
-
output power:
-
8000w
Quick Details
-
Output Power:
-
Other
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
95%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sunmart
-
Model Number:
-
MAX 8000-48
-
Input Voltage:
-
90-280VAC
-
Output Voltage:
-
230VAC ± 5%
-
Output Current:
-
35A
-
Output Frequency:
-
50Hz/60Hz (Auto sensing)
-
Size:
-
147.4 x 432.5 x 553.6
-
Certificate:
-
CE,IEC,TUV
-
Warranty:
-
2YEARS
-
Weight:
-
19KG
-
Name:
-
solar inverter 48V 8000 watt
-
Solar Controller Type:
-
MPPT 48V120A
-
Surge power (5 seconds):
-
16000VA
-
Efficiency:
-
93%
-
Waveform:
-
Pure Sine Wave
-
Battery Volatge:
-
48V
-
MAX PV array power:
-
8000W(4000w*2)
-
maximum PV array open circuit voltage:
-
500V
-
MPPT range:
-
90V -450V
-
output power:
-
8000w

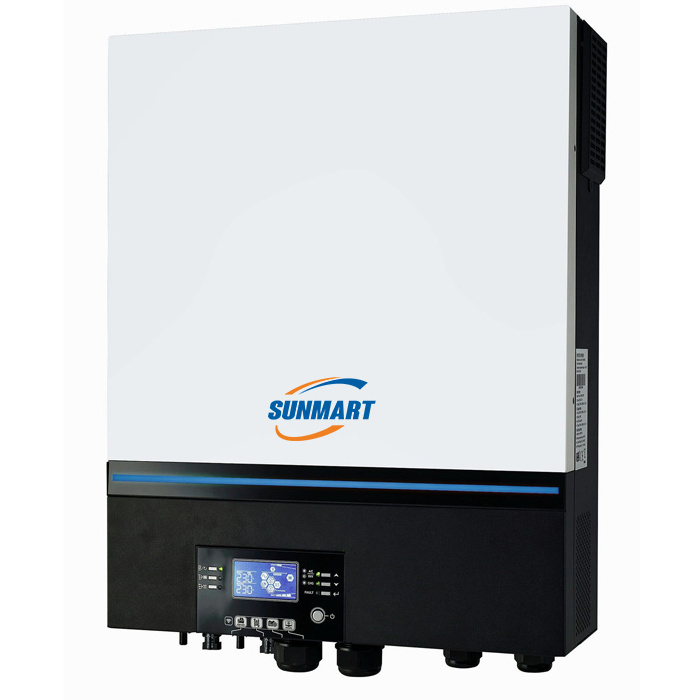

solar inverter 48V 8000 watt efficient integration with renewable energy sources solar Hybrid Inverter two input interfaces
• Customizable status LED bar with RGB lights
• Built-in wifi for mobile monitoring (Android/iOS Apps are available)
• Supports USB On-the-Go function
• Reserved communication port for BMS (RS485, CAN-BUS or RS232)
• Replaceable fan design for ease of maintenance
• Battery independent design
• Configurable AC/PV output usage timer and prioritization
• Selectable high power charging current
• S electable input voltage range for home appliances and personal computers
• Compatible to Utility Mains or generator input
• Built-in anti-dust kit
• Optional DC output for DC fan, LED bulb, router and so on
• Parallel operation up to 6 units
Specifications:
|
MAX 8000-48 |
|
|
RATED POWER |
8000VA/8000W |
|
INPUT |
|
|
Voltage |
230 VAC |
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
|
Frequency Range |
50 Hz/60 Hz (Auto sensing) |
|
OUTPUT |
|
|
AC Voltage Regulation (Batt. Mode) |
230 VAC ± 5% |
|
Surge Power |
15000VA |
|
Efficiency (Peak) PV to INT |
93% |
|
Efficiency(Peak)Battery to INT |
93% |
|
Transfer Time |
15 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
|
Waveform |
Pure sine wave |
|
BATTERY |
|
|
Battery Voltage |
48 VDC |
|
Floating Charge Voltage |
54 VDC |
|
Overcharge Protection |
66VDC |
|
SOLAR CHARGER & AC CHARGER |
|
|
Max. PV Array Open Circuit Voltage |
500VDC |
|
Max. PV Array Power |
8000 W (4000W*2) |
|
MPP Range @operating Voltage |
90~450VDC |
|
Max. Solar Charge Current |
120A |
|
Max. AC Charge Current |
120A |
|
Max. Charge Current |
120A |
|
PHYSICAL |
|
|
Dimension, D x W x H (mm) |
147.4 x 432.5 x 553.6 |
|
Net Weight (kgs) |
18.4 |
|
Communication Interface |
USB/RS232/RS485/Wifi/Dry-contact |
|
ENVIRONMENT |
|
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
Operating Temperature |
-10°C to 50°C |
|
Storage Temperature |
-15°C to 60°C |
Parallel in Single phase :
Parallel in three phase :
Why choose us ?
1 Rich experienced.
We have over 10 years experience in production and installation of solar power system and wind power system products and our products are sold to more than twenty countries in the world. We can send installation team engineers to your location and instruct the system installation.
2 Strong technical support
We have advanced R&D team to customize the system configuration and make sure our product is in stable performance, including solar panel , solar inverter , charge controller etc. Only if you have problem, we will provide professional technical support and solve it by the fastest speed.
3 Good quality, steady operation
Quality and Service are our Culture! With over 10 years new energy experience with two factories (which produce solar panel, inverter and battery), introduced advanced production equipment and specialized production line, adopt international standard management and strict quality control to ensure the stable-performance and high-quality.
4 Competitive price
We are professional manufacturer. We will not guarantee you the cheapest price in China, but we will guarantee you the advantaged competitive product .We will do our best to support our customers to open the market and reach a win-win situation in the end.
5 Fast delivery time.
"Time is gold" We have high-efficiency supply chain and long-term cooperation with shipping company, thus rapid production and fast delivery are assured.
6 Excellent after sales service.
We have professional after sales service engineer team to help you solve any kind of problem:
Solar inverter has 2 years warranty, ship the free PCB by DHL or FEDEX for service. we are not doing one-time business!
