Quick Details
-
Graphic Format Supported:
-
AI, PLT, BMP, Dst, Dwg, LAS
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SunWay
-
Dimension(L*W*H):
-
103*65*42CM
-
Weight (KG):
-
40 KG
-
Product name:
-
SW3020
-
Power supply:
-
220V/50HZ 110V/60HZ
-
Function:
-
Engraving Nonmetal Materials
-
Laser power:
-
40W
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Cutting Speed:
-
0-500mm/s
-
Software:
-
CorelDraw
-
Control Software:
-
M2 Control System
-
After-sales Service Provided:
-
Online support
-
Type:
-
SW3020
Quick Details
-
Engraving Area:
-
300mm*200mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-400mm/s
-
Graphic Format Supported:
-
AI, PLT, BMP, Dst, Dwg, LAS
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SunWay
-
Dimension(L*W*H):
-
103*65*42CM
-
Weight (KG):
-
40 KG
-
Product name:
-
SW3020
-
Power supply:
-
220V/50HZ 110V/60HZ
-
Function:
-
Engraving Nonmetal Materials
-
Laser power:
-
40W
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Cutting Speed:
-
0-500mm/s
-
Software:
-
CorelDraw
-
Control Software:
-
M2 Control System
-
After-sales Service Provided:
-
Online support
-
Type:
-
SW3020
Products Description

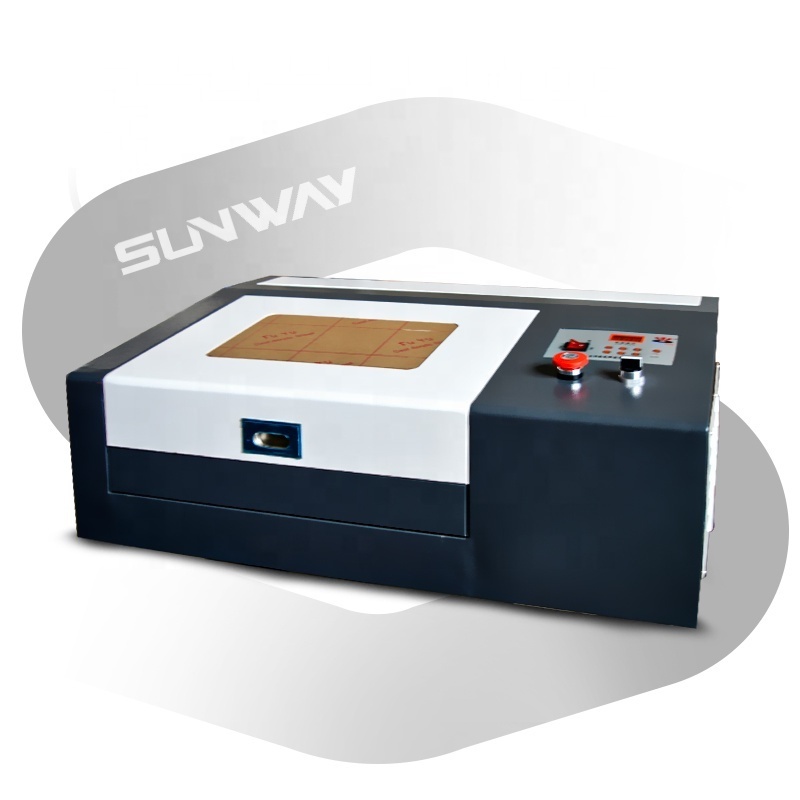

CO2 laser engraving machine is a type of computer numerical controlled nonmetal laser etching system that uses CO2 laser tube to output high-density laser beam for engraving & cutting. CO2 laser engravers are used for wood, fabric, leather, acrylic, plastic,plexiglass, paper, wool, rubber, crystal, ceramic tiles, jade, epoxy resin, bamboo, and more non-metallic materials. It is widely used in crafts making, advertising, decoration, clothing, leather, toys, electronic appliances, computer embroidery and cutting, models, packaging and printing, paper products, and more industries.
Sunway CO2 laser engraving machine is equipped with a precision CO2 laser generator which can engrave on almost any non-metal materials surface. The nonmetal laser engraving machine can also be used for cutting many different materials. With the cylinder rotary attachment, you can engrave any cylindrical object, such as cup, brush pot, musical instrument, and so on. The CO2 laser engraving system supports multiple graphic formats, such as PLT, DXF, BMP, JPG, GIF, PGN, TIF, and so on. The CO2 laser machine is equipped with DSP control system for CorelDraw, AutoCAD, and more professional softwares.The CO2 nonmetal laser engraver is compatible with WIN10, WIN8, WIN7,Windows Vista and Windows XP.

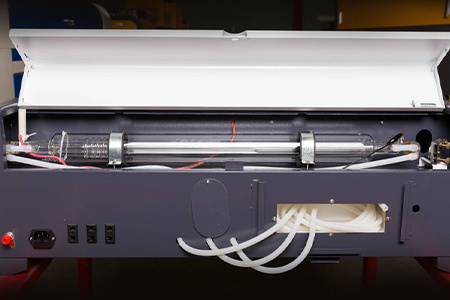

CO2 Laser Tube
Longer service life, more steady.
Higher efficiency, high precision, small facula.
RUIDA offline/M2 Main Board
RUIDA offline, superior control performance. engraving speed. Support engraving and cutting simultaneously. M2 using coreldraw software output.

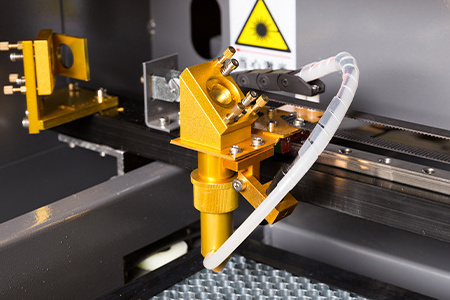

The Lens
Lens use frequently wipe can prolong life.
Linear guide rail with high precision, durable and stable. Not easy to deform.
Parameter Details
CO2 Laser Engraving Machine Features:
1. Automatic focus lens.
2. CO2 sealed laser tube including laser powers of 60 Watts, 80 Watts, 100 Watts, 130 Watts, 150 Watts.
3. Honey comb table or knife table for option.
4. Automatic up and down platform for option.
5. Professional exhauster device and cooling device.
6. Transmit files directly in CorelDraw, AutoCAD, and more softwares.
7. The CO2 laser machine adopts international linear rail with high precision.
8. The CO2 laser machine owns functions of restoring from power off, continuation on break point.
|
Machine Size:
|
800*530*250mm
|
|
Working Area:
|
300*200mm
|
|
Engraving Speed:
|
1-400mm/s
|
|
Cutting Speed:
|
1-50mm/s
|
|
Engraving Thickness:
|
0-2mm(depends on materials)
|
|
Cutting Thickness:
|
0-3mm(depends on materials)
|
|
Water Protechion:
|
Yes
|
|
Positioning Way:
|
Red Light Positioning
|
|
Locating Precision:
|
≤0.01mm
|
|
Work Platform:
|
Honeycomb Platform
|
|
Laser power:
|
40w/50w
|
|
Laser Type:
|
Sealed CO2 Laser Tube
|
|
Cooling Mode:
|
Water Cooling Protection System
|
|
Net Weight:
|
45Kg
|
|
Lift Range:
|
Manual regulation 0-50mm
|
|
Power Supply:
|
AC110-220V/50-60HZ(Custom Made)
|
|
Packaging:
|
Standard Plywood Case
|
|
Certification:
|
CE
|
Optional Configuration
Simple Rotary Axis
Standard Rotary Axis
S & A Water Chiller（
CW-3000/5000
）
Accessories
(Warranty card、Water pump、Base(Four wheels)、USB cable etc.)
Application Industry
Applicable Materials
Wood, acrylic, stone, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass, and other nonmetal materials.
Applicable Industries
Advertisements, gifts, crafts, arts, toys, shoes, computers, model making, garments, building, paper, packaging and printing.
|
Applicable Materials
|
Cutting
|
Engraving
|
|
Acrylic | Plexiglass | PMMA | Perspex
|
√
|
√
|
|
Organic Board | Double Color Sheet
|
√
|
√
|
|
Wood | Plywood | Veneer | MDF | Balsa
|
√
|
√
|
|
Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather
|
√
|
√
|
|
Fabric | Cloth | Textile
|
√
|
√
|
|
Carpet | Mat | Rug | Wool Felt
|
√
|
√
|
|
Paper | Cardboard | Chipboard | Press Board
|
√
|
√
|
|
Ceramic | Tile | Marble | Glass
|
×
|
√
|
|
Plastic
|
√
|
√
|
|
Fiber Glass | Filter Cloth
|
√
|
×
|
|
Coated Metal/Anodized Metal
|
×
|
√
|
|
Cutting thickness of different laser power for reference
|
|
|
|
|||
|
Laser power(W)
|
Acrylic(mm)
|
Plywood(mm)
|
MDF(mm)
|
|||
|
40W
|
3
|
2
|
1.5
|
|||
|
60W
|
8
|
5
|
3
|
|||
|
80W
|
12
|
8
|
6
|
|||
|
100W
|
15
|
12
|
9
|
|||
|
150W
|
25
|
20
|
15
|
|||
*The above data is for reference only.
